AIRERA AGFD-30 EVO 30kW Industrial Oil Injected Screw Air Compressor
AIRERA AGFD-30 EVO 30kW Industrial Oil Injected Screw Air Compressor
AIRERA AGFD-30 EVO 30kW Industrial Oil Injected Screw Air Compressor
AIRERA AGFD-30 EVO 30kW Industrial Oil Injected Screw Air Compressor
AIRERA AGFD-30 EVO 30kW Industrial Oil Injected Screw Air Compressor
AIRERA AGFD-30 EVO 30kW Industrial Oil Injected Screw Air Compressor
AIRERA AGFD-30 EVO 30kW Industrial Oil Injected Screw Air Compressor
AIRERA AGFD-30 EVO 30kW Industrial Oil Injected Screw Air Compressor
AIRERA AGFD-30 EVO 30kW Industrial Oil Injected Screw Air Compressor
AIRERA AGFD-30 EVO 30kW Industrial Oil Injected Screw Air Compressor
Specifications
Brand Name :
AIRERA
Model Number :
AGFD-30
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
520-30,000 USD
Payment Terms :
L/C,T/T
Supply Ability :
2,000-3,000 per month
Description
Product Overview

The AIRERA AGFD-30 EVO is a 30kW industrial oil injected rotary screw air compressor designed for medium sized factories, manufacturing facilities, and continuous production lines that require reliable compressed air supply.

With its compact footprint, low noise operation, and intelligent control system, the AGFD-30 EVO provides a dependable compressed air solution for businesses seeking reliable performance and lower operating costs.

AIRERA AGFD-30 EVO 30kW Industrial Oil Injected Screw Air Compressor

AGFD-VSD series air screw compressor
Hitored wel-krown manutacturer producng quelty screw compressorol fre compresporhigh pressure compressorn So U.CE certhcateswth good prce,5years warany.Pdesign, more energy-saving, reliable compressor system for all kinds of projects.

AIRERA AGFD-30 EVO 30kW Industrial Oil Injected Screw Air Compressor

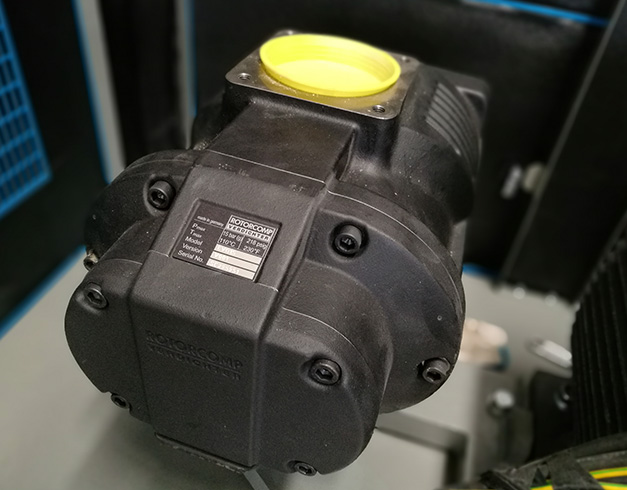

Why to use Evo series German main engine compressor?

Advantages of our new EVO technology

  • New ROLLING PROFILER - ultimate efficiency with reduced noise
  • Long life cycle due to increased bearing dimensions and wear-free ROLLING PROFILER
  • Wide operating pressure range from 5 to 15 barg
  • High manufacturer assembling - "Made in Germany'
  • Quality assurance - bench test of every air end before leaving our factory
  • Easy application selection with our new ROTORCOMP SIZING AIR SoftwareHighest flexibility for your package design
  • Suitable for all types of motors

AIRERA AGFD-30 EVO 30kW Industrial Oil Injected Screw Air Compressor

Technical Parameters

30KW air cooling compressor parameters

ITEM UNIT MODEL
AGFD-30
Free air delivery m3/min 5.0 4.50 3.70 3.25
Max. working pressure MPa 0.8 1.0 1.3 1.5
Compressor type Oil inject screw compressor
Cooling type Air cooling
Driven type Belt driven
Inlet status Temperature ℃ ≤55
Pressure MPa Atmospheric pressure
Relative humidity ≤90%
Noise Level dB(A) ≤72
Residual oil content ppm ≤1
Drive rotor speed rpm 4030 3650 3100 2950
Compressed air outlet temperature ℃ Ambient temperature＋10
Cooling air flow m3/hr 9200
Control mode Intelligent controller
Safety valve set pressure MPa 0.88 1.10 1.43 1.60
Lubricating oil volume L 30
Lubricating oil brand ROTORCOMP
Compressed air outlet connection G1
Dimension L mm 1200
W mm 950
H mm 1300
Net Weight kg 680
Motor Model Y2180L2-2
Speed rpm 2950
Rated Power KW 30
Service factor 1.2
Protection type IP55
Efficiency IE3
Startup mode ʏ-Δ starting
Voltage V 380(Special on request)
Frequency Hz 50(Special on request)
Rated current A 56.9
Weight of motor kg 232

AIRERA AGFD-30 EVO 30kW Industrial Oil Injected Screw Air Compressor

FAQ

Q1: What is the advantage of the EVO series?
The EVO series incorporates enhanced design elements including improved cooling, upgraded components, and optimized performance compared to standard models.

Q2: Is a 30kW compressor suitable for continuous operation?
Yes. The AGFD-30 EVO is designed for continuous industrial operation with reliable components and efficient cooling systems.

Q3: What pressure options are available?
This model can be configured for 8 bar, 10 bar, or 13 bar working pressure based on your application requirements.

Q4: What maintenance does it require?
Routine maintenance includes regular air filter and oil filter changes. The direct drive design eliminates belt replacements, reducing overall maintenance work.

Q5: Can voltage be customized for different countries?
Yes. Voltage and frequency can be customized according to destination country requirements.
