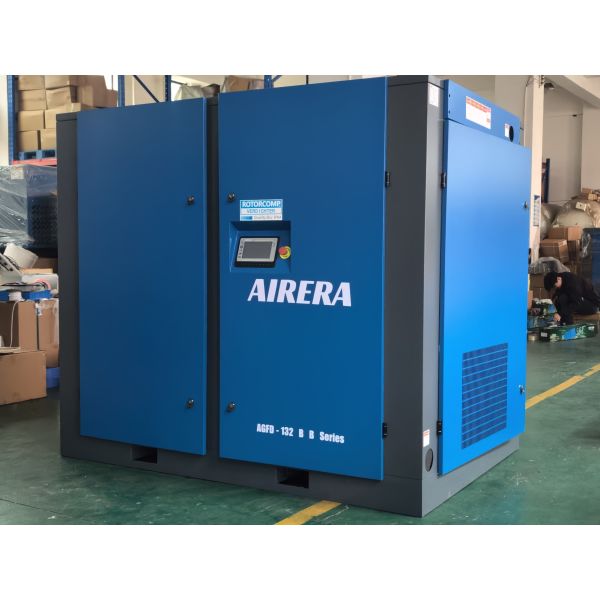

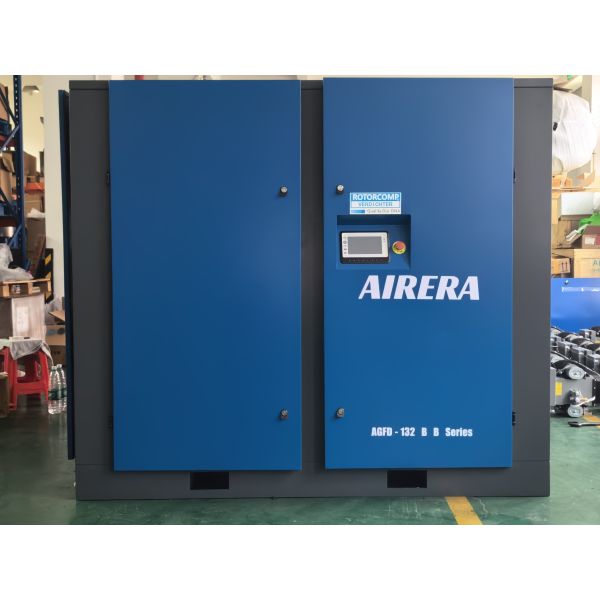

The AIRERA AGFD-132 B B is a 132kW industrial rotary screw air compressor designed to meet the compressed air demands of large manufacturing facilities.
Equipped with a high efficiency screw airend and a direct drive transmission system, the compressor provides stable air delivery and reliable long term performance. The direct drive design improves energy efficiency by minimizing transmission losses and enhancing mechanical stability.
This model is suitable for factories that require continuous compressed air supply for production lines, pneumatic machinery and automated equipment. Its durable structure and efficient cooling system ensure dependable performance under demanding industrial conditions.


| ITEM | UNIT | MODEL | ||||
| AGFD-132 | ||||||
| Free air delivery | m3/min | 23.50 | 21.0 | 18.5 | 16.0 | |
| Max. working pressure | MPa | 0.8 | 1.0 | 1.3 | 1.5 | |
| Compressor type | Oil inject screw compressor | |||||
| Cooling type | Air cooling | |||||
| Driven type | Belt driven | |||||
| Inlet status | Temperature | ℃ | ≤45 | |||
| Pressure | MPa | Atmospheric pressure | ||||
| Relative humidity | ≤90% | |||||
| Noise Level | dB(A) | ≤79 | ||||
| Residual oil content | ppm | ≤1 | ||||
| Drive rotor speed | rpm | 3700 | 3250 | 3150 | 2980 | |
| Compressed air outlet temperature | ℃ | Ambient temperature+10 | ||||
| Cooling air flow | m3/hr | 14200 | ||||
| Control mode | Intelligent controller | |||||
| Safety valve set pressure | MPa | 0.88 | 1.10 | 1.43 | 1.60 | |
| Lubricating oil volume | L | 70 | ||||
| Lubricating oil brand | ROTORCOMP | |||||
| Compressed air outlet connection | G2-1/2 | |||||
| Dimension | L | 1860 | 2350 | |||
| W | 1350 | 1500 | ||||
| H | 1750 | 1760 | ||||
| Net Weight | kg | 1970 | ||||
| Motor | Model | Y280M2-2 | ||||
| Speed | rpm | 2980 | ||||
| Rated Power | KW | 132 | ||||
| Service factor | 1.2 | |||||
| Protection type | IP55 | |||||
| Efficiency | IE3 | |||||
| Startup mode | Y-Δ starting | |||||
| Voltage | V | 380(Special on request) | ||||
| Frequency | Hz | 50(Special on request) | ||||
| Rated current | A | 242 | ||||
| Weight of motor | kg | 1010 | ||||
