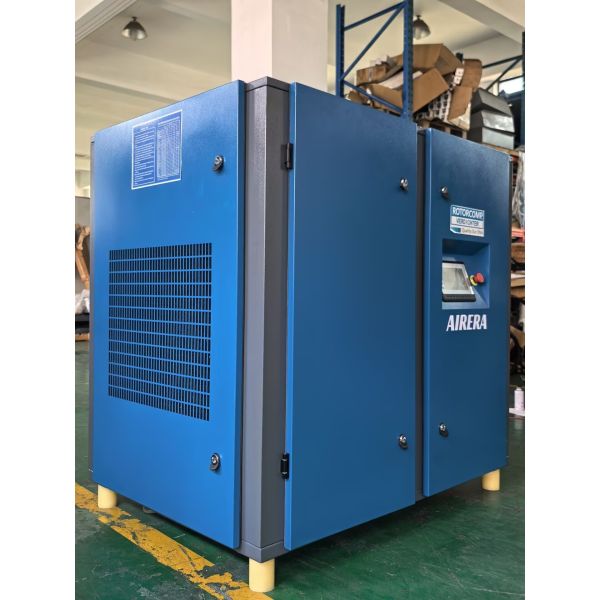

AIRERA AGFD-45 EVO 45kW Industrial Oil Injected Screw Air Compressor
AIRERA AGFD-45 EVO 45kW Industrial Oil Injected Screw Air Compressor
AIRERA AGFD-45 EVO 45kW Industrial Oil Injected Screw Air Compressor
AIRERA AGFD-45 EVO 45kW Industrial Oil Injected Screw Air Compressor
AIRERA AGFD-45 EVO 45kW Industrial Oil Injected Screw Air Compressor
AIRERA AGFD-45 EVO 45kW Industrial Oil Injected Screw Air Compressor
AIRERA AGFD-45 EVO 45kW Industrial Oil Injected Screw Air Compressor
AIRERA AGFD-45 EVO 45kW Industrial Oil Injected Screw Air Compressor
AIRERA AGFD-45 EVO 45kW Industrial Oil Injected Screw Air Compressor
AIRERA AGFD-45 EVO 45kW Industrial Oil Injected Screw Air Compressor
AIRERA AGFD-45 EVO 45kW Industrial Oil Injected Screw Air Compressor
AIRERA AGFD-45 EVO 45kW Industrial Oil Injected Screw Air Compressor
AIRERA AGFD-45 EVO 45kW Industrial Oil Injected Screw Air Compressor
AIRERA AGFD-45 EVO 45kW Industrial Oil Injected Screw Air Compressor
Specifications
Brand Name :
AIRERA
Model Number :
AGCD-45
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
520-30,000 USD
Payment Terms :
T/T,L/C
Supply Ability :
2,000-3,000 per month
Description
Product Overview

The AIRERA AGCD-45 EVO is a 45kW industrial oil injected rotary screw air compressor designed for heavy duty industrial applications that require reliable compressed air supply for continuous operation.

Built for 24/7 operation in industrial environments, the AGFD-45 EVO combines robust construction with intelligent control, making it an ideal choice for large manufacturing plants, metal processing facilities, and other heavy industrial operations.

AIRERA AGFD-45 EVO 45kW Industrial Oil Injected Screw Air Compressor

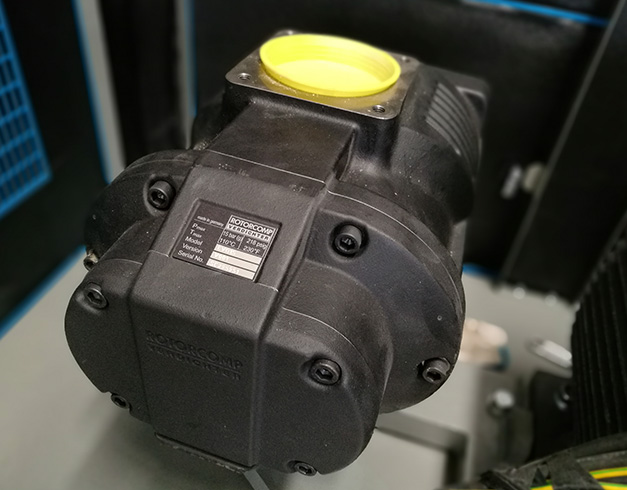

The features of EVO air end:
  • Ultimate efficiency and reduced noise through
  • High volumetric output due to
  • Reduced internal leakage
  • Thermally optimized oil injection system
  • Improved suction port efficiency giving reduced internal losses
  • Optimized torque characteristics and reduced internal friction
  • Improved outlet port with lower pressure losses
  • Reduced noise and low vibration due to
  • Smooth rollina of the rotors with new ROllING PROFll

AIRERA AGFD-45 EVO 45kW Industrial Oil Injected Screw Air Compressor

Key Features

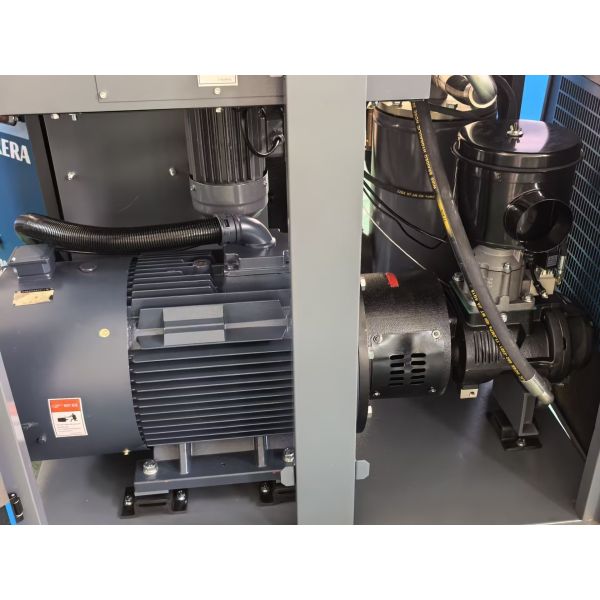

Direct Drive System
Eliminates belts and pulleys for higher transmission efficiency and reduced maintenance requirements.

High Efficiency Screw Airend
Precision engineered rotors provide continuous compressed air with low pulsation and high reliability for heavy duty use.

AGFD-VSD series air screw compressor
Hitored wel-krown manutacturer producng quelty screw compressorol fre compresporhigh pressure compressorn So U.CE certhcateswth good prce,5years warany.Pdesign, more energy-saving, reliable compressor system for all kinds of projects.

AIRERA AGFD-45 EVO 45kW Industrial Oil Injected Screw Air Compressor

Technical Parameters
45KW air cooling compressor parameters
ITEMUNITMODEL
AGFD-45
Free air deliverym3/min7.607.05.85.0
Max. working pressureMPa0.81.01.31.5
Compressor type
Oil inject screw compressor
Cooling type
Air cooling
Driven type
Belt driven
Inlet statusTemperature℃≤55
PressureMPaAtmospheric pressure
Relative humidity
≤90%
Noise LeveldB(A)≤72
Residual oil contentppm≤1
Drive rotor speedrpm5500500044504000
Compressed air outlet temperature℃Ambient temperature＋10
Cooling air flowm3/hr10200
Control mode
Intelligent controller
Safety valve set pressureMPa0.881.101.431.60
Lubricating oil volumeL30
Lubricating oil brand
ROTORCOMP
Compressed air outlet connection
G1-1/4
DimensionLmm1380
Wmm1000
Hmm1300
Net Weightkg1045
MotorModel
Y2200L1-2
Speedrpm2950
Rated PowerKW45
Service factor
1.2
Protection type
IP55
Efficiency
IE3
Startup mode
ʏ-Δ starting
VoltageV380(Special on request)
FrequencyHz50(Special on request)
Rated currentA84
Weight of motorkg312

AIRERA AGFD-45 EVO 45kW Industrial Oil Injected Screw Air Compressor

FAQ

Q1: Is this compressor suitable for continuous 24/7 operation?

Yes. The AGCD-45 EVO is specifically designed for continuous heavy duty industrial operation with robust cooling systems and premium components.

Q2: What is the advantage of the EVO series?

The EVO series incorporates enhanced design elements including improved cooling, upgraded components, and optimized performance compared to standard models.

Q3: What pressure options are available?

This model can be configured for 7 bar, 8 bar, 10 bar, or 13 bar working pressure based on your application requirements.

Q4: What maintenance does it require?

Routine maintenance includes regular air filter, oil filter, and oil separator changes. The direct drive design eliminates belt replacements.

Q5: Can voltage be customized for different countries?

Yes. We can customize voltage and frequency according to local power supply specifications.
