37KW Air-Cooling Oil Inject Screw Compressor
37KW Air-Cooling Oil Inject Screw Compressor
37KW Air-Cooling Oil Inject Screw Compressor
37KW Air-Cooling Oil Inject Screw Compressor
37KW Air-Cooling Oil Inject Screw Compressor
37KW Air-Cooling Oil Inject Screw Compressor
37KW Air-Cooling Oil Inject Screw Compressor
37KW Air-Cooling Oil Inject Screw Compressor
Specifications
Brand Name :
AIRERA
Model Number :
AGCD-37D C
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
TT/LC,Western Union,D/P,D/A
Supply Ability :
2,000-3,000 per month
Delivery Time :
5-15 days
Packaging Details :
wooden case
Cooling air flow（m3/hr） :
9200
Application :
Medical, Pharmaceutical, Food Processing
Oil Content :
Oil inject
Working Pressure :
0.7-1.3Bar
Cooling type :
Air cooling
Driven type :
Direct driven
Description
AIRERA 37kW Air-Cooling Oil-Injected Screw Air Compressor: The "Powerful Heart" of Industrial Production
The AIRERA 37kW (50HP) series is a premium power core engineered for medium-to-large scale manufacturing enterprises seeking ultimate stability and superior energy efficiency. More than just a piece of equipment, it represents the pinnacle of AIRERA’s brand philosophy: "Precision Engineering for Peak Efficiency."
Key System Advantages

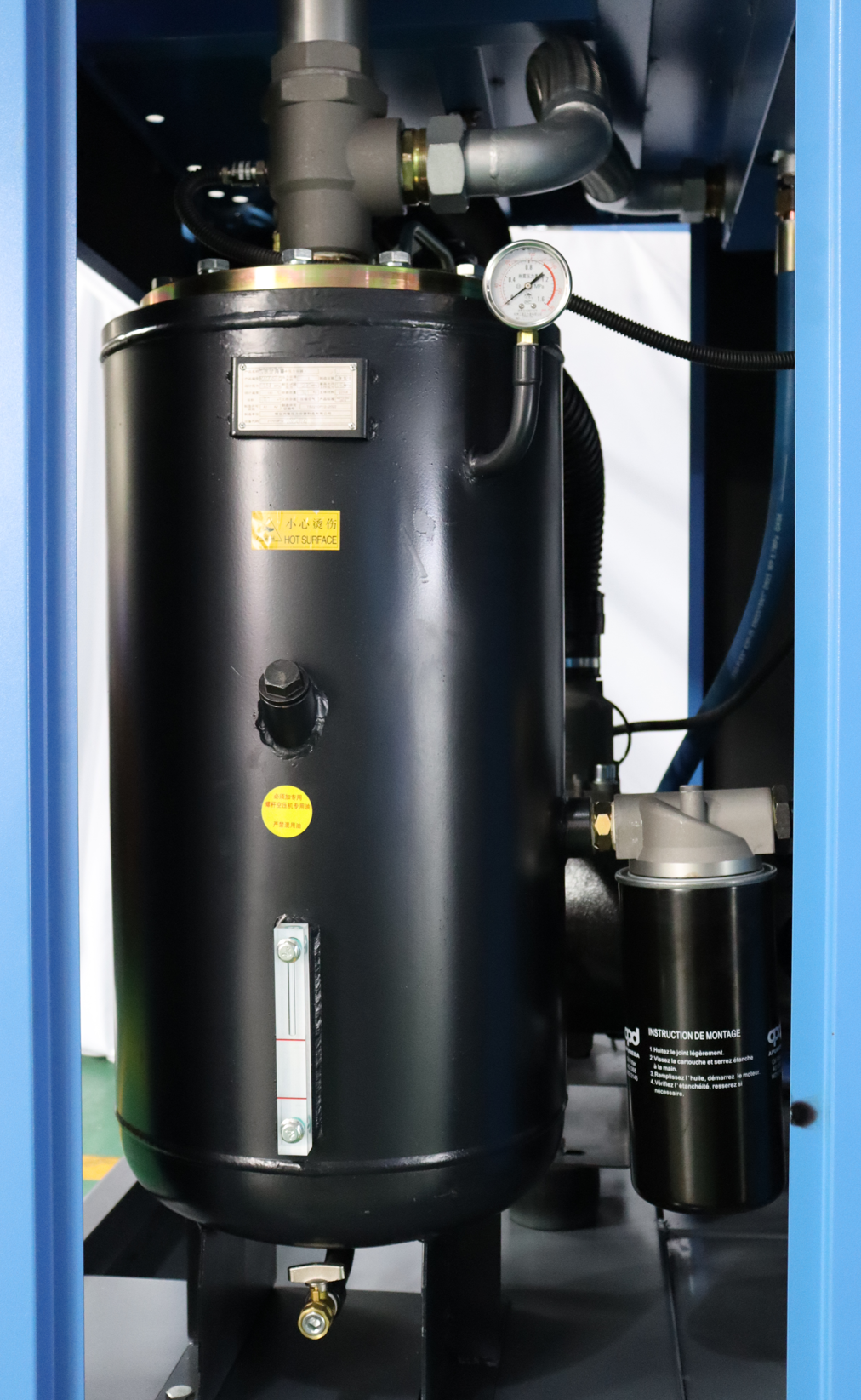

Oil separation system

Compressors up to 132 kW are equipped with external separators that can be changed in a simple spin-off/spin-on process. Larger units have an internal separator cartridge. Due to the excellent separation efficiency of the system as a whole, the compressors can be used in the pressure range of 5.0 to 15.0 bar. Special pressures on request.


37KW Air-Cooling Oil Inject Screw Compressor

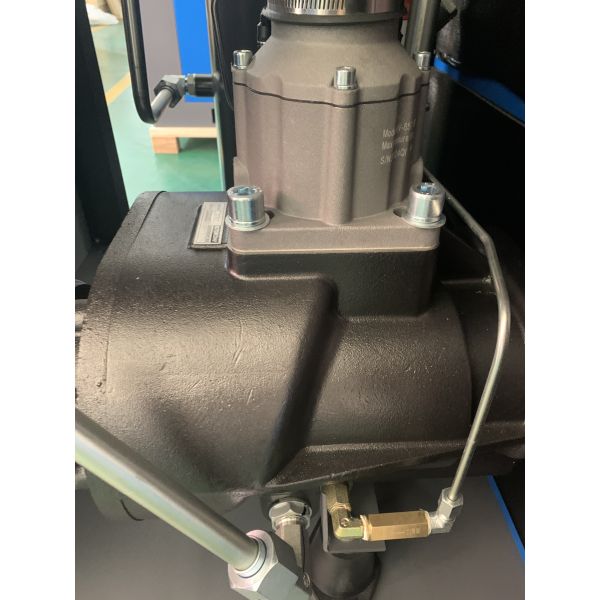

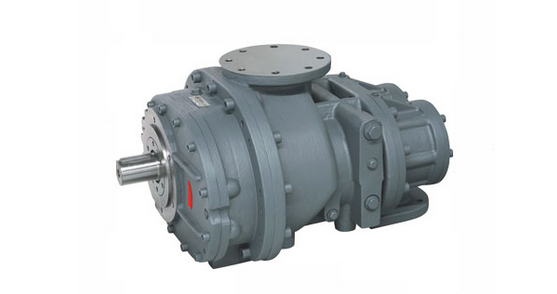

Air end block – reliable centrepiece – Design in Germany

The centrepiece of the compressor is the air end, which is constructed and manufactured with the most modern production methods in Germany. The optimal air end for your compressor can be used on a modulating basis. In frequency-controlled units, where the operating pressure changes, adjustments can also be made on the frequency controller to optimally adjust the speed of the compressor to the compressor performance.


37KW Air-Cooling Oil Inject Screw Compressor

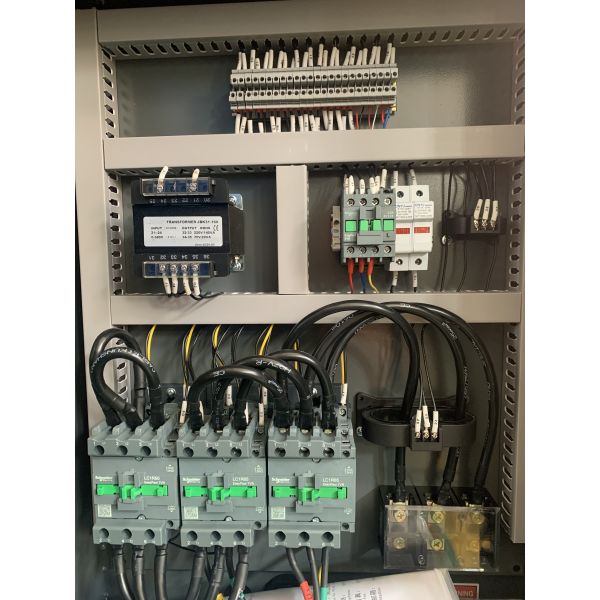

Drives and Electrics
The almost loss-free power transmission guarantees reliable, high-performance compressor operation. The regular maintenance requirement is reduced to lubrication of the motor. All the electronic components are brand products of leading manufacturers.
37KW Air-Cooling Oil Inject Screw Compressor
Technical Specifications - 37kW Air Cooling Compressor
ITEM UNIT MODEL AGCD-37
Free air delivery m³/min 6.7~4.8
Max. working pressure MPa 0.7~1.3
Compressor type
Oil inject screw compressor
Cooling type
Air cooling
Driven type
Direct driven
Inlet status - Temperature ℃ ≤45
Inlet status - Pressure MPa Atmospheric pressure
Inlet status - Relative humidity
≤90%
Noise Level dB(A) ≤72
Residual oil content ppm ≤2
Drive rotor speed rpm 2950
Compressed air outlet temperature ℃ Ambient temperature＋10
Cooling air flow m³/hr 9200
Control mode
Intelligent controller
Safety valve set pressure MPa 0.77 ~ 1.43
Lubricating oil volume L 30
Compressed air outlet connection
G1-1/2
Dimension - L mm 1400
Dimension - W mm 1000
Dimension - H mm 1400
Net Weight kg 785
Motor - Model
Y2180L1-2
Motor - Speed rpm 2950
Motor - Rated Power KW 37
Motor - Service factor
1.2
Motor - Efficiency
IP55
Motor - Startup mode
Y-Δ starting
Motor - Voltage V 380 (Special on request)
Motor - Frequency Hz 50 (Special on request)
Motor - Rated current A 69.8
Motor - Weight of motor kg 250
37KW Air-Cooling Oil Inject Screw CompressorFrequently Asked Questions
Q1: What are the main advantages of the 1:1 Direct Drive in the 37kW model?
A: Unlike belt-driven models, our 1:1 direct drive connects the motor and air-end via a flexible coupling. This eliminates transmission energy loss, reduces vibration, and removes the need for frequent belt adjustments or replacements, leading to higher reliability and lower maintenance costs.
Q2: How much air can the AIRERA 37kW compressor produce per minute?
A: Depending on the pressure setting, the 37kW model delivers approximately 6.2 to 6.8 m³/min (at 0.8Mpa). It is designed to power large-scale pneumatic tools, multiple CNC machines, or complete assembly lines in industries like textiles and packaging.
