45HP 5.8~7.7m3/min Oil Inject Screw Compressor
45HP 5.8~7.7m3/min Oil Inject Screw Compressor
45HP 5.8~7.7m3/min Oil Inject Screw Compressor
45HP 5.8~7.7m3/min Oil Inject Screw Compressor
45HP 5.8~7.7m3/min Oil Inject Screw Compressor
45HP 5.8~7.7m3/min Oil Inject Screw Compressor
45HP 5.8~7.7m3/min Oil Inject Screw Compressor
45HP 5.8~7.7m3/min Oil Inject Screw Compressor
Specifications
Brand Name :
AIRERA
Model Number :
AGCD-45D C
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
TT/LC,Western Union,D/P,D/A
Supply Ability :
2,000-3,000 per month
Delivery Time :
5-15 days
Packaging Details :
wooden case
Cooling air flow（m3/hr） :
9800
Application :
Medical, Pharmaceutical, Food Processing
Oil Content :
Oil inject
Working Pressure :
0.7-1.3Bar
Cooling type :
Air cooling
Driven type :
Direct driven
Description
AIRERA 45HP Oil-Injected Screw Air Compressor: The Efficient Cornerstone of High-Volume Industrial Power
The AIRERA 45HP (33kW) series oil-injected screw air compressor is the "performance benchmark" designed specifically for manufacturing enterprises with rigorous demands for compressed air stability. Delivering a robust output ranging from 5.8 to 7.7 m³/min, it achieves the perfect balance between high-volume displacement and low energy consumption through AIRERA’s leading oil-injection technology and intelligent control systems.
Key System Advantages
Oil separation system

Compressors up to 132 kW are equipped with external separators that can be changed in a simple spin-off/spin-on process. Larger units have an internal separator cartridge. Due to the excellent separation efficiency of the system as a whole, the compressors can be used in the pressure range of 5.0 to 15.0 bar. Special pressures on request.


45HP 5.8~7.7m3/min Oil Inject Screw Compressor

Oil circuit

The amount of oil in the units is determined in such a way as to extend the oil change intervals (depending on ambient conditions). An oil level sensor is integrated as standard and is read by the controller. All the units in this series have a horizontal oil separation vessel in which the oil is separated from the compressed air highly efficiently at low speeds.


45HP 5.8~7.7m3/min Oil Inject Screw Compressor

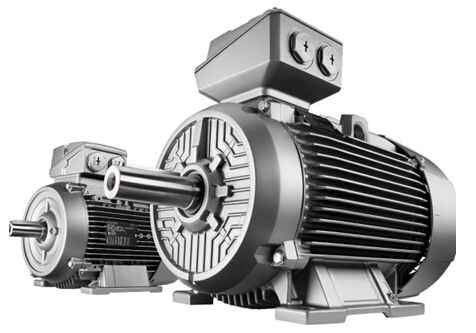

Electric motor

Only electric motors from well-known manufacturers of protection class IP55/IE3&4 are used. As a standard, the drive motors are monitored both thermally (via the thermistor of the motor) as well as electronically (overload protection via the frequency inverter).

45HP 5.8~7.7m3/min Oil Inject Screw Compressor
Technical Specifications - 45kW Air Cooling Compressor
ITEM UNIT MODEL AGCD-45
Free air delivery m³/min 7.7~5.8
Max. working pressure MPa 0.7~1.3
Compressor type
Oil inject screw compressor
Cooling type
Air cooling
Driven type
Direct driven
Inlet status - Temperature ℃ ≤45
Inlet status - Pressure MPa Atmospheric pressure
Inlet status - Relative humidity
≤90%
Noise Level dB(A) ≤72
Residual oil content ppm ≤2
Drive rotor speed rpm 2970
Compressed air outlet temperature ℃ Ambient temperature＋10
Cooling air flow m³/hr 9800
Control mode
Intelligent controller
Safety valve set pressure MPa 0.77 ~ 1.43
Lubricating oil volume L 30
Compressed air outlet connection
G1-1/2
Dimension - L mm 1400
Dimension - W mm 1000
Dimension - H mm 1400
Net Weight kg 820
Motor - Model
Y200L1-2
Motor - Speed rpm 2970
Motor - Rated Power KW 45
Motor - Service factor
1.2
Motor - Efficiency
IP55
Motor - Startup mode
Y-Δ starting
Motor - Voltage V 380 (Special on request)
Motor - Frequency Hz 50 (Special on request)
Motor - Rated current A 84
Motor - Weight of motor kg 312
45HP 5.8~7.7m3/min Oil Inject Screw CompressorFrequently Asked Questions
Q1: What does the "5.8~7.7 m³/min" range mean for my production?
A: This range depends on your working pressure (typically 0.7 to 1.3 Mpa). At a standard 0.8 Mpa, the 45HP model delivers around 6.4-6.6 m³/min, which is ideal for large-scale sandblasting, multiple CNC machining centers, or high-speed automated packaging lines.
Q2: How does the oil-injected system benefit the machine's lifespan?
A: Oil-injection is the "lifeblood" of the AIRERA 45HP. The oil seals the gaps between the screw rotors to prevent air leakage, lubricates the bearings, and most importantly, absorbs the heat of compression. This keeps the internal components cool and friction-free, ensuring the machine lasts for decades, not just years.
