55KW 7.8~10.5m3/min Oil Inject Screw Compressor
55KW 7.8~10.5m3/min Oil Inject Screw Compressor
55KW 7.8~10.5m3/min Oil Inject Screw Compressor
55KW 7.8~10.5m3/min Oil Inject Screw Compressor
55KW 7.8~10.5m3/min Oil Inject Screw Compressor
55KW 7.8~10.5m3/min Oil Inject Screw Compressor
55KW 7.8~10.5m3/min Oil Inject Screw Compressor
55KW 7.8~10.5m3/min Oil Inject Screw Compressor
Specifications
Brand Name :
AIRERA
Model Number :
AGCD-55D C
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
TT/LC,Western Union,D/P,D/A
Supply Ability :
2,000-3,000 per month
Delivery Time :
5-15 days
Packaging Details :
wooden case
Cooling air flow（m3/hr） :
10200
Application :
Medical, Pharmaceutical, Food Processing
Oil Content :
Oil inject
Working Pressure :
0.7-1.3Bar
Cooling type :
Air cooling
Driven type :
Direct driven
Free air delivery :
7.8~10.5m3/min
Description

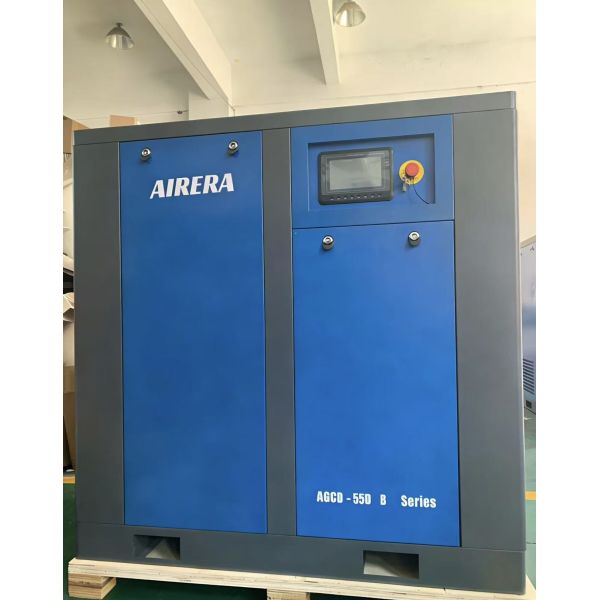

AIRERA 55kW Industrial High-Efficiency Oil-Injected Screw Air Compressor

The AIRERA 55kW Series Air Compressor is a premier power source engineered specifically for industrial production demands that prioritize high stability and superior energy efficiency.By perfectly integrating a robust air delivery range of 7.8–10.5 m³/min with advanced intelligent control technology, this series ensures seamless, 24/7 continuous operation for your production lines while significantly optimizing corporate energy costs.

Key System Advantages

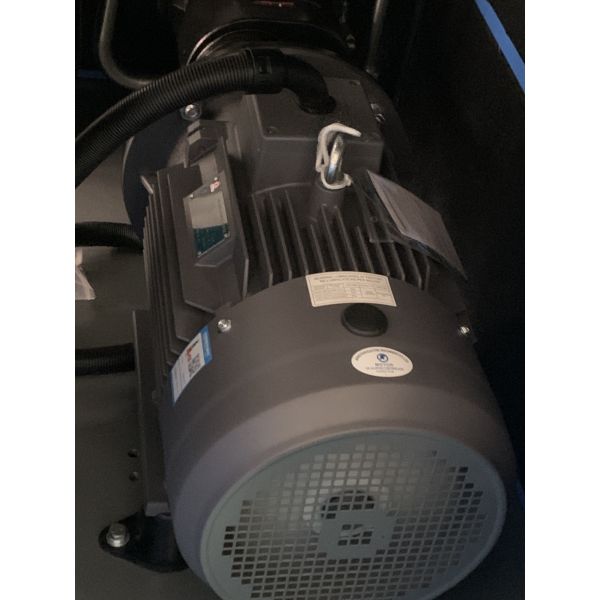

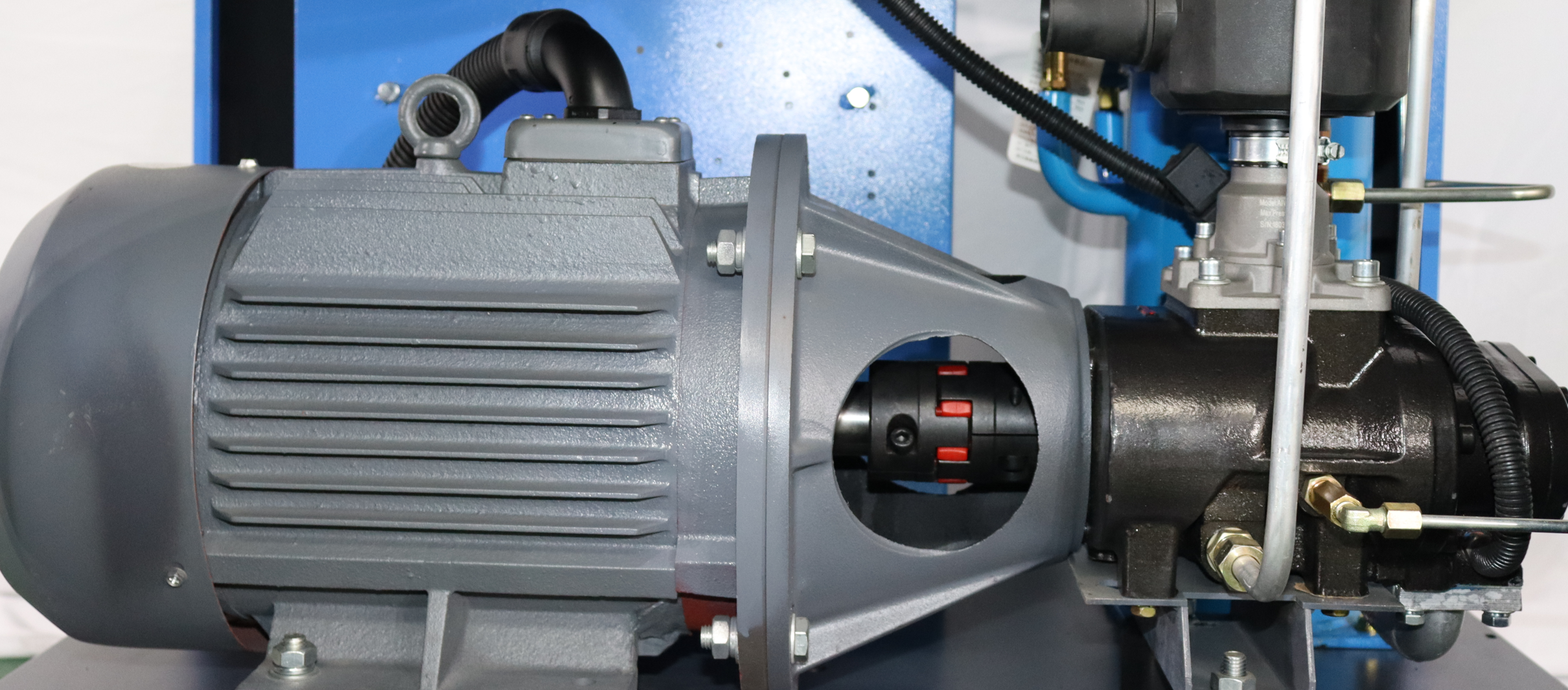

Drives and electrics

The almost loss-free power transmission guarantees reliable, high-performance compressor operation. The regular maintenance requirement is reduced to lubrication of the motor. All the electronic components are brand products of leading manufacturers.


55KW 7.8~10.5m3/min Oil Inject Screw Compressor

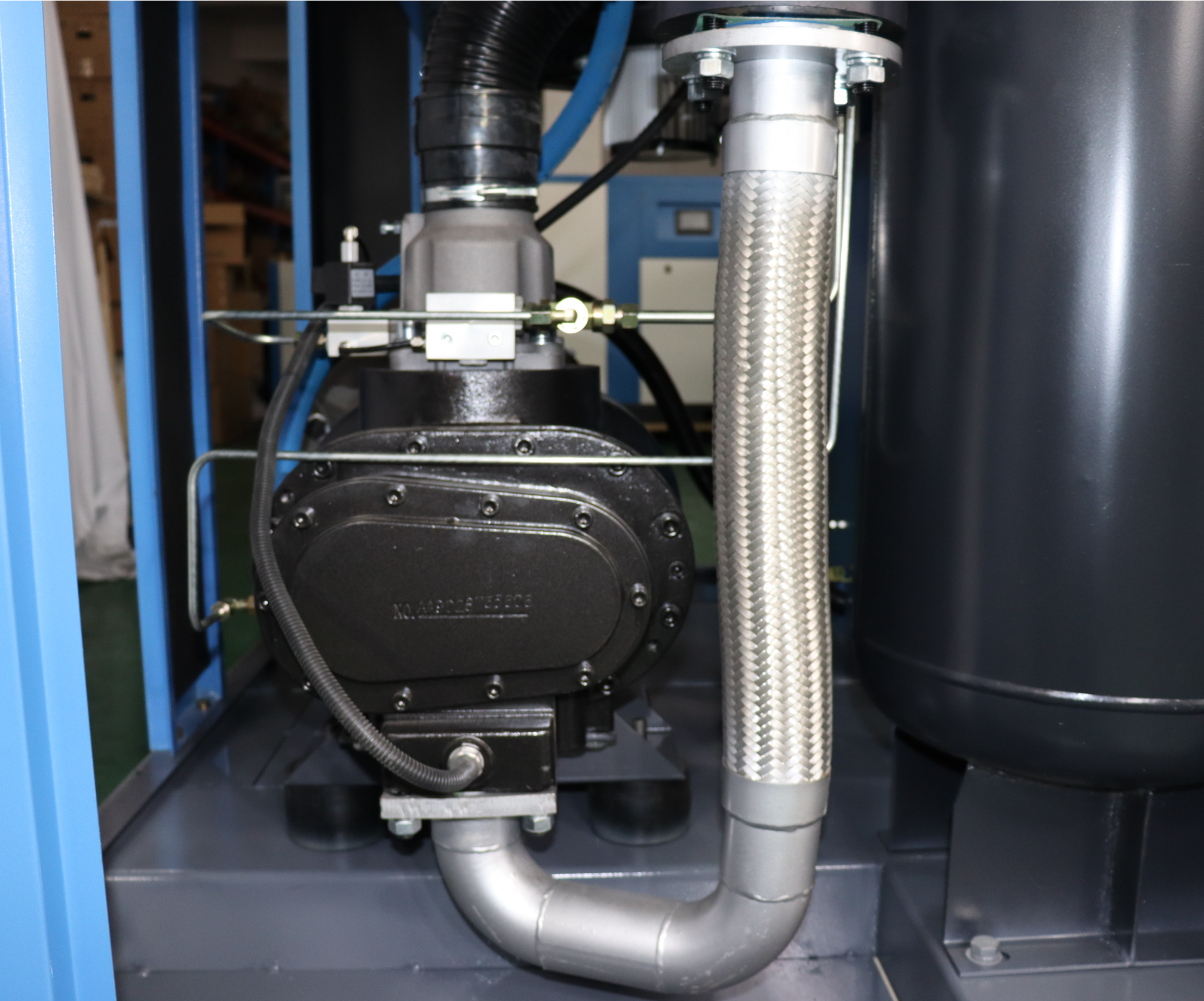

Oil circuit

The amount of oil in the units is determined in such a way as to extend the oil change intervals (depending on ambient conditions). An oil level sensor is integrated as standard and is read by the controller. All the units in this series have a horizontal oil separation vessel in which the oil is separated from the compressed air highly efficiently at low speeds.


55KW 7.8~10.5m3/min Oil Inject Screw Compressor

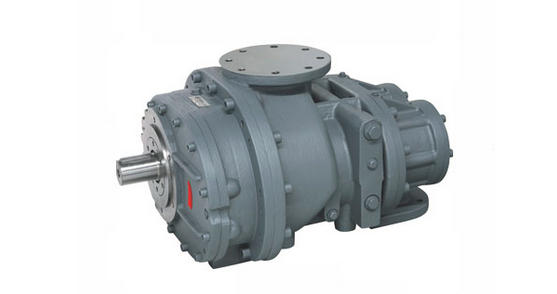

Air end block – reliable centrepiece – Design in Germany

The centrepiece of the compressor is the air end, which is constructed and manufactured with the most modern production methods in Germany. The optimal air end for your compressor can be used on a modulating basis. In frequency-controlled units, where the operating pressure changes, adjustments can also be made on the frequency controller to optimally adjust the speed of the compressor to the compressor performance.

55KW 7.8~10.5m3/min Oil Inject Screw Compressor
Technical Specifications - 55kW Air Cooling Compressor
ITEM UNIT MODEL AGCD-55
Free air delivery m³/min 10.5~7.8
Max. working pressure MPa 0.7~1.3
Compressor type
Oil inject screw compressor
Cooling type
Air cooling
Driven type
Direct driven
Inlet status - Temperature ℃ ≤45
Inlet status - Pressure MPa Atmospheric pressure
Inlet status - Relative humidity
≤90%
Noise Level dB(A) ≤76
Residual oil content ppm ≤2
Drive rotor speed rpm 2970
Compressed air outlet temperature ℃ Ambient temperature＋10
Cooling air flow m³/hr 10200
Control mode
Intelligent controller
Safety valve set pressure MPa 0.77 ~ 1.43
Lubricating oil volume L 50
Compressed air outlet connection
G2
Dimension - L mm 1900
Dimension - W mm 1250
Dimension - H mm 1560
Net Weight kg 1200
Motor - Model
Y2225M-2
Motor - Speed rpm 2970
Motor - Rated Power KW 55
Motor - Service factor
1.2
Motor - Efficiency
IP55
Motor - Startup mode
Y-Δ starting
Motor - Voltage V 380 (Special on request)
Motor - Frequency Hz 50 (Special on request)
Motor - Rated current A 103
Motor - Weight of motor kg 387
55KW 7.8~10.5m3/min Oil Inject Screw CompressorFrequently Asked Questions
Q1: The airflow range is 7.8–10.5 m³/min. How do I choose the right specifications?
A: Airflow depends on your required working pressure. At 1.3 MPa (10 bar), the output is approx 7.8 m³/min; at 0.7 MPa (7 bar), it reaches 10.5 m³/min. AIRERA’s smart controller allows fine-tuning to balance pressure and volume perfectly for your needs.
Q2: Why is AIRERA’s cooling system superior for high-temperature environments?
A: Many compressors trip at 40°C. AIRERA features oversized aluminum coolers and high-efficiency independent fans. Our smart thermal control ensures the oil remains at the optimal temperature even in extreme summer heat, preventing high-temperature shutdowns.
