22HP 0.7~1.3MPa Oil Inject Screw Compressor
22HP 0.7~1.3MPa Oil Inject Screw Compressor
22HP 0.7~1.3MPa Oil Inject Screw Compressor
22HP 0.7~1.3MPa Oil Inject Screw Compressor
22HP 0.7~1.3MPa Oil Inject Screw Compressor
22HP 0.7~1.3MPa Oil Inject Screw Compressor
22HP 0.7~1.3MPa Oil Inject Screw Compressor
22HP 0.7~1.3MPa Oil Inject Screw Compressor
Specifications
Brand Name :
AIRERA
Model Number :
AGCD-22D C
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
TT/LC,Western Union,D/P,D/A
Supply Ability :
2,000-3,000 per month
Delivery Time :
5-15 days
Packaging Details :
wooden case
Cooling air flow（m3/hr） :
7800
Application :
Medical, Pharmaceutical, Food Processing
Oil Content :
Oil inject
Working Pressure :
0.7-1.3Bar
Cooling type :
Air cooling
Driven type :
Direct driven
Description
AIRERA 22HP Oil-Injected Screw Compressor (0.7~1.3MPa)
The AIRERA 22HP series is the ultimate versatile solution for industrial applications requiring stable pressure between 0.7MPa and 1.3MPa. Whether you need standard pneumatic power or high-pressure precision, this compressor delivers consistent airflow with the rugged reliability that defines the AIRERA brand.
Key System Advantages

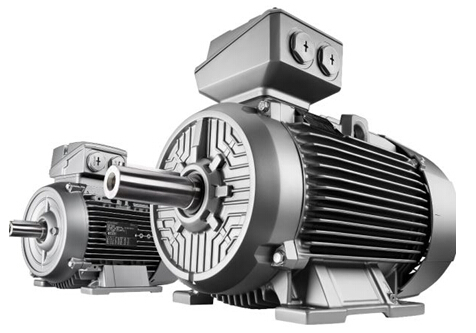

Electric Motor System
Only electric motors from well-known manufacturers of protection class IP55/IE3&4 are used. As a standard, the drive motors are monitored both thermally (via the thermistor of the motor) as well as electronically (overload protection via the frequency inverter).
22HP 0.7~1.3MPa Oil Inject Screw Compressor

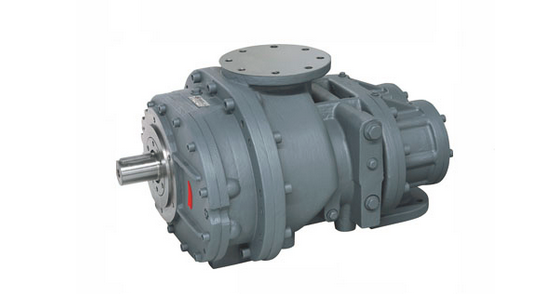

Air End Block - Reliable Centerpiece - Design in Germany
The centerpiece of the compressor is the air end, which is constructed and manufactured with the most modern production methods in Germany. The optimal air end for your compressor can be used on a modulating basis. In frequency-controlled units, where the operating pressure changes, adjustments can also be made on the frequency controller to optimally adjust the speed of the compressor to the compressor performance.
22HP 0.7~1.3MPa Oil Inject Screw Compressor

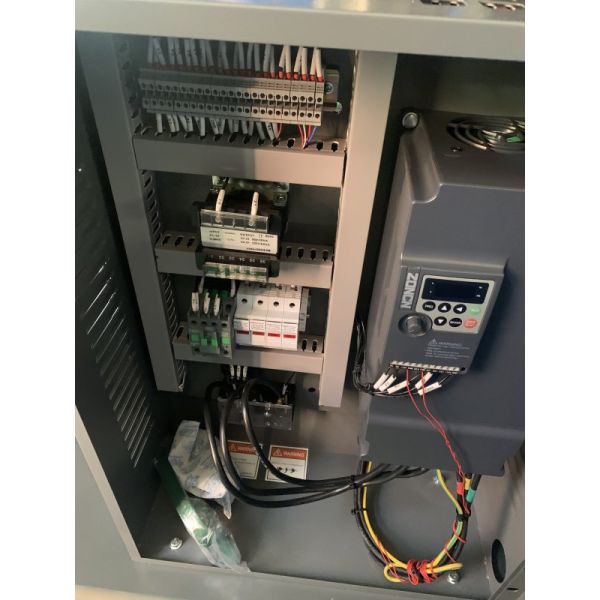

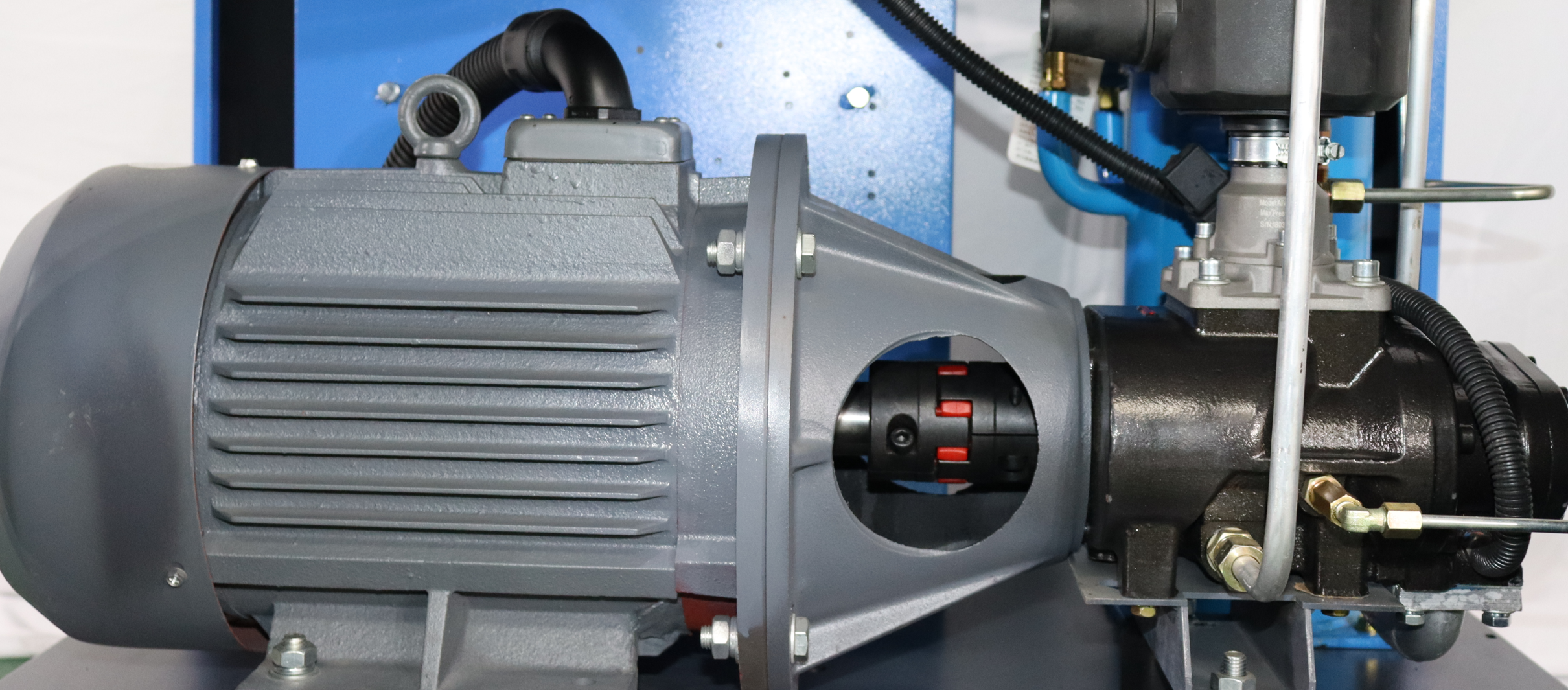

Drives and Electrics
The almost loss-free power transmission guarantees reliable, high-performance compressor operation. The regular maintenance requirement is reduced to lubrication of the motor. All the electronic components are brand products of leading manufacturers.
22HP 0.7~1.3MPa Oil Inject Screw Compressor
Technical Specifications - 22kW Air Cooling Compressor
ITEM UNIT MODEL AGCD-22
Free air delivery m³/min 3.6~2.4
Max. working pressure MPa 0.7~1.3
Compressor type
Oil inject screw compressor
Cooling type
Air cooling
Driven type
Direct driven
Inlet status - Temperature ℃ ≤45
Inlet status - Pressure MPa Atmospheric pressure
Inlet status - Relative humidity
≤90%
Noise Level dB(A) ≤72
Residual oil content ppm ≤2
Drive rotor speed rpm 2940
Compressed air outlet temperature ℃ Ambient temperature＋10
Cooling air flow m³/hr 7800
Control mode
Intelligent controller
Safety valve set pressure MPa 0.77 ~ 1.43
Lubricating oil volume L 15
Compressed air outlet connection
G1
Dimension - L mm 1300
Dimension - W mm 850
Dimension - H mm 1260
Net Weight kg 470
Motor - Model
Y2180M3-2
Motor - Speed rpm 2940
Motor - Rated Power KW 22
Motor - Service factor
1.2
Motor - Efficiency
IP55
Motor - Startup mode
Y-Δ starting
Motor - Voltage V 380 (Special on request)
Motor - Frequency Hz 50 (Special on request)
Motor - Rated current A 42.2
Motor - Weight of motor kg 173
22HP 0.7~1.3MPa Oil Inject Screw Compressor
Frequently Asked Questions

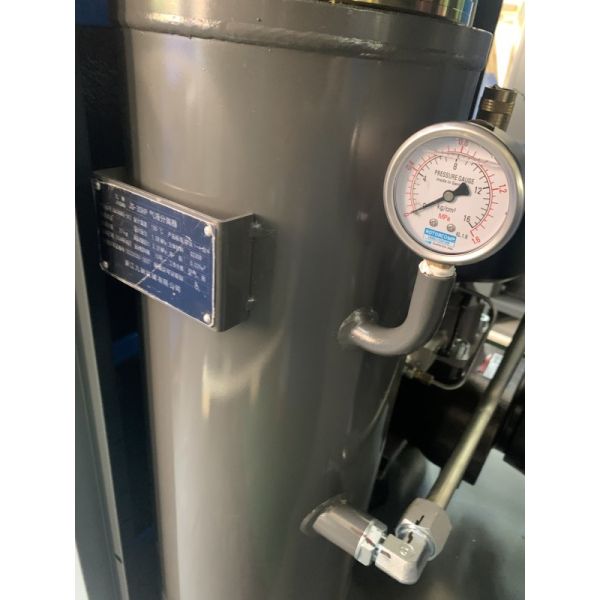

Q1: How is the air-oil separation handled at higher pressures?
A: Higher pressure can challenge standard separators. AIRERA uses a high-efficiency three-stage separation system. This ensures that even at 1.3MPa, the compressed air remains clean with minimal oil carryover (less than 3ppm), protecting your downstream equipment.
Q2: Can I use this machine if my factory currently needs 0.8MPa but might need 1.2MPa in the future?
A: This is the perfect choice for you. The AIRERA 22HP series offers excellent future-proofing. You can run it at 0.8MPa today with high energy efficiency and simply adjust the settings if your process requirements increase in the future.
