15KW air-cooling oil inject screw compressor
15KW air-cooling oil inject screw compressor
15KW air-cooling oil inject screw compressor
15KW air-cooling oil inject screw compressor
15KW air-cooling oil inject screw compressor
15KW air-cooling oil inject screw compressor
15KW air-cooling oil inject screw compressor
15KW air-cooling oil inject screw compressor
Specifications
Brand Name :
AIRERA
Model Number :
AGCD-15D C
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
TT/LC,Western Union,D/P,D/A
Supply Ability :
2,000-3,000 per month
Delivery Time :
5-15 days
Packaging Details :
wooden case
Cooling air flow（m3/hr） :
6300
Application :
Medical, Pharmaceutical, Food Processing
Oil Content :
Oil inject
Working Pressure :
0.7-1.3Bar
Cooling type :
Air cooling
Driven type :
Direct driven
Description
AIRERA 15kW Air-Cooling Oil-Injected Screw Compressor
The AIRERA 15kW series is engineered for industrial excellence, balancing robust power with intelligent efficiency. Designed to withstand 24/7 heavy-duty cycles, this compressor is the heart of your production line, delivering stable, high-quality compressed air with minimal maintenance.
Key System Advantages
Drives and Electrics
The almost loss-free power transmission guarantees reliable, high-performance compressor operation. The regular maintenance requirement is reduced to lubrication of the motor. All electronic components are brand products from leading manufacturers.
15KW air-cooling oil inject screw compressor

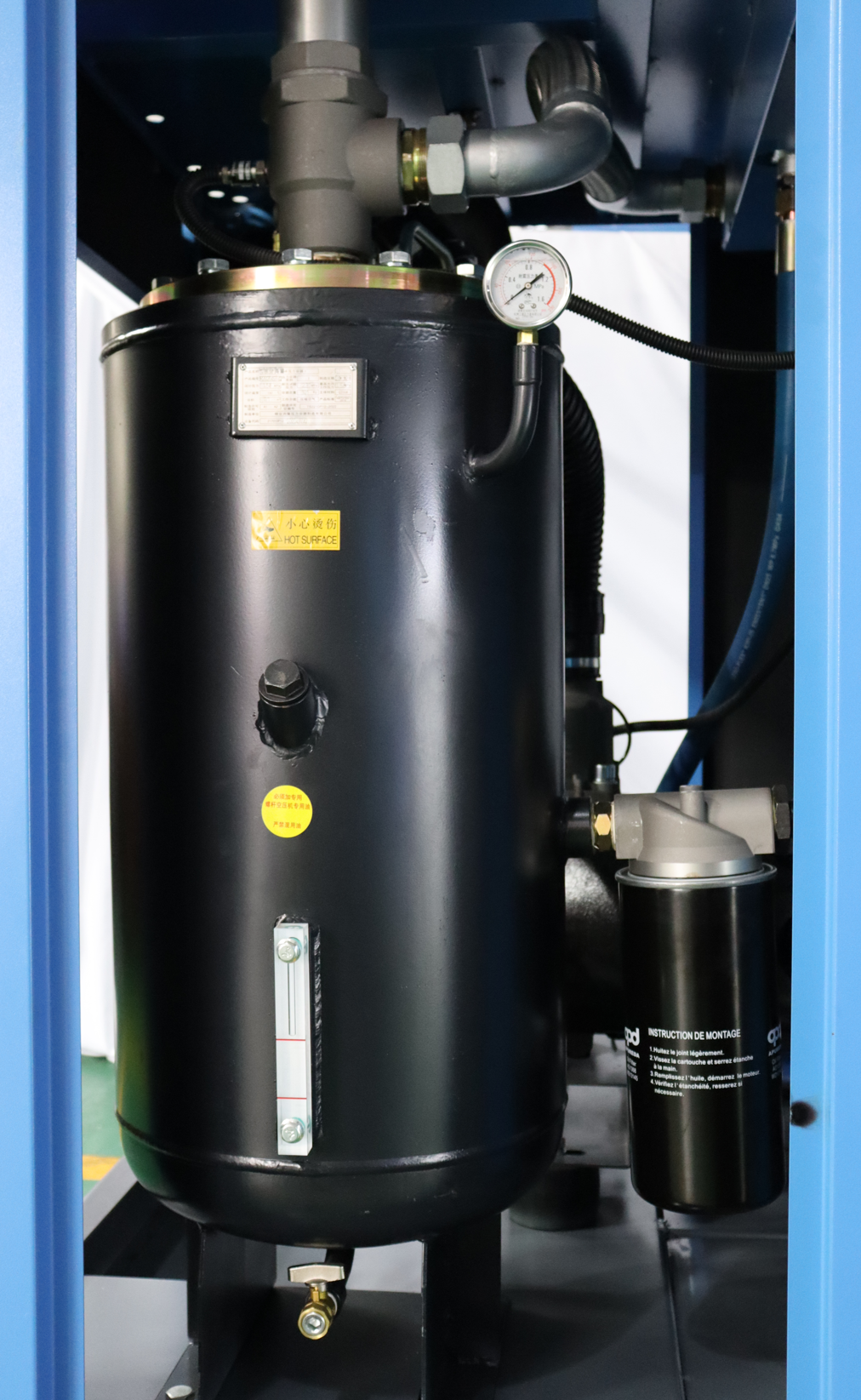

Oil Separation System
Compressors up to 132 kW are equipped with external separators that can be changed in a simple spin-off/spin-on process. Larger units have an internal separator cartridge. Due to the excellent separation efficiency of the system as a whole, the compressors can be used in the pressure range of 5.0 to 15.0 bar. Special pressures available on request.
15KW air-cooling oil inject screw compressor
Oil Circuit
The amount of oil in the units is determined to extend oil change intervals (depending on ambient conditions). An oil level sensor is integrated as standard and is read by the controller. All units in this series have a horizontal oil separation vessel where oil is separated from compressed air highly efficiently at low speeds.
15KW air-cooling oil inject screw compressor
Technical Specifications - 15kW Air Cooling Compressor
ITEM UNIT MODEL AGCD-15
Free air delivery m³/min 2.35~1.65
Max. working pressure MPa 0.7~1.3
Compressor type
Oil inject screw compressor
Cooling type
Air cooling
Driven type
Direct driven
Inlet status - Temperature ℃ ≤45
Inlet status - Pressure MPa Atmospheric pressure
Inlet status - Relative humidity
≤90%
Noise Level dB(A) ≤70
Residual oil content ppm ≤2
Drive rotor speed rpm 2930
Compressed air outlet temperature ℃ Ambient temperature＋10
Cooling air flow m³/hr 6300
Control mode
Intelligent controller
Safety valve set pressure MPa 0.77 ~ 1.43
Lubricating oil volume L 10
Compressed air outlet connection
G1
Dimension - L mm 1080
Dimension - W mm 750
Dimension - H mm 1150
Net Weight kg 350
Motor - Model
Y2160M2-2
Motor - Speed rpm 2930
Motor - Rated Power KW 15
Motor - Service factor
1.2
Motor - Protection type
IP55
Motor - Efficiency
IE3
Motor - Startup mode
Y-Δ starting
Motor - Voltage V 380 (Special on request)
Motor - Frequency Hz 50 (Special on request)
Motor - Rated current A 29.4
Motor - Weight of motor kg 125
15KW air-cooling oil inject screw compressor
Frequently Asked Questions
Why should I choose a 15kW screw compressor over a piston compressor?
Compared to traditional piston compressors, the AIRERA 15kW screw model offers significant advantages:

Continuous Operation: Supports 100% duty cycle for non-stop performance without overheating.
High-Quality Air: Precision oil-injection combined with multi-stage separation ensures extremely low oil carryover.
Low Noise: The fully enclosed cabinet design keeps noise levels far below those of piston units, allowing for installation directly on the shop floor.
Is the daily maintenance of this machine complicated?
It is designed for simplicity. We utilize a modular and spin-on design:

The air filter, oil filter, and oil-gas separator can be easily replaced just like a car's oil filter.
The wide-opening side doors provide clear internal access, allowing even non-professional staff to complete basic maintenance in minutes.
What safety protection features does the smart controller include?
The AIRERA PLC intelligent control system provides comprehensive protection, including:

Over-temperature/Over-pressure Protection: Automatic alarm and shutdown during abnormalities.
Motor Overload Protection: Prevents motor damage caused by unstable currents.
Phase Reverse/Phase Loss Protection: Ensures the unit won't run in reverse if wired incorrectly.
