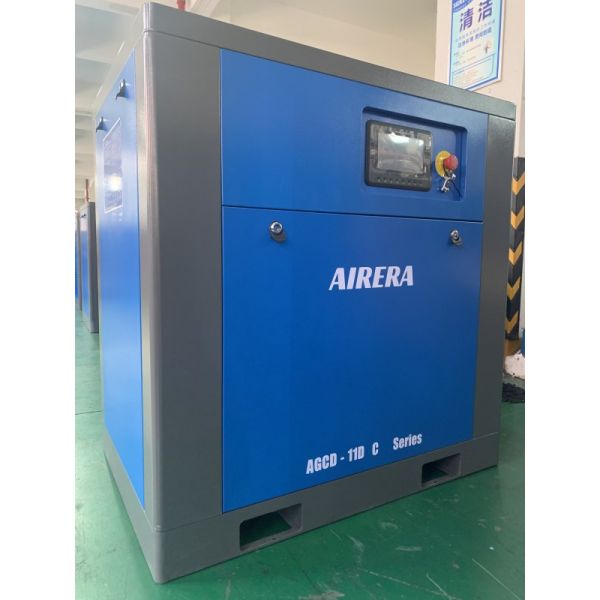

11KW 0.7-1.3MPa air-cooling oil inject screw compressor
11KW 0.7-1.3MPa air-cooling oil inject screw compressor
11KW 0.7-1.3MPa air-cooling oil inject screw compressor
11KW 0.7-1.3MPa air-cooling oil inject screw compressor
11KW 0.7-1.3MPa air-cooling oil inject screw compressor
11KW 0.7-1.3MPa air-cooling oil inject screw compressor
11KW 0.7-1.3MPa air-cooling oil inject screw compressor
11KW 0.7-1.3MPa air-cooling oil inject screw compressor
Specifications
Brand Name :
AIRERA
Model Number :
AGCD-11D C
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
TT/LC,Western Union,D/P,D/A
Supply Ability :
2,000-3,000 per month
Delivery Time :
5-15 days
Packaging Details :
wooden case
Cooling air flow（m3/hr） :
5380
Application :
Medical, Pharmaceutical, Food Processing
Oil Content :
Oil inject
Working Pressure :
0.7-1.3Bar
Cooling type :
Air cooling
Driven type :
Direct driven
Description
AIRERA | 11kW Industrial High-Performance Oil-Injected Screw Compressor
Peak Power, Rock-Solid Stability: 0.7 -1.3MPa Heavy-Duty Series
To meet the demands of multi-station high-load operations and precision manufacturing, the AIRERA 11kW (15HP) Series is the "Performance Beast" your facility deserves. It delivers not only high Free Air Delivery (FAD) but also industry-leading energy efficiency, making it the premier choice for modern factory upgrades.
Key System Advantages

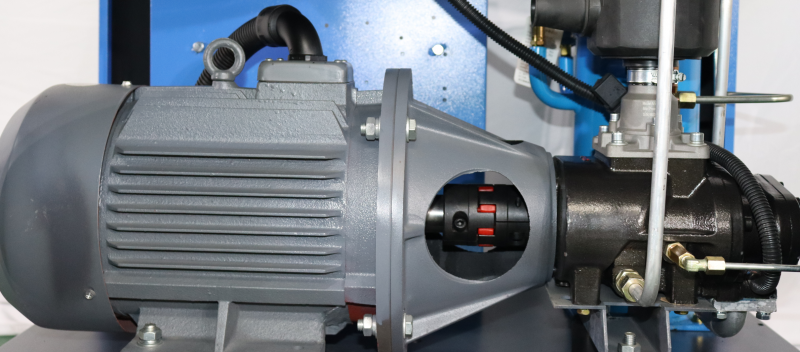

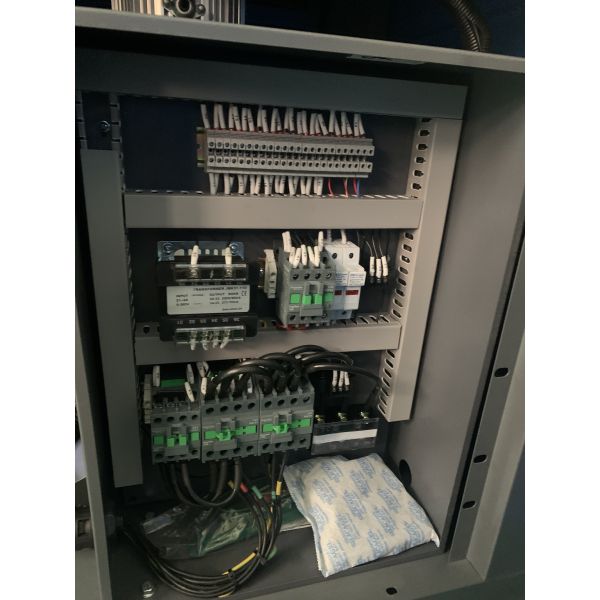

Drives and Electrics
The almost loss-free power transmission guarantees reliable, high-performance compressor operation. The regular maintenance requirement is reduced to lubrication of the motor. All the electronic components are brand products of leading manufacturers.
11KW 0.7-1.3MPa air-cooling oil inject screw compressor

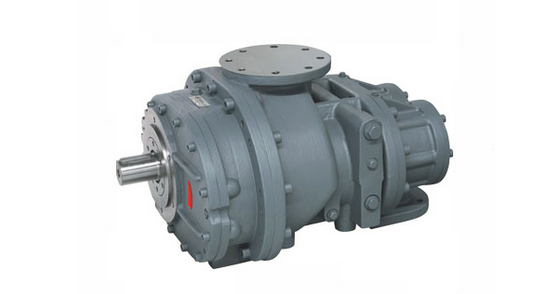

Air End Block - Reliable Centerpiece - Design in Germany
The centerpiece of the compressor is the air end, which is constructed and manufactured with the most modern production methods in Germany. The optimal air end for your compressor can be used on a modulating basis. In frequency-controlled units, where the operating pressure changes, adjustments can also be made on the frequency controller to optimally adjust the speed of the compressor to the compressor performance.
11KW 0.7-1.3MPa air-cooling oil inject screw compressor

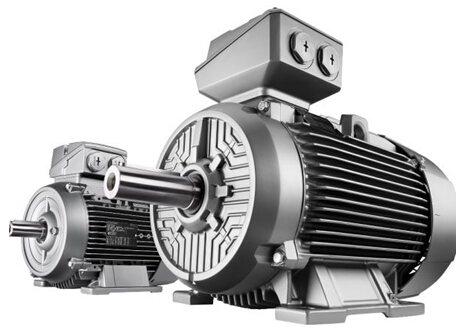

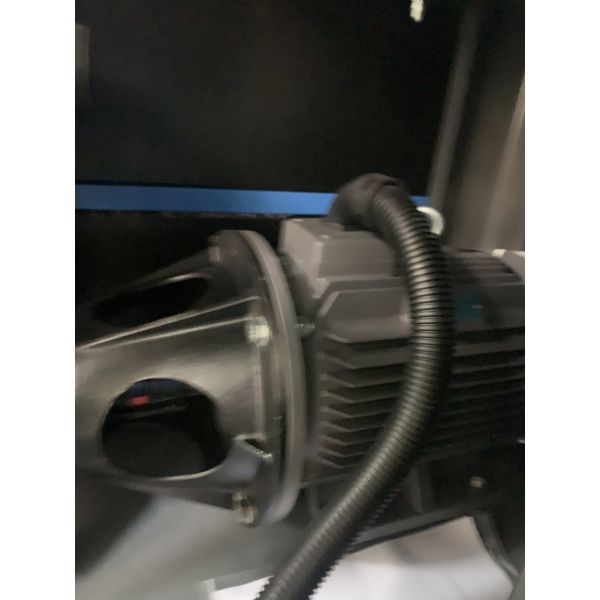

Electric Motor Performance
Only electric motors from well-known manufacturers of protection class IP55/IE3&4 are used. As a standard, the drive motors are monitored both thermally (via the thermistor of the motor) as well as electronically (overload protection via the frequency inverter).
11KW 0.7-1.3MPa air-cooling oil inject screw compressor
Technical Specifications - 11kW Air Cooling Compressor
ITEM UNIT MODEL AGCD-11
Free air delivery m³/min 1.7~1.15
Max. working pressure MPa 0.7~1.3
Compressor type
Oil inject screw compressor
Cooling type
Air cooling
Driven type
Direct driven
Inlet status - Temperature ℃ ≤45
Inlet status - Pressure MPa Atmospheric pressure
Inlet status - Relative humidity
≤90%
Noise Level dB(A) ≤70
Residual oil content ppm ≤2
Drive rotor speed rpm 2930
Compressed air outlet temperature ℃ Ambient temperature＋10
Cooling air flow m³/hr 5380
Control mode
Intelligent controller
Safety valve set pressure MPa 0.77 ~ 1.43
Lubricating water volume L 10
Compressed air outlet connection
G1
Dimension - L mm 1080
Dimension - W mm 750
Dimension - H mm 1150
Net Weight kg 350
Motor - Model
Y2160M1-2
Motor - Speed rpm 2930
Motor - Rated Power KW 11
Motor - Service factor
1.2
Motor - Protection type
IP55
Motor - Efficiency
IE3
Motor - Startup mode
Direct starting
Motor - Voltage V 380(Special on request)
Motor - Frequency Hz 50(Special on request)
Motor - Rated current A 21.2
Motor - Weight of motor kg 115
11KW 0.7-1.3MPa air-cooling oil inject screw compressor
Frequently Asked Questions
Q1: How many workstations can the 11kW model support? How is the performance at 1.3MPa?
At a standard 0.8MPa pressure, the AIRERA 11kW delivers an FAD of approximately 1.7 m³/min, sufficient for 8-10 standard pneumatic stations. At 1.3MPa high pressure, it maintains a robust output of around 1.2 m³/min. This makes it the premier power source for 3000W -6000W laser cutting machines, ensuring forceful, continuous air blowing for smooth, burr-free cuts.
Q2: How does the 11kW model perform in hot summer weather? Will it trip frequently?
No. AIRERA 11kW features an upgraded heavy-duty plate-fin radiator with a cooling surface area 20% larger than industry standards. Paired with a high-power centrifugal fan and optimized airflow, the system keeps oil temperatures optimal even in 45°C ambient heat, completely eliminating high-temperature trip-outs.
Q3: Why does AIRERA emphasize "Low-Speed, Large-Rotor" design? What is the benefit?
Some brands use small rotors at high speeds to cut costs, resulting in high noise and short lifespans. AIRERA utilizes low-speed, large-rotor airends. Lower RPM means significantly less mechanical wear. For the user, this translates to a quieter operation (approx. 68dB), longer intervals between services, and a machine lifespan exceeding 10 years.
