185KW Air cooling Oil Inject Screw Compressor
185KW Air cooling Oil Inject Screw Compressor
185KW Air cooling Oil Inject Screw Compressor
185KW Air cooling Oil Inject Screw Compressor
185KW Air cooling Oil Inject Screw Compressor
185KW Air cooling Oil Inject Screw Compressor
185KW Air cooling Oil Inject Screw Compressor
185KW Air cooling Oil Inject Screw Compressor
Specifications
Brand Name :
AIRERA
Model Number :
AGCD-185D C
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
TT/LC,Western Union,D/P,D/A
Supply Ability :
2,000-3,000 per month
Delivery Time :
5-15 days
Packaging Details :
wooden case
Cooling air flow（m3/hr） :
16200
Application :
Medical, Pharmaceutical, Food Processing
Oil Content :
Oil inject
Working Pressure :
0.7-1.3Bar
Cooling type :
Air cooling
Driven type :
Direct driven
Free air delivery :
34~26m3/min
Description

AIRERA 185kW Air-Cooled Oil-Injected Screw Compressor: A Masterpiece of Power and Intelligence

The AIRERA 185kW Series is more than just an industrial air power source; it is a strategic partner for modern manufacturing facilities demanding peak energy efficiency and unwavering stability. Leveraging our industry-leading oil-injected screw technology and proprietary aerodynamic design, this compressor delivers 185kW of robust power while striking the perfect balance between energy consumption and ultra-quiet operation.

Key System Advantages
Oil separation system

Compressors up to 132 kW are equipped with external separators that can be changed in a simple spin-off/spin-on process. Larger units have an internal separator cartridge. Due to the excellent separation efficiency of the system as a whole, the compressors can be used in the pressure range of 5.0 to 15.0 bar. Special pressures on request.

185KW Air cooling Oil Inject Screw Compressor

Oil circuit

The amount of oil in the units is determined in such a way as to extend the oil change intervals (depending on ambient conditions). An oil level sensor is integrated as standard and is read by the controller. All the units in this series have a horizontal oil separation vessel in which the oil is separated from the compressed air highly efficiently at low speeds.

185KW Air cooling Oil Inject Screw Compressor

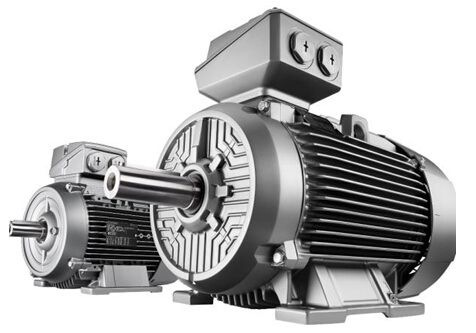

Electric motor

Only electric motors from well-known manufacturers of protection class IP55/IE3&4 are used. As a standard, the drive motors are monitored both thermally (via the thermistor of the motor) as well as electronically (overload protection via the frequency inverter).

185KW Air cooling Oil Inject Screw Compressor
Technical Specifications - 185kW Air Cooling Compressor
ITEM UNIT MODEL AGCD-185
Free air delivery m³/min 34~26
Max. working pressure MPa 0.7~1.3
Compressor type
Oil inject screw compressor
Cooling type
Air cooling
Driven type
Direct driven
Inlet status - Temperature ℃ ≤45
Inlet status - Pressure MPa Atmospheric pressure
Inlet status - Relative humidity
≤90%
Noise Level dB(A) ≤79
Residual oil content ppm ≤2
Drive rotor speed rpm 2980
Compressed air outlet temperature ℃ Ambient temperature＋10
Cooling air flow m³/hr 16200
Control mode
Intelligent controller
Safety valve set pressure MPa 0.77 ~ 1.43
Lubricating oil volume L 110
Compressed air outlet connection
DN80
Dimension - L mm 3150
Dimension - W mm 1800
Dimension - H mm 2100
Net Weight kg 2800
Motor - Model
Y2315L1-2
Motor - Speed rpm 2980
Motor - Rated Power KW 185
Motor - Service factor
1.2
Motor - Efficiency
IP55
Motor - Startup mode
Y-Δ starting
Motor - Voltage V 380 (Special on request)
Motor - Frequency Hz 50 (Special on request)
Motor - Rated current A 338
Motor - Weight of motor kg 1460
185KW Air cooling Oil Inject Screw Compressor
Frequently Asked Questions
Q1: Why does the AIRERA 185kW unit perform more reliably in high ambient temperatures?
A: This is due to our high-efficiency fin-type air-cooling system, specifically engineered for extreme operating conditions. Unlike standard models, AIRERA utilizes a larger heat-exchange surface and high-capacity centrifugal cooling fans, providing superior air pressure and airflow. Coupled with an optimized internal hot/cold airflow isolation design, it ensures stable, continuous operation without overheating, even in environments reaching 46°C (115°F).
Q2: Are there any specific requirements for the installation environment?
A: As a high-power 185kW unit, we recommend a well-ventilated installation area. Because it utilizes an air-cooled design, there is no need for external cooling towers or water pump systems, which significantly simplifies installation and eliminates water-side maintenance costs. We recommend installing an air duct hood at the exhaust outlet for better heat dissipation; our technical team is also available to provide free ventilation layout advice based on your site conditions.
