High Speed Extrusion PET Strap Production Line with 500kg/h Output and Precision Thickness Control
High Speed Extrusion PET Strap Production Line with 500kg/h Output and Precision Thickness Control
Specifications
Model Number :
ZRPET-125A
Certification :
ISO9001,CE
Raw Material :
PET
Packaging Details :
Each Unit Packed With Strech Film
Payment Terms :
T/T
Screw Dia. (mm) :
125
Price :
Negotiable
Delivery Time :
15-30 working days
Supply Ability :
10 Set/Sets Per Month
Strap Band Thickness :
0.4mm-1.5mm ± 0.025mm
MOQ :
1 set
Strap Band Width :
9mm-32 Mm ±0.25
Place of Origin :
Guangdong, China
Capacity (Kg/hr) :
200~500
Brand Name :
ZHIROBO
Extrusion Method :
High speed
Warranty of core components :
3 Year
Description
PET Strap Production Line ZRPET-125A

PET Strap Production Line REGULAR providing and PET strap manufacturing process with ISO 9001 certified assurance system.

PET Strap Production Line ZRPET-125A

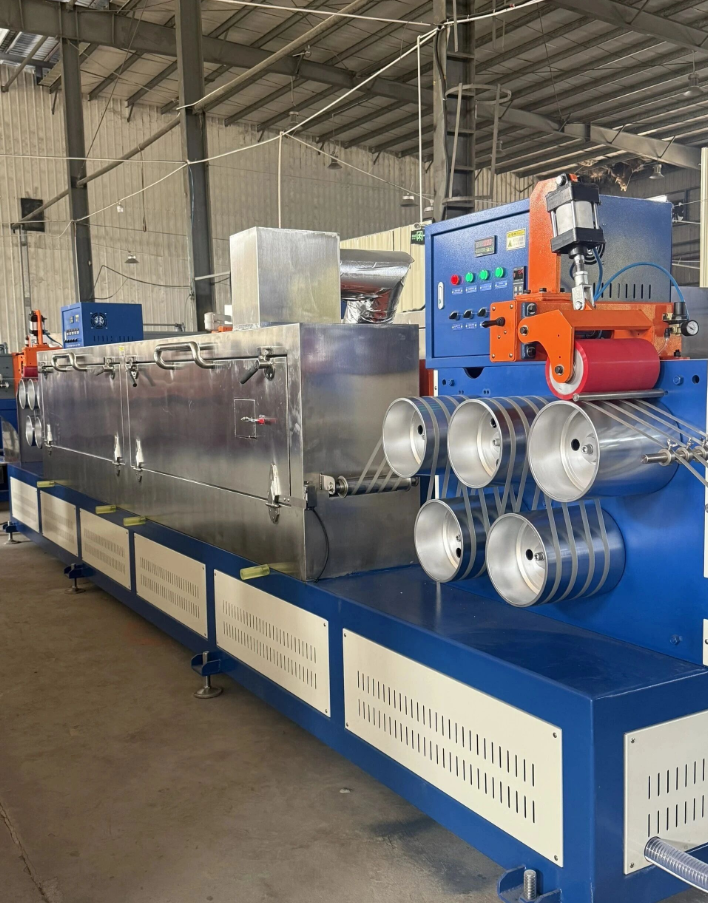

The PET Strap Production Line is a fully automatic extrusion system dedicated to the continuous manufacturing of high-strength PET strapping bands. It is extensively adopted in packaging, logistics, transportation and industrial bundling sectors, producing straps featuring stable performance, premium quality and precise dimensional control.

Equipped with advanced single-screw extrusion technology and optimized screw & barrel structure, the equipment achieves efficient plasticization of PET raw materials. The complete line consists of drying, extrusion, water cooling, stretching, embossing, heating and automatic winding units. The PLC system realizes synchronous operation of all modules for stable and reliable production efficiency.

This production line can process PET pellets, recycled PET bottle flakes and shredded waste PET straps. Adjustable strap width and thickness provide flexible manufacturing solutions to fulfill various customer demands.

Product Specifications
Model Screw Dia. (mm) Strap No. Capacity (Kg/hr) Strap Width (mm) Thickness (mm)
ZRPET-125A 125 1~4 200~500 9~32 0.4~1.4
Key Features
  • Fully automatic PET strap extrusion system
  • High-efficiency single-screw extruder with optimized screw design
  • Stable production with precise thickness and width control
  • PLC-controlled synchronization for easy operation
  • Compatible with PET granules, bottle flakes, and recycled PET materials
  • Complete production line integration including drying, cooling, stretching, embossing and winding
  • High-strength PET straps with excellent tensile performance and dimensional stability
  • Energy-efficient design for continuous industrial production
Applications
  • Carton and corrugated box packaging
  • Heavy-duty industrial packaging
  • Steel coil and metal product bundling
  • Pallet and cargo securing
  • Building materials and pipe bundling
  • Logistics and warehouse packaging
  • Recycling and PET strap production industries

High Speed Extrusion PET Strap Production Line with 500kg/h Output and Precision Thickness Control

After-Sales Support

We provide comprehensive technical support including equipment installation guidance, production line commissioning, operator training, and spare parts supply.

Our professional service team ensures smooth operation, reliable performance, and long-term production efficiency of your PET Strap Production Line.
