All In One Carton Folding Machine PE Film Shrink Wrapping Machine For E Commerce Warehouse
All In One Carton Folding Machine PE Film Shrink Wrapping Machine For E Commerce Warehouse
Specifications
Packaging Details :
Wooden Case
Model Number :
ZRB-800GE+BSN-6050SL+ZRL-FI500L
Payment Terms :
T/T
Model :
ZRB-800GE+BSN-6050SL+ZRL-FI500L
MOQ :
1 set
Speed :
15 PCS/min
Delivery Time :
15-30 working days
Supply Ability :
10 sets per month
Appliable Film :
PE, POF, PVC
Certification :
VERIFICATION OF CONFORMITY
Heating Size Max :
600(W)*500(H)mm
Place of Origin :
CHINA
Packaging Size Min :
150×150×100mm
Price :
Negotiable
Brand Name :
ZHIROBO
Equipment Type :
Packing machine Production Line
Description

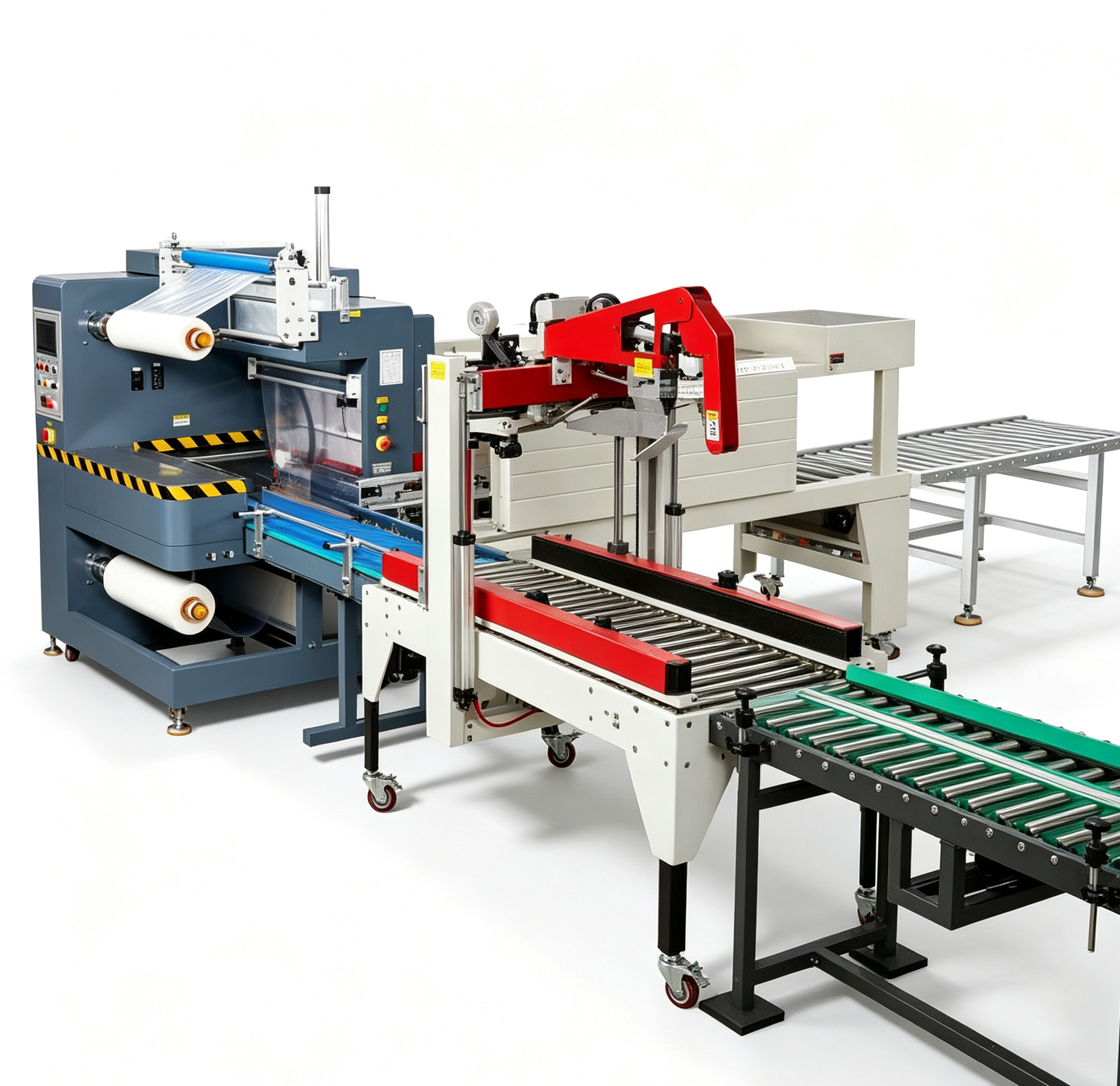

All-In-One Carton Folding Sealing PE Shrink Wrapping Line For E-commerce Warehouse
Basic Use

This machine performs automatic carton sealing and shrink packaging to prevent carton breakage, water penetration and theft during logistics transportation.

Main Technical Parameters
Name/Model ZRB-800GE BSN-6050SL
Max. Packaging Size (L*W*H) 550*450*450mm
Min. Packaging Size (L*W*H) 150*150*100mm
Max. Heating Size (W*H) 600(W)*500(H)mm
Packing Speed 15 PCS/min
Heating Tunnel Size (L*W*H) 1800*600*H500mm
Power Supply Single-Phase AC200-240V, 50-60HZ 3KW Three-Phase 220-380V 50-60HZ 21KW
Air Supply Pressure 6KG
Machine Size 3110(L)*1560(W)*1920(H) 2500*910*1500mm
Weight 500kg 350kg
Packing Film PE PE, POF, PVC
Carton Sealer Technical Parameters
Model ZRL-FI500L
Voltage Power AC200-240V 50/60HZ 0.4KW
Package Dimensions L(280-600)mm*W(200-500)mm*H(150-500)mm
Working Pressure 6kg/cm²
Speed/min 6-7 (meter/min)
Machine Size L700mm*W920mm*H1450MM
Sealing Tape Width 48-72mm
Weight 280kg
Configuration Parameters
Component ZRB-800GE BSN6050SL
Touch Screen Mcgstpc
Motorized Pulley 网纹
Linear Module 凯尼克
PLC 松下
Linear Guide 上银
DC Motor 新永泰
/>
Air Switch chint chint
Switching Mode Power Supply Mingwei
Contactor Schneider chint
Relay IDEC
Frequency Inverter 科索
Solid State Relay 欣大
Button Switch Kndele 上海川洲
Thermostat 台松 信普
Solenoid Valve China STNC
Filter China STNC
Cylinder STAR
Electric Machinery sanly 苏林电机
Conveyor System 东邦
Governor HKccn
Photoelectric Sensor Taiwan Yangming
Proximity Switch CNTD
Bearing NSK HRB
Pneumatic Joint EASUN
High Temperature Resistant Tape JAPAN NITTO
Equipment Advantages
  • The PLC control system paired with servo-powered infeed mechanism guarantees rapid and steady carton feeding.
  • Single sealing procedure creates attractive packaging effect and achieves solid sealing performance.
  • Film unwinding adopts mechanical expansion shaft to maintain consistent film feeding without shifting or wrinkling issues.
  • Well-designed smooth film transport structure supports reliable sealing and lowers the risk of film breakage.
  • Equipped with servo motor waste winding unit and mechanical expansion shaft to realize accurate waste material collection.
  • The air duct circulating system offers evenly distributed airflow, enabling uniform heating on products.
  • Dual-side belt driving structure transports cartons smoothly and steadily during sealing.
  • Automatic height and width adjustment shortens downtime when switching different product sizes.
Equipment Layout

All In One Carton Folding Machine PE Film Shrink Wrapping Machine For E Commerce Warehouse

All In One Carton Folding Machine PE Film Shrink Wrapping Machine For E Commerce Warehouse
