Multi Functional Automatic Packaging Line High Efficiency Film Wrapping Machine
Multi Functional Automatic Packaging Line High Efficiency Film Wrapping Machine
Specifications
Heating furnace dimensions :
1500*450*250mm
Place of Origin :
CHINA
Certification :
VERIFICATION OF CONFORMITY
Container Size :
Customize
MOQ :
1 set
Delivery Time :
15-30 working days
Model Number :
ZRB-500TC+ DRS-5025POF
Packing size :
Ø(50-85)mm *H(15-20)mm
Payment Terms :
T/T
Price :
Negotiable
Model :
ZRB-500TC+DRS-5025POF
Brand Name :
ZHIROBO
Description


AutMulti Functional POF Film Tube Packaging Line ZRB500TC ZRS5025POF High Efficiency Automatic Wrapping Equipment for All Kinds of Cylindrical Adhesive Products​


Basic Use:

A production line for full-tube color film packaging, mainly used for packaging electrical tapes in tubes containing 4, 6, 8, or 10 rolls.

Equipment Advantages:

  • Tape label dimension can be freely adjusted.
  • Dual-channel automatic feeding is supported. The unit can work with automatic packaging machines to pack tapes with marks on two sides.
  • Equipped with impulse cold-sealing cutter. No preheating is required, delivering smooth cutting edges while bringing easier operation and energy conservation. The effective cutting width reaches 500mm.
  • Adopts patented structure design. Width and diameter adjustment is realized via threaded handwheel, making it adaptable for products of various widths.
  • Compatible with transparent films and color films for packaging, featuring wide practicability.
  • The full production process supports high-speed, unmanned and automatic running.

Main Technical Parameters:

Model

Fully Automatic Color Film Tube Wrapping Machine for Electrical Tape

ZRB-500TC

Intelligent Visible Variable-Frequency Heat Shrink Tunnel DRS-5025POF

Power supply

AC200-240V 50/60HZ 0.6KW

AC380V 50/60HZ 13KW

Packing size

Ø(50-85)mm *H(15-20)mm

Heating furnace dimensions

1500*450*250mm

Packing film

PVC,POF

POF

Packing speed

10-15/min

20-40pcs/min

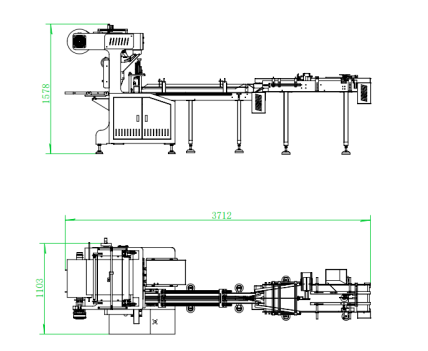

Machine size

3712(L)*1103(W)*1578(H)

1800*900*1120mm

Net weight

330kg

230KG

Configuration Parameters:

Model

Fully Automatic Color Film Tube Wrapping Machine for Electrical Tape

ZRB-500TC

Intelligent Visible Variable-Frequency Heat Shrink Tunnel DRS-5025POF

PLC control

MEDICAL

Uuivertor

cost

touch screen

MCGS

speed motor

Zhan peng

air switch

chint

Chint

Switching Mode Power Supply

Mingwei

Three phase asynchronous fan

Yunchi

Contactor

Schneider

Chint

Phase failure and phase sequence protector

Chint

relay

OMRON

Chint

Servo motor

Shilin

Button switch

Koneda

Heli

Thermostat

Solenoid valve

asicko

Cylinder

Starry sky

Star

electric machinery

Mai Li

Zhan peng

Heating Tube

1.8KW Metal ring

Photoelectric sensor

Yangming

Photoelectric switch

Bojke

Bearing

NSK HRB

HRB

Pneumatic joint

China STNC

Insulation layer

Made of high-temperature resistant rock wool
