Flexible Packaging Options Production Line 15 Boxes/Min Film Packing Machine 200 - 580mm Range
Flexible Packaging Options Production Line 15 Boxes/Min Film Packing Machine 200 - 580mm Range
Specifications
Warranty :
1 year
Model :
ZRL-FC500+ZRL-FG500L
Packaging Material :
Tape
Place of Origin :
CHINA
Carton Sealing tape width :
48mm,60mm,70mm
Price :
Negotiable
Delivery Time :
15-30 working days
Packaging Speed :
15 boxes/min at maximum
Payment Terms :
T/T
Safetyfeatures :
Emergency stop button, safety guards
MOQ :
1 set
Carton Package dimensions :
L(200-580)mm*W(120-480)mm*H(120-480)mm
Brand Name :
ZHIROBO
Model Number :
ZRL-FC500+ZRL-FG500L
Type :
Packing Machine Production Line
Certification :
VERIFICATION OF CONFORMITY
Description

Packaging Line Offering Flexible Packaging Options Including Bagging Wrapping and Sealing for Various Products

Basic use:

It is suitable for sealing and packaging of the same specifications. It is matched with the automatic packaging machine to realize automatic sealing, which greatly saves labor, reduces labor intensity and improves production efficiency.

Equipment advantages:

  • It is suitable for batch use of the same size carton at the same time, and manually adjust the width and height when changing the size.
  • Automatic folding cover "one" type box sealing machine is used together with "I" type box sealing machine on four corners to form an I-shaped box sealing machine.
  • The structure of the tape holder is precise and firm, the operation is soft and the service life is long.
  • This machine can be operated alone or combined with unmanned automatic strapping machine and conveyor to form an automatic sealing, strapping and packaging production line. The instant adhesive tape seals flat, firm, standardized, and beautiful, and will not tear the box.

Main Technical Parameters:

mode Carton Sealer ZRL-FC500 L-Type Semi-Automatic Side Sealer ZRL-FG500L
Voltage power AC200-240V 50/60HZ 0.2KW AC200-240V 50/60HZ 0.6KW
Package dimensions L(200-580)mm*W(120-480)mm*H(120-480)mm L(340-700)mm*W(200-500)mm*H(180-500)mm
working pressure 4kg/cm2 5kg/cm²
speed/min 10-15(m/min) 6-10(m/min)
Machine size L1700mm×W900mm×H1510mm L1950mm×W1150mm×H(Countertop height800)
Sealing tape width 48mm,60mm,70mm 48-72mm
net weight 200kg 450kg

Configuration Parameters:

Model Carton Sealer ZRL-FC500 L-Type Semi-Automatic Side Sealer ZRL-FG500L
Motor Taibang Taibang
PLC Control Customized
Contactor Schneider Schneider
Intermediate Relay Schneider
Push Button Switch APT Push Button Switch APT Push Button Switch
Pneumatic Cylinder Airtac Airtac

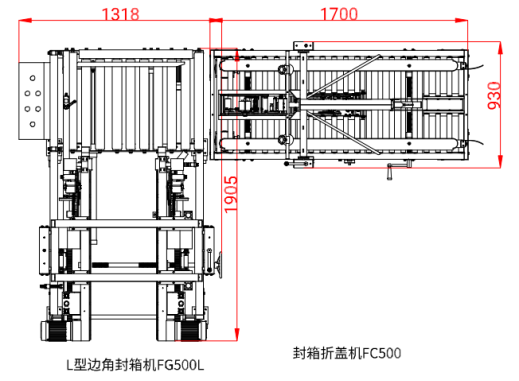

Equipment Layout

Flexible Packaging Options Production Line 15 Boxes/Min Film Packing Machine 200 - 580mm Range

Flexible Packaging Options Production Line 15 Boxes/Min Film Packing Machine 200 - 580mm Range

Flexible Packaging Options Production Line 15 Boxes/Min Film Packing Machine 200 - 580mm Range
