Four Station Automatic Packaging Line High Speed Packing Machine For Tape
Four Station Automatic Packaging Line High Speed Packing Machine For Tape
Specifications
Place of Origin :
CHINA
Model Combination :
ZRP-4585+ZR1000+ZRB-500T+ZRNP-4522
MOQ :
1 set
Delivery Time :
15-30 working days
Packing Film :
PVC, BOPP, POF
Packing Dimension :
Ø(45-85)mm * H(10-25)mm
Packing Speed :
68–72 pcs/min
Packaging Details :
Wooden Case
Total Machine Weight :
950KG
Certification :
VERIFICATION OF CONFORMITY
Price :
Negotiable
Brand Name :
ZHIROBO
Model Number :
ZRP-4585+ZR1000+ZRB-500T+ZRNP-4522
Payment Terms :
T/T
Machine Type :
Packing Production Line
Description
Four Station High-Speed Packing Machine Production Line for Tape
Product Overview

This high-speed production line is designed for complete automated packaging of single rolls and 10-roll packs of electrical tape, featuring advanced servo control and precision engineering.

Main Technical Parameters
Model Fully Automatic High-Speed Electrical Tape Corner Folding Packaging Machine with Material Sorting System ZRP-4585+ZR1000 Multi-Lane Sorting Type Tape Roll Packaging Machine ZRB-500T Air Jet Heat Shrink Tunnel Machine ZRNP-4522
Power Supply AC200-240V 50/60HZ 3KW AC200-240V 50/60HZ 0.6KW AC380V 50/60HZ 12KW
Packing Size Ø(45-85)mm * H(10-25)mm Ø(45-85)mm * H(10-20)mm 450(W)*220(H)mm
Packing Film BOPP PVC PVC, BOPP, POF
Packing Speed 68-72/min 10-15/min
Machine Size 1750(L)*1730(W)*1350(H)
1250(L)*1250(W)*1200(H)		 1260(L)*1250(W)*1520(H)
1880(L)*590(W)*1020(H)
1630(L)*320(W)*900(H)		 1200(L)*400(W)*200(H)
Net Weight 500kg 350kg 100kg
Configuration Parameters
Component ZRP-4585+ZR1000 ZRB-500T ZRNP-4522
PLC Controller Plc CHSJL
Touch Screen Mcgstpc Mcgstpc
Air Circuit Breaker chint chint chint
Switching Power Supply Mingwei Mingwei
AC Contactor Schneider Schneider
Relay OMRON OMRON
Frequency Inverter Coset
Push Button Switch Koneda Koneda Koneda
Temperature Thermostat Teshow caoren
Magnetic Powder Clutch YOSEEN
Stepper Motor Instar
Servo Motor FUJI
Servo Motor Jintian
Reducer Hasi Mai
Solenoid Valve STNC STNC
Air Cylinder CNTUOPU CNTUOPU
Main Motor sanly sanly Su Lin
Photoelectric Sensor Yangming Yangming
Photoelectric Switch Daochuan Daochuan
Linear Guideways HIWIN
Tri-Color Warning Light TʌYB
Bearing NSK HRB NSK HRB

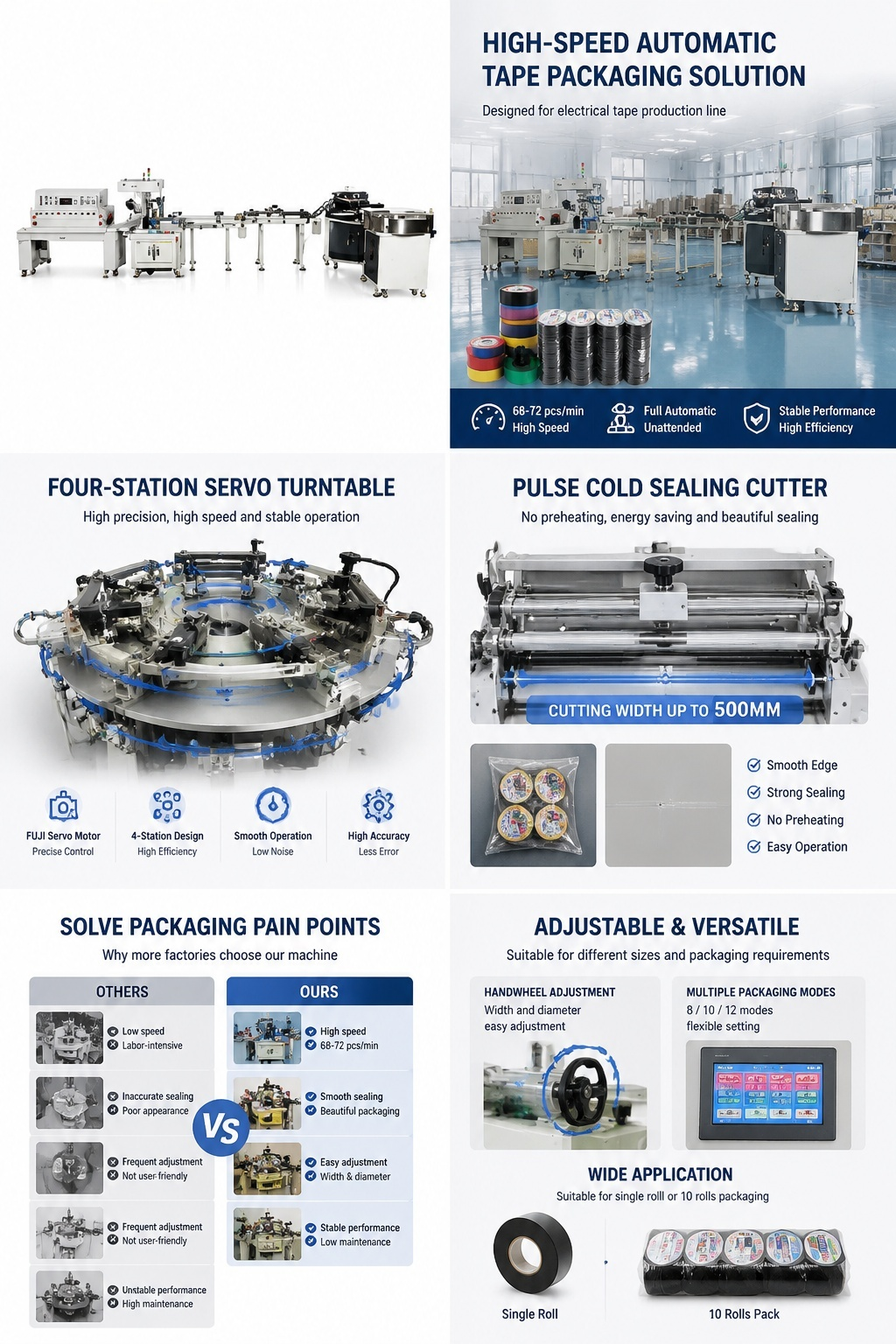

Key Equipment Advantages
  • The four-position turntable uses Fuji servo control. Accurate power transmission effectively improves processing speed.
  • The machine works with color printing packaging film and supports servo-driven labeling operation.
  • Servo-controlled film feeding guarantees highly accurate length control of packaging film.
  • Cutting unit powered by stepper motor realizes low-noise high-speed cutting; output reaches 68-72 units every minute.
  • Photoelectric positioning and color mark sensor are configured for accurate tracking.
  • Free adjustment of tape label dimensions is available.
  • Dual-channel automatic material feeding enables automatic packaging for marked tapes.
  • Impulse cold-sealing cutter is installed, whose effective cutting width is 500mm.
  • Width and diameter can be modified through hand wheel with patented design.
  • Operators can switch among 8, 10 and 12 packaging modes via HMI setting.
  • Full automated workflow supports continuous high-speed unmanned production.

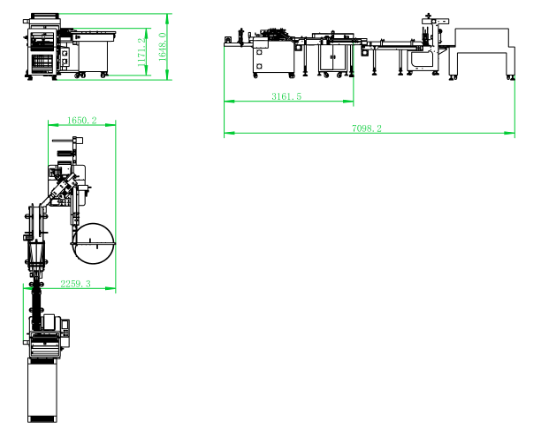

Equipment Layout

Four Station Automatic Packaging Line High Speed Packing Machine For Tape

Four Station Automatic Packaging Line High Speed Packing Machine For Tape

Four Station Automatic Packaging Line High Speed Packing Machine For Tape
