15 - 30 Pcs/Min Packaging Line Equipment High Accuracy Automatic Carton Sealing Machine
15 - 30 Pcs/Min Packaging Line Equipment High Accuracy Automatic Carton Sealing Machine
Specifications
Model Number :
Production Line
Packing film :
PVC,POF,PE
Certification :
VERIFICATION OF CONFORMITY
Tunnel Packing speed :
0-30 PCS/min
Payment Terms :
T/T
Suitable For :
Tapes
Condition :
New
Place of Origin :
CHINA
Seal Packing speed :
15 PCS/min
Brand Name :
ZHIROBO
MOQ :
1 set
Type :
Packing Production Line
Price :
Negotiable
Delivery Time :
15-30 working days
Description

Automatic Packaging Line Designed to Optimize Production Speed and Enhance Packaging Accuracy in Manufacturing

Basic Use:

Widely used in tape, food, cosmetics, hardware, electronic originals, gift boxes and other industries shrink packaging, can also be used for OPP sealing tape flat packaging, can be 2 volumes, 4 volumes, 6 volumes, 8 volumes of combination packaging.

Equipment Advantages:

  • Special alloy treatment is applied on the sealing cutter. No film sticking occurs during operation. The sealing effect is solid, free of cracking, coking, fume and pollution.
  • Equipped with imported relays to convert electric signals to optical signals for transmission, which fulfills the function of electrical isolation.
  • All procedures including film sleeving, cutting, sealing and heat shrinking run continuously in one line. Integration with upstream feeding and sealing assembly lines enables unattended operation, saving labor and improving output efficiency.
  • Upgraded waste removal structure reduces film breakage failures and overcomes the common film breaking defect of conventional flat machines.
  • Constructed with non-stick Teflon, the material tray stays anti-adhesive permanently and owns excellent durability.
  • It supports uninterrupted high-speed production and realizes fully automatic unmanned running in the whole process.

Main Technical Parameters:

Model Double channel tray Chain assembly line Vertical Close-Gap Sealing & Cutting Machine Intelligent Heat Shrink Tunnel
Power supply AC220V/0.4KW AC220V/0.5KW 220v 50/60HZ,1.35W AC380V/12KW
Packing size Length+Height≤480mm;
Width+Height≤380mm
Width≤330mm;
Height≤150mm		 450(W)*220(H)
Seal & Cut Size Limit 450mm*550mm
Packing film POF PVC,POF,PE
Packing speed 15 PCS/min 0-30 PCS/min
Heating Tunnel Size 1500*450*220mm
Machine size 1830(L)*1800(W)*1150(H) 1740(L)*760(W)*960(H) 1700(L)*970(W)*1480(H) 18000(L)*770(W)*1150(H)
Weight 400kg 200kg 300KG 180kg

Configuration Parameters:

Model ZRCZ-450 Intelligent Heat Shrink Tunnel ZRKS-4525
PLC Chsjl
touch screen Chsjl
Motor MaiLi MaiLi
Sealing & Cutting Blade High-temperature alloy steel with Teflon coating
photoelectric switch Genuine Omron, Japan
cylinder Hengyi Pneumatic, China
AC contactor TIANGAO

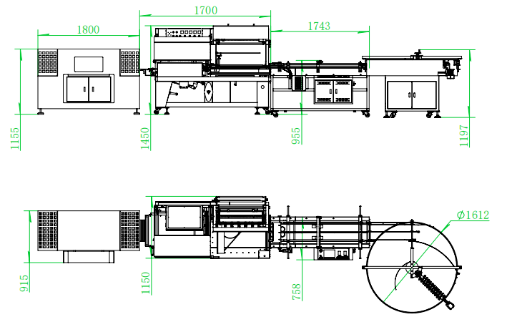

Equipment Layout:

15 - 30 Pcs/Min Packaging Line Equipment High Accuracy Automatic Carton Sealing Machine

15 - 30 Pcs/Min Packaging Line Equipment High Accuracy Automatic Carton Sealing Machine
