It is mainly applicable to the whole or single package of OPP sealing tape, stationery tape, masking tape, etc.

• Adopting an impulse cold-sealing cutter design, the machine delivers smooth cutting edges without preheating required. It provides easier operation and effective energy saving, with an effective cutting width of 500mm.
• Equipped with DC motor-driven width and diameter adjustment system, the equipment achieves precise positioning with fast and convenient parameter switching, adapting to packaging products of various widths.
• This multi-functional machine supports versatile packaging applications. It handles product widths from 40mm to 350mm for both single and multiple packaging modes. One-button automatic specification adjustment eliminates manual operation.
• The equipment supports a high packaging speed of up to 28 drums per minute.
• The whole machine adopts full steel structure, ensuring stable operation and solid overall rigidity.
• Automatic inline material feeding is realized. The production line and main machine body adopt separated mounting design for easier transportation and installation.
• Fixed-position discharging effectively prevents loose packaging and ensures consistent finished results.
• Built-in material storage structure stabilizes film feeding process and avoids film deviation during operation.
• Independent separation structure ensures smooth material pushing performance, even when sealing tapes produce slight adhesion.
• The machine can be connected behind fully automatic slitting machines and manual slitting machines to realize fully unmanned intermediate production procedures.
• The heating system of the intelligent visual frequency conversion heat shrink machine adopts high-temperature resistant rock wool insulation layer. It maintains low surface temperature during operation and reduces heat loss. Stainless steel heating tubes are adopted for long service life.
• Specially optimized air duct circulation system ensures uniform product heating. Equipped with dual high-power imported air blower motors, the shrink furnace provides large, even and adjustable air volume.
• The outer shell of the heat shrink machine is made of bent carbon steel plate with plastic spraying finish, while the inner plate adopts hydraulic-molded galvanized steel plate for durable performance.

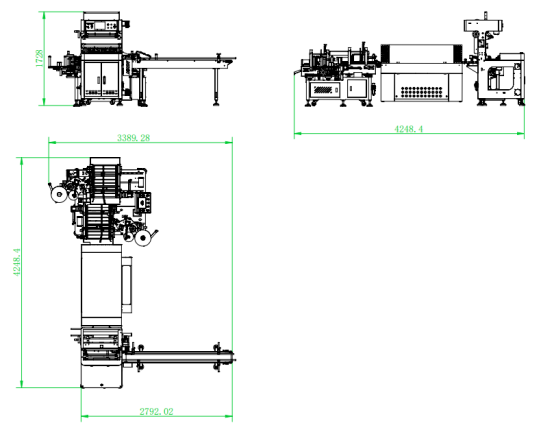

Equipment Layout:
