Energy Saving Packing Production Line 48 - 72mm Tape Packaging Line Equipment
Energy Saving Packing Production Line 48 - 72mm Tape Packaging Line Equipment
Specifications
Delivery Time :
15-30 working days
Carton Sealing tape width :
48mm,60mm,70mm
Brand Name :
ZHIROBO
Certification :
VERIFICATION OF CONFORMITY
MOQ :
1 set
Place of Origin :
CHINA
Packaging Material :
Tape
Warranty :
1 year
Payment Terms :
T/T
Machine Weight :
200+450kg
Side Sealer Sealing tape width :
48-72mm
Price :
Negotiable
Model Number :
ZRL-FC500+ZRL-FG500L
Package dimensions :
L(200-580)mm*W(120-480)mm*H(120-480)mm
Description

Automatic Packaging Line incorporating energy components to reduce operational costs and support sustainable manufacturing practices

Basic use:

It is suitable for sealing and packaging of the same specifications. It is matched with the automatic packaging machine to realize automatic sealing, which greatly saves labor, reduces labor intensity and improves production efficiency.

Equipment advantages:

  • The machine is ideal for mass processing cartons of identical dimensions. Manual adjustment on width and height is required while switching to different sizes.
  • As an automatic flap folding straight-line carton sealer, it can work with four-corner I-type sealing equipment to realize complete I-shaped carton sealing.
  • The tape holder features precise and solid construction. It runs smoothly during operation and comes with a long service lifespan.
  • The equipment supports standalone operation. It can also connect with unmanned automatic strapping machines and conveyors to build an integrated automatic production line for sealing and strapping. Instant tape sealing delivers flat, tight and standard packaging with attractive look, without tearing carton surfaces.

Main Technical Parameters:

mode Carton Sealer ZRL-FC500 L-Type Semi-Automatic Side Sealer ZRL-FG500L
Voltage power AC200-240V 50/60HZ 0.2KW AC200-240V 50/60HZ 0.6KW
Package dimensions L(200-580)mm*W(120-480)mm*H(120-480)mm L(340-700)mm*W(200-500)mm*H(180-500)mm
working pressure 4kg/cm2 5kg/cm²
speed/min 10-15(m/min) 6-10(m/min)
Machine size L1700mm×W900mm×H1510mm L1950mm×W1150mm×H(Countertop height800)
Sealing tape width 48mm,60mm,70mm 48-72mm
net weight 200kg 450kg

Configuration Parameters:

Model Carton Sealer ZRL-FC500 L-Type Semi-Automatic Side Sealer ZRL-FG500L
Motor Taibang Taibang
PLC Control Customized
Contactor Schneider Schneider
Intermediate Relay Schneider
Push Button Switch APT Push Button Switch APT Push Button Switch
Pneumatic Cylinder Airtac Airtac

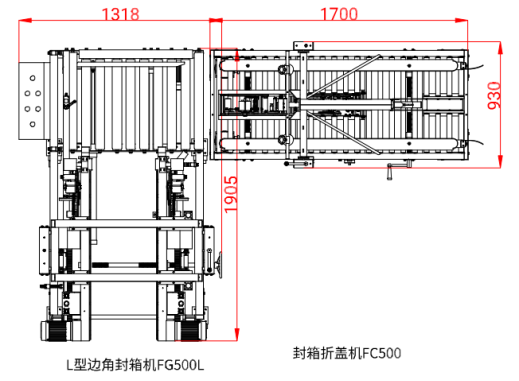

Layout:

Energy Saving Packing Production Line 48 - 72mm Tape Packaging Line Equipment

Energy Saving Packing Production Line 48 - 72mm Tape Packaging Line Equipment

Energy Saving Packing Production Line 48 - 72mm Tape Packaging Line Equipment

Energy Saving Packing Production Line 48 - 72mm Tape Packaging Line Equipment
