15 Pcs/Min Automated Packaging Line High Speed Packaging Production Line With PLC Control System
15 Pcs/Min Automated Packaging Line High Speed Packaging Production Line With PLC Control System
Specifications
Max. Packaging Size :
550×450×450mm
Packaging Details :
Wooden Case
Control System :
PLC control with touch screen interface
Delivery Time :
15-30 working days
Place of Origin :
CHINA
MOQ :
1 set
Certification :
VERIFICATION OF CONFORMITY
Packing Speed :
15 PCS/min
Payment Terms :
T/T
Packing Film :
PE, POF, PVC
Sealing Tape Width :
48-72mm
Supply Ability :
10 sets per month
Min. Packaging Size :
150×150×100mm
Price :
Negotiable
Safety Features :
Emergency stop, safety guards, overload protection
Model Number :
ZRB-800GE+BSN-6050SL+ZRL-FI500L
Type :
Packing machine Production Line
Brand Name :
ZHIROBO
Description
Full-Auto PE High Speed Packaging Machine Production Line with PLC Control System
Basic Use

This equipment is primarily used for automatic sealing of cartons and shrinking packaging, addressing common logistics challenges including box damage, water exposure, and theft prevention.

Main Technical Parameters
Name/Model ZRB-800GE BSN-6050SL
Max. Packaging Size (L*W*H) 550*450*450mm
Min. Packaging Size (L*W*H) 150*150*100mm
Max. Heating Size (W*H) 600(W)*500(H)mm
Packing Speed 15 PCS/min
Heating Tunnel Size (L*W*H) 1800*600*H500mm
Power Supply Single-Phase AC200-240V, 50-60HZ 3KW Three-Phase 220-380V 50-60HZ 21KW
Air Supply Pressure 6KG
Machine Size 3110(L)*1560(W)*1920(H) 2500*910*1500mm
Weight 500kg 350kg
Packing Film PE PE, POF, PVC
Carton Sealer Technical Parameters
Model ZRL-FI500L
Voltage Power AC200-240V 50/60HZ 0.4KW
Package Dimensions L(280-600)mm*W(200-500)mm*H(150-500)mm
Working Pressure 6kg/cm²
Speed/min 6-7 (meter/min)
Machine Size L700mm*W920mm*H1450MM
Sealing Tape Width 48-72mm
Weight 280kg
Configuration Parameters
Component ZRB-800GE BSN6050SL
Touch Screen Mcgstpc
Motorized Pulley 网纹
Linear Module 凯尼克
PLC 松下
Linear Guide 上银
DC Motor 新永泰
/>
Air Switch chint chint
Switching Mode Power Supply Mingwei
Contactor Schneider chint
Relay IDEC
Frequency Inverter 科索
Solid State Relay 欣大
Button Switch Kndele 上海川洲
Thermostat 台松 信普
Solenoid Valve China STNC
Filter China STNC
Cylinder STAR
Electric Machinery sanly 苏林电机
Conveyor System 东邦
Governor HKccn
Photoelectric Sensor Taiwan Yangming
Proximity Switch CNTD
Bearing NSK HRB
Pneumatic Joint EASUN
High Temperature Resistant Tape JAPAN NITTO
Equipment Advantages
  • PLC control system with servo-driven infeed mechanism ensures fast and stable carton feeding
  • Single sealing process delivers beautiful appearance and firm sealing
  • Mechanical expansion shaft film unwind ensures stable film feeding without deviation or wrinkling
  • Smooth film transport mechanism provides reliable sealing with reduced breakage
  • Servo motor waste take-up unit with mechanical expansion shaft enables precise waste collection
  • Air duct circulation system ensures even product heating with uniform airflow distribution
  • Dual-side belt drive carton sealer provides smooth and stable carton conveying
  • Automatic height and width adjustment for size changeover minimizes downtime

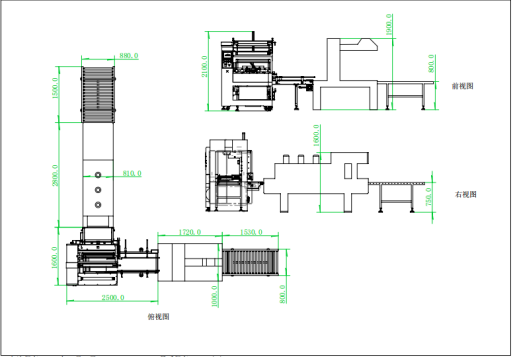

Equipment Layout

15 Pcs/Min Automated Packaging Line High Speed Packaging Production Line With PLC Control System

15 Pcs/Min Automated Packaging Line High Speed Packaging Production Line With PLC Control System
