13.3 Inch IP65 Fanless Industrial Panel PC / Embedded Multi Touch Screen Monitor
13.3 Inch IP65 Fanless Industrial Panel PC / Embedded Multi Touch Screen Monitor
13.3 Inch IP65 Fanless Industrial Panel PC / Embedded Multi Touch Screen Monitor
13.3 Inch IP65 Fanless Industrial Panel PC / Embedded Multi Touch Screen Monitor
13.3 Inch IP65 Fanless Industrial Panel PC / Embedded Multi Touch Screen Monitor
13.3 Inch IP65 Fanless Industrial Panel PC / Embedded Multi Touch Screen Monitor
Specifications
Brand Name :
YZY
Model Number :
PC133H
Place of Origin :
Guangdong, China
MOQ :
300
Price :
$214-232/pieces
Payment Terms :
T/T
Supply Ability :
5K/Month
Delivery Time :
10 work days
Packaging Details :
460 ×445 × 100mm/3.8KG
Type :
Multi Touch Screen Monitor
Display Size :
13.3 inch
Supplier Type :
Factory
Mounting Type :
Embedded
Packing Dimensions :
460 ×445 × 100mm
Net Weight :
3.2KG
Gross Weight :
3.8KG
Description
13.3 Inch H Type Industrial Panel PC Embedded Touch IP65 Fanless HMI Industrial Touch Screen PC Intelligent Touch HMI PC
13.3 Inch IP65 Fanless Industrial Panel PC / Embedded Multi Touch Screen Monitor
Product Features
  • Precision CNC Milling: High-precision machining ensures stronger sealing, reduces dust intrusion, and improves equipment stability and service life.
  • Ultra-narrow Reinforced TP: 18mm narrow bezel with 2mm reinforced design enhances surface hardness and anti-interference capability.
  • Full Aluminum Construction: IP65-rated front panel for water and dust protection with excellent electromagnetic compatibility (EMC).
  • Fanless Heat Dissipation: Copper heat blocks with heat pipes ensure stable operation under high-load conditions.
  • Capacitive Touch: Full-flat, multi-point projected capacitive (PCAP) touch supporting full lamination, compatible with 5-wire resistive touch.
  • Industrial LCD Panel: Original A+ grade LCD module with wide viewing angles, temperature range, and high brightness.
  • I/O Interfaces: Supports 4 Ethernet, 6 USB, and 8 COM ports with customization options.
  • Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C) with 9-36V wide-range input.
  • Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations with custom configurations available.
  • 24/7 Operation: Designed for continuous use with robust performance and long service life.

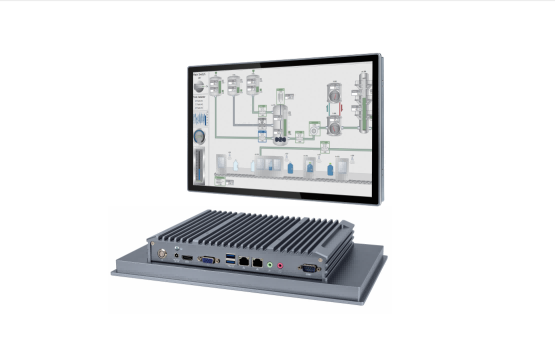

Product Six Views
13.3 Inch IP65 Fanless Industrial Panel PC / Embedded Multi Touch Screen Monitor

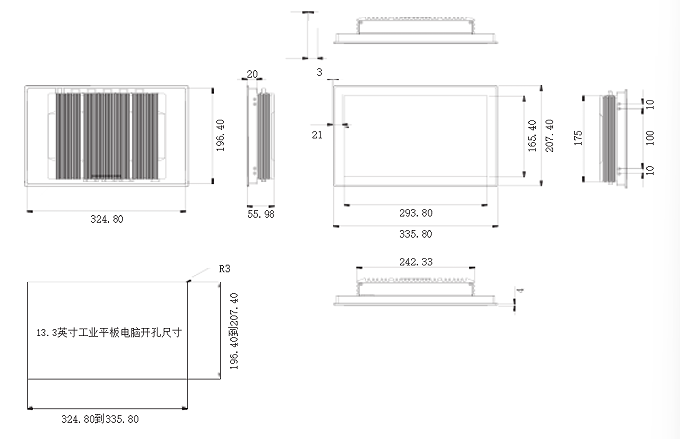

Product Dimensions
13.3 Inch IP65 Fanless Industrial Panel PC / Embedded Multi Touch Screen Monitor

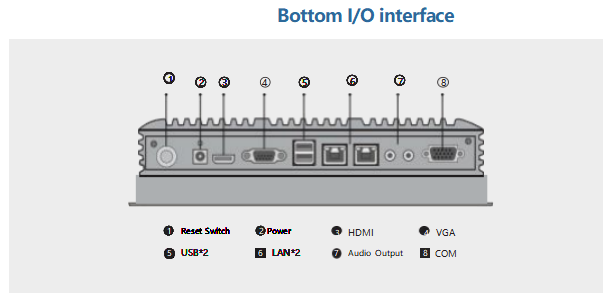

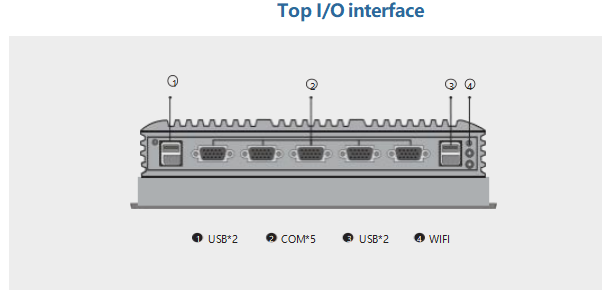

I/O Interface Diagram
13.3 Inch IP65 Fanless Industrial Panel PC / Embedded Multi Touch Screen Monitor 13.3 Inch IP65 Fanless Industrial Panel PC / Embedded Multi Touch Screen Monitor

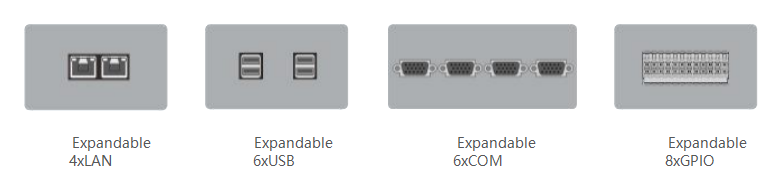

Extensible Interface
13.3 Inch IP65 Fanless Industrial Panel PC / Embedded Multi Touch Screen Monitor
Product Specifications
CPU: J1900/J6412/N100/I3/I5/I7/RK3568/RK3588
Memory: 4G/8G/16G/32G/64G
Storage: 64G/128G/256G/512G/1TB/2TB
Touch Type: Multi-point Capacitive / 5-Wire Resistive
Touch Driver Support: Windows 7/8/10, Linux, Android
LCD Display: 13.3" XGA TFT (1920*1080)
Active Area: 293.8mm*165.4mm
Viewing Angle: 89° (L/R/T/B)
Brightness: 350 cd/m²
I/O Interfaces: 2×RJ-45, 2×USB3.0, 2×USB2.0, 1×RS232/485, 5×RS232, Mini-PCIe slot
Dimensions: 335.80mm*207.40mm*55.98mm
Power Input: DC 12V (9-30V optional)
Operating Temp: -20°C to 60°C (expandable to -40°C to 80°C)
Installation Methods
Embedded Snap-In Mounting

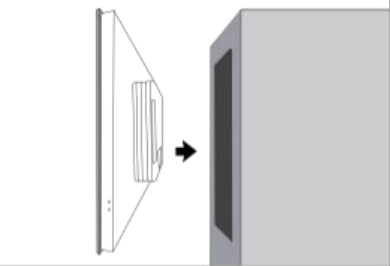

1. The cabinet has pre-drilled holes according to the embedded dimensions of the equipment.

13.3 Inch IP65 Fanless Industrial Panel PC / Embedded Multi Touch Screen Monitor

2. Tighten the long screws and nuts onto the snap fasteners.



13.3 Inch IP65 Fanless Industrial Panel PC / Embedded Multi Touch Screen Monitor

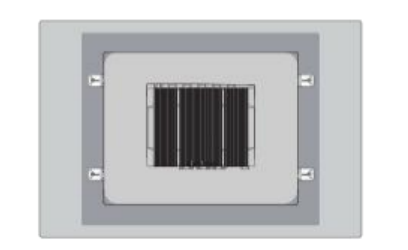

3. Four clips are fixed at the threaded hole positions on both sides.

13.3 Inch IP65 Fanless Industrial Panel PC / Embedded Multi Touch Screen Monitor

4. Tighten the long screws to secure the equipment in place.


13.3 Inch IP65 Fanless Industrial Panel PC / Embedded Multi Touch Screen Monitor

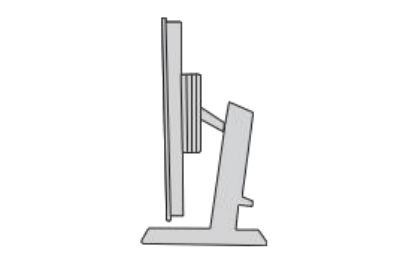

Desktop Mounting

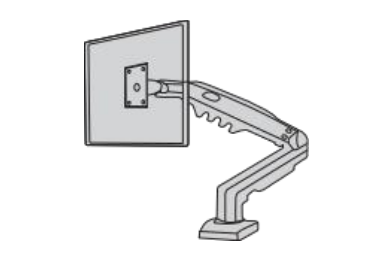

Cantilever Mounting
13.3 Inch IP65 Fanless Industrial Panel PC / Embedded Multi Touch Screen Monitor 13.3 Inch IP65 Fanless Industrial Panel PC / Embedded Multi Touch Screen Monitor
Packing List
No. Item QTY
1 Industrial Panel PC 1 unit
2 Power Adapter 1 unit
3 3-pin 5.08 Power Terminal Plug (optional) 1 unit
4 Embedded Snap-In Kit (optional) 1 set
5 Wall-Mount Bracket (Optional) 1 unit
6 Certificate of Conformity 1 sheet
7 Warranty Card 1 sheet
8 User Manual 1 copy
Ordering Information
No. Name Description
1 Ethernet Port Default single port; optional dual or quad ports
2 Serial Port Default 2 × RS232; optional 6 × RS232/RS485
3 USB Default 4 × USB (2 × USB 2.0, 2 × USB 3.0); optional 8 × USB
4 GPIO Optional 4 input / 4 output
Safety Warnings
1. This device is precision electronic equipment with IP65-rated front panel protection. Avoid water splashes or rain exposure.
2. Do not place in humid environments to prevent condensation and component damage.
3. Avoid prolonged direct sunlight or high UV environments to prevent screen damage.
4. Screen brightness is ≥350 cd/m². Avoid outdoor usage in high ambient light.
5. Do not disassemble or repair the device yourself due to high voltage risks.
Recommended operating environment: temperature 0-50°C, relative humidity 10%-70%.
