Specifications
Brand Name :
YZY
Model Number :
YCXX6-7
Certification :
CE、EMC
Place of Origin :
Guangdong, China
MOQ :
100
Price :
$105-119/pieces
Payment Terms :
T/T
Supply Ability :
5K/Months
Delivery Time :
30-45Days
Packaging Details :
BOX
Type :
Lcm
Display Size :
7 inch
Supplier Type :
Factory
Backlight Type :
LED
Resolution :
Optional
Brightness :
300
Operating Temperature :
-10-60
Brand :
BOE
Display Type :
IPS
Mounting Type :
Embedded
Operating System :
Windows 7/8/10 / Linux/ VxWorks/ QNX/Android11/12/13
Touch :
USB interface multi-touch
Audio :
Realtek ACL662 Audio Controller
I/O interface :
HDMI/RJ45/VGA/DC/DVI
Outline Dimension :
225.04*160.7*59mm
Power supply :
DC 12V
Description

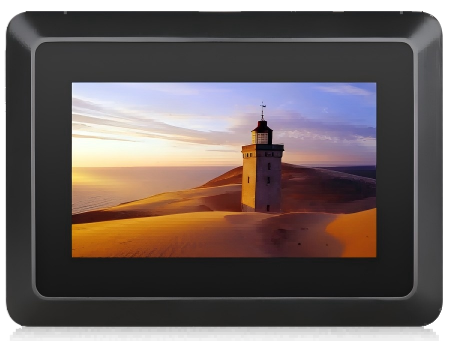

YCXX6-7 7 Inch Industrial Touch Display with Wide Temperature Range Pressure-Resistant Multi-Touch Embedded Monitor
1.1 Product Introduction

The monitor adopts full aluminum alloy structure, fanless and fully enclosed design, low power consumption, compact shape. It is an industrial product specially designed for a variety of environments, which can ensure long-term stable operation in harsh environments. In terms of materials used for the whole machine, we pay more attention to its reliability, environmental adaptability, real-time performance, scalability, EMC compatibility and other performance. The configuration adopts RTD2483 Chip, with high-definition display interface and multiple interfaces, meet the needs of a variety of application interfaces, provide a variety of work efficiency. It is widely used in industrial control, military, communication, power, network and other high-end automation fields.

7 Inch Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor7 Inch Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor7 Inch Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor

Compact shape, meet lots of installation methods

The whole machine with military-grade aluminum alloy structure, high-efficiency heat dissipation design (compatible with fans), to ensure stable operation in harsh environments, increase the service life of the machine, high safety and efficiency, and no noise. It can be applied to high dust, high vibration, high temperature, low temperature and other environments.

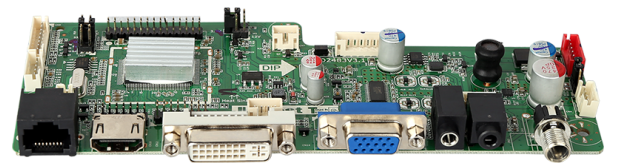

• Using RTD2483 chip

•The whole machine is full military-grade aluminum alloy metal, specially built for industry, with high temperature resistance, anti-corrosion, anti-pressure, fine workmanship, long service life, suitable for working in a variety of harsh environments, the whole machine is highly efficient heat dissipation design, compatible with fan heat dissipation, The interior is simple and without redundant wiring, ensuring that the embedded computer can work uninterrupted in harsh environments.

•Capacitive touch screen, more intuitive operation, more interesting, not easy to touch by mistake, high durability, and compatible with resistive touch.

•Equipped with a wide range of input and output interfaces, connecting a variety of required equipment.

7 Inch Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor

1.2 Product Parameters

Screen

parameters

size

7 "

 touch screen Type of touch screen Capacitive touch screen

Resolution

1024×600

 Resolution 500DPI

view angle

75/75/70/75 (L/R/U/D)

Input Handwriting or capacitive pen

colour

Chroma: 16.7M

 Surface hardness 7H

Brightness

Brightness: 300 cd/m2

 calibration support

Contrast

500 :1

 interface HDMI Support HDMI data output, maximum up to 1080P
Response time 6.5 ms RJ45 Touch interface

Display area

154.214 × 85.92 mm

 VGA 1

Pixel pitch (mm)

0.1506×0.1432 (H×V)

 Earphone holder 3.5mm standard interface
Hardware Configuration CPU RTD2483 DC DC 12~24V
System language English ,Chinese DVI 1
Video input PC-RGB:Format Up to 1920*1080@60HZ power supply Power consumption (maximum) 12W
PC-RGB:Color 16bit, 24bit, 32bit power input AC 100-240V 50/60Hz passed CCC certification, CE certification
Key Function AUTO, MENU, POWER, LEFT, RIGHT Power Output DC12V / 4 A

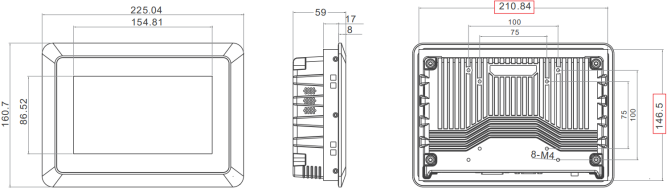

1.3 Dimensional drawing

7 Inch Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor

Overall size:225.04*160.7*59mm(L*W*H)
