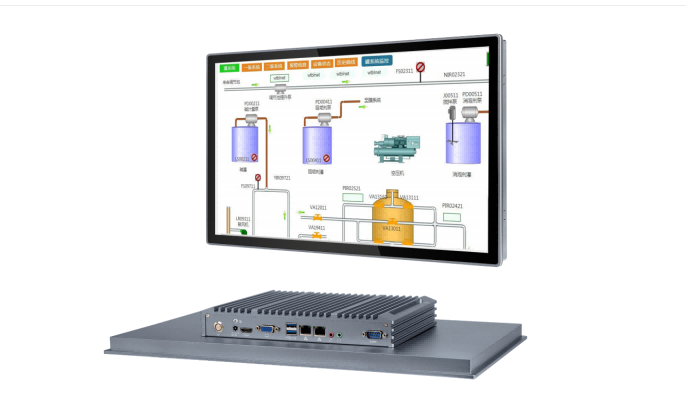

21.5 Inch IP65 Industrial Monitor / Fanless Industrial Panel PC
21.5 Inch IP65 Industrial Monitor / Fanless Industrial Panel PC
21.5 Inch IP65 Industrial Monitor / Fanless Industrial Panel PC
21.5 Inch IP65 Industrial Monitor / Fanless Industrial Panel PC
21.5 Inch IP65 Industrial Monitor / Fanless Industrial Panel PC
21.5 Inch IP65 Industrial Monitor / Fanless Industrial Panel PC
Specifications
Brand Name :
YZY
Model Number :
PC 215H
Place of Origin :
Guangdong, China
MOQ :
300
Price :
$236-256/pieces
Payment Terms :
T/T
Supply Ability :
5K/month
Delivery Time :
10 work days
Packaging Details :
600 ×445 × 120mm; 6.5KG
Type :
Industrial Computer
Display Size :
21.5 inch
Supplier Type :
Factory
Outline Dimension :
520mm*311.8mm*55.98mm
Packing Dimensions :
600 ×445 × 120mm
Net Weight :
5.3KG
Gross Weigh :
6.5KG
Warerproof :
Front Panel Protection: IP65 Rated
Description
21.5 Inch H Type Industrial Panel Pc Embedded Touch Screen PC IP65 Fanless HMI Industrial Intelligent Industrial Computer
21.5 Inch IP65 Industrial Monitor / Fanless Industrial Panel PC

Product Features
  • Precision CNC Milling: High-precision CNC machining ensures stronger sealing, reduces dust intrusion, and improves equipment stability and service life.
  • Ultra-narrow Reinforced TP: Touch frame features an 18mm narrow bezel and 2mm reinforced design, enhancing surface hardness and anti-interference capability.
  • Full Aluminum Construction: Front panel designed to IP65 standard for water and dust protection, providing high overall airtightness and good electromagnetic compatibility (EMC).
  • Fanless Heat Dissipation: Utilizes copper heat blocks combined with heat pipes for efficient continuous thermal management.
  • Capacitive Touch: Full-flat, multi-point projected capacitive (PCAP) touch supporting full lamination.
  • Industrial LCD Panel: Original A+ grade LCD module with wide temperature range and high brightness.
  • I/O Interfaces: Supports 4 Ethernet ports, 6 USB ports, and 8 COM ports with customization options.
  • Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C).
  • Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations.
  • 24/7 Operation: Designed for continuous operation with robust performance and long service life.

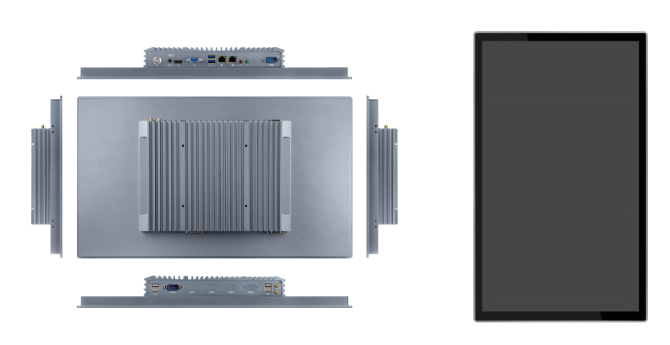

Six Views
21.5 Inch IP65 Industrial Monitor / Fanless Industrial Panel PC

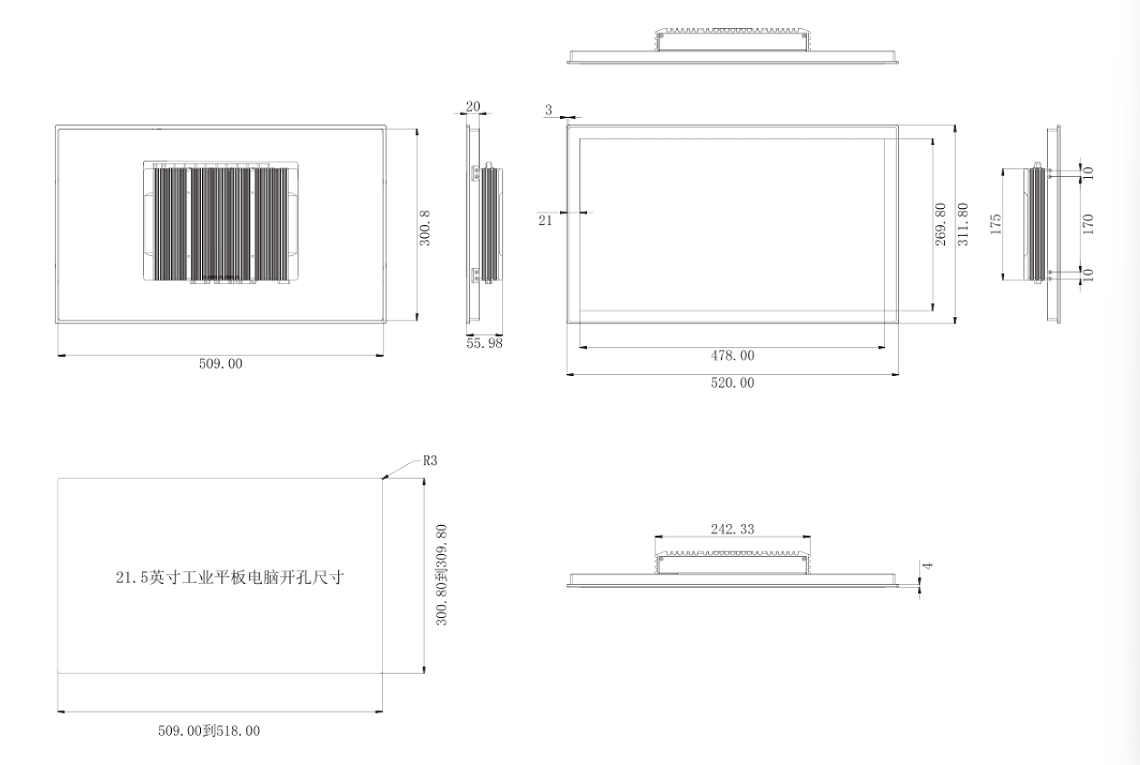

Product Dimension
21.5 Inch IP65 Industrial Monitor / Fanless Industrial Panel PC
I/O Interface Diagram
21.5 Inch IP65 Industrial Monitor / Fanless Industrial Panel PC 21.5 Inch IP65 Industrial Monitor / Fanless Industrial Panel PC
Product Specifications
CPU J1900/J6412/N100/I3/I5/I7/RK3568/RK3588
Memory 4G/8G/16G/32G/64G
Storage 64G/128G/256G/512G/1TB/2TB
Touch Type Multi-point Capacitive / 5-Wire Resistive Touch Driver
Support Windows 7/8/10, Linux, Android
LCD Display 21.5" XGA TFT (1920*1080)
Active Area

478mm*269.8mm
Viewing Angle 89° (L/R/T/B)
Brightness 350 cd/m²
I/O Interfaces 2×RJ-45, 2×USB3.0, 2×USB2.0, 1×RS232/485, 5×RS232, Mini-PCIe slot
Dimensions

520mm*311.8mm*55.98mm
Power Input DC 12V (9-30V optional)
Operating Temp -20°C to 60°C (expandable to -40°C to 80°C)
Installation Methods
1. The cabinet has pre-drilled holes according to the embedded dimensions of the equipment.
21.5 Inch IP65 Industrial Monitor / Fanless Industrial Panel PC
2. Tighten the long screws and nuts onto the snap fasteners.
21.5 Inch IP65 Industrial Monitor / Fanless Industrial Panel PC
3. Four clips are fixed at the threaded hole positions on both sides.
21.5 Inch IP65 Industrial Monitor / Fanless Industrial Panel PC
4. Tighten the long screws to secure the equipment in place.
21.5 Inch IP65 Industrial Monitor / Fanless Industrial Panel PC
Desktop Mounting
21.5 Inch IP65 Industrial Monitor / Fanless Industrial Panel PC
Cantilever Mounting
21.5 Inch IP65 Industrial Monitor / Fanless Industrial Panel PC
Packing List
No. Item Qty
1 Industrial Panel PC 1 unit
2 Power Adapter 1 unit
3 3-pin 5.08 Power Terminal Plug (optional) 1 unit
4 Embedded Snap-In Kit (optional) 1 set
5 Wall-Mount Bracket (Optional) 1 unit
6 Certificate of Conformity 1 sheet
7 Warranty Card 1 sheet
8 User Manual 1 copy
Ordering Information
No. Name Description
1 Ethernet Port Default single port; optional dual or quad ports
2 Serial Port Default 2 × RS232; optional 6 × RS232/RS485
3 USB Default 4 × USB (2 × USB 2.0, 2 × USB 3.0); optional 8 × USB
4 GPIO Optional 4 input / 4 output
Safety Warnings

1. This device is precision electronic equipment with IP65-rated front panel protection. Avoid water splashes or rain exposure.

2. Do not place in humid environments to prevent condensation and component damage.

3. Avoid prolonged direct sunlight or high UV environments to prevent screen damage.

4. Screen brightness is ≥350 cd/m². Avoid outdoor usage in high ambient light.

5. Do not disassemble or repair the device yourself due to high voltage risks.

Recommended operating environment: temperature 0-50°C, relative humidity 10%-70%.
