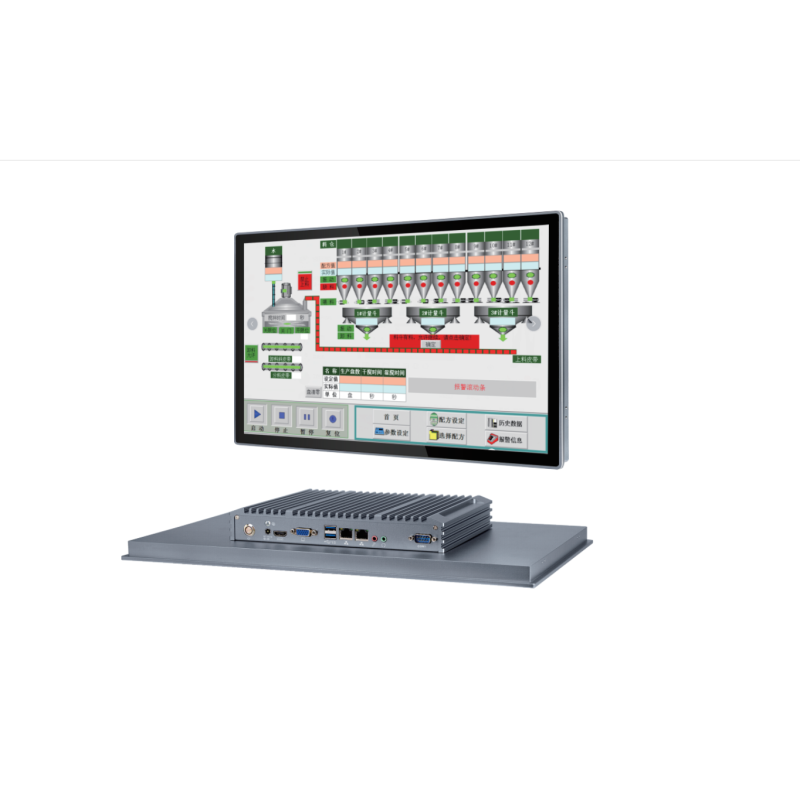

18.5 Inch Fanless Industrial Monitor IP65 Industrial PC Touch Screen Monitor
18.5 Inch Fanless Industrial Monitor IP65 Industrial PC Touch Screen Monitor
18.5 Inch Fanless Industrial Monitor IP65 Industrial PC Touch Screen Monitor
18.5 Inch Fanless Industrial Monitor IP65 Industrial PC Touch Screen Monitor
18.5 Inch Fanless Industrial Monitor IP65 Industrial PC Touch Screen Monitor
18.5 Inch Fanless Industrial Monitor IP65 Industrial PC Touch Screen Monitor
Specifications
Display Size :
18.5 inch
Model Number :
PC185H
MOQ :
300
Payment Terms :
T/T
Supply Ability :
5K/Month
Delivery Time :
10 work days
Packaging Details :
590×445×100mm/5.9KG
Supplier Type :
Factory
Mounting Type :
Embedded
Place of Origin :
Guangdong, China
Brand Name :
YZY
Price :
$214-232/pieces
Type :
Industrial Computer
Description
18.5 Inch H Type Industrial Panel PC Embedded Touch IP65 Fanless HMI Industrial Touch Screen PC Intelligent Industrial Computer
18.5 Inch Fanless Industrial Monitor IP65 Industrial PC Touch Screen Monitor
Product Features
  • Precision CNC Milling: High-precision machining ensures stronger sealing, reduces dust intrusion, and improves equipment stability and service life.
  • Ultra-narrow Reinforced TP: 18mm narrow bezel with 2mm reinforced design enhances surface hardness and anti-interference capability.
  • Full Aluminum Construction: IP65-rated front panel for water and dust protection with excellent electromagnetic compatibility (EMC).
  • Fanless Heat Dissipation: Copper heat blocks with heat pipes ensure stable operation under high-load conditions.
  • Capacitive Touch: Full-flat, multi-point projected capacitive (PCAP) touch supporting full lamination, compatible with 5-wire resistive touch.
  • Industrial LCD Panel: Original A+ grade LCD module with wide viewing angles, temperature range, and high brightness.
  • I/O Interfaces: Supports 4 Ethernet, 6 USB, and 8 COM ports with customization options.
  • Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C) with 9-36V wide-range input.
  • Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations with custom configurations available.
  • 24/7 Operation: Designed for continuous use with robust performance and long service life.

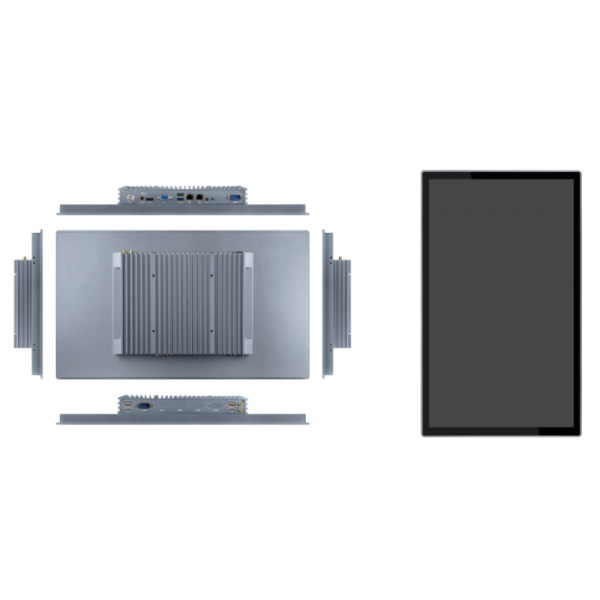

Product Six Views
18.5 Inch Fanless Industrial Monitor IP65 Industrial PC Touch Screen Monitor

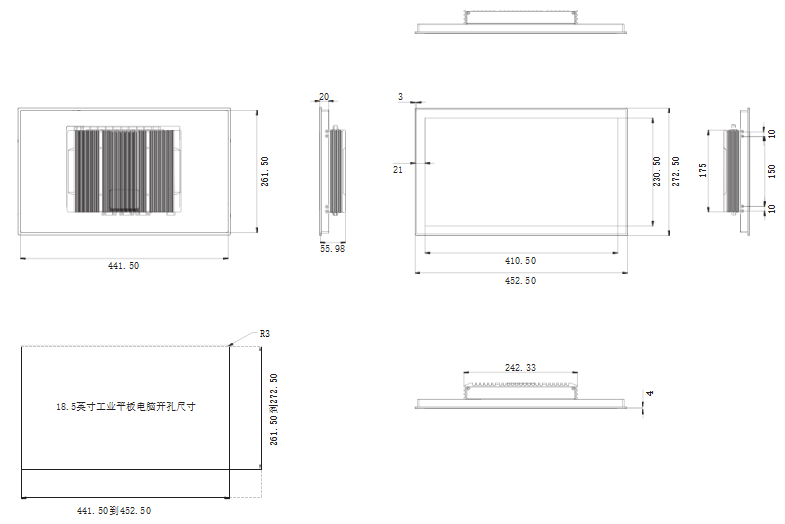

Product Dimensions
18.5 Inch Fanless Industrial Monitor IP65 Industrial PC Touch Screen Monitor
I/O Interface Diagram
18.5 Inch Fanless Industrial Monitor IP65 Industrial PC Touch Screen Monitor 18.5 Inch Fanless Industrial Monitor IP65 Industrial PC Touch Screen Monitor
Extensible Interface
18.5 Inch Fanless Industrial Monitor IP65 Industrial PC Touch Screen Monitor
Product Specifications
CPU: J1900/J6412/N100/I3/I5/I7/RK3568/RK3588
Memory: 4G/8G/16G/32G/64G
Storage: 64G/128G/256G/512G/1TB/2TB
Touch Type: Multi-point Capacitive / 5-Wire Resistive
Touch Driver Support: Win-dows 7/8/10, Linux, Android
LCD Display: 18.5" XGA TFT (1920*1080)
Active Area: 410.5mm × 230.5mm
Viewing Angle: 89° (L/R/T/B)
Brightness: 350 cd/m²
I/O Interfaces: 2×RJ-45, 2×USB3.0, 2×USB2.0, 1×RS232/485, 5×RS232, Mini-PCIe slot
Dimensions: 452.50mm × 272.50mm × 55.98mm
Power Input: DC 12V (9-30V optional)
Operating Temp: -20°C to 60°C (expandable to -40°C to 80°C)
Installation Methods
Embedded Snap-In Mounting

1. The cabinet has pre-drilled holes according to the embedded dimensions of the equipment.

18.5 Inch Fanless Industrial Monitor IP65 Industrial PC Touch Screen Monitor

2. Tighten the long screws and nuts onto the snap fasteners.



18.5 Inch Fanless Industrial Monitor IP65 Industrial PC Touch Screen Monitor

3. Four clips are fixed at the threaded hole positions on both sides.

18.5 Inch Fanless Industrial Monitor IP65 Industrial PC Touch Screen Monitor

4. Tighten the long screws to secure the equipment in place.


18.5 Inch Fanless Industrial Monitor IP65 Industrial PC Touch Screen Monitor

Desktop Mounting

Cantilever Mounting
18.5 Inch Fanless Industrial Monitor IP65 Industrial PC Touch Screen Monitor 18.5 Inch Fanless Industrial Monitor IP65 Industrial PC Touch Screen Monitor
Packing List
No. Item QTY
1 Industrial Panel PC 1 unit
2 Power Adapter 1 unit
3 3-pin 5.08 Power Terminal Plug (optional) 1 unit
4 Embedded Snap-In Kit (optional) 1 set
5 Wall-Mount Bracket (Optional) 1 unit
6 Certificate of Conformity 1 sheet
7 Warranty Card 1 sheet
8 User Manual 1 copy
Ordering Information
No. Name Description
1 Ethernet Port Default single port; optional dual or quad ports
2 Serial Port Default 2 × RS232; optional 6 × RS232/RS485
3 USB Default 4 × USB (2 × USB 2.0, 2 × USB 3.0); optional 8 × USB
4 GPIO Optional 4 input / 4 output
Safety Warnings
1. This device is precision electronic equipment with IP65-rated front panel protection. Avoid water splashes or rain exposure.
2. Do not place in humid environments to prevent condensation and component damage.
3. Avoid prolonged direct sunlight or high UV environments to prevent screen damage.
4. Screen brightness is ≥350 cd/m². Avoid outdoor usage in high ambient light.
5. Do not disassemble or repair the device yourself due to high voltage risks.
Recommended operating environment: temperature 0-50°C, relative humidity 10%-70%.
