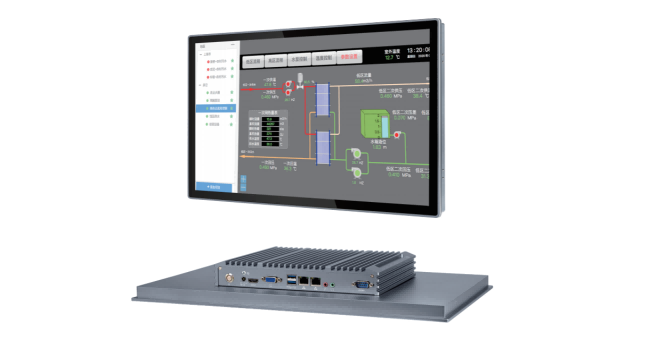

15.6 Inch Touch Screen Industrial Monitor IP65 Fanless H Type Industrial Panel PC
15.6 Inch Touch Screen Industrial Monitor IP65 Fanless H Type Industrial Panel PC
15.6 Inch Touch Screen Industrial Monitor IP65 Fanless H Type Industrial Panel PC
15.6 Inch Touch Screen Industrial Monitor IP65 Fanless H Type Industrial Panel PC
15.6 Inch Touch Screen Industrial Monitor IP65 Fanless H Type Industrial Panel PC
15.6 Inch Touch Screen Industrial Monitor IP65 Fanless H Type Industrial Panel PC
Specifications
Brand Name :
YZY
Model Number :
PC156H
Place of Origin :
Guangdong, China
MOQ :
300
Price :
$214-232/pieces
Payment Terms :
T/T
Supply Ability :
5K/Month
Delivery Time :
10 work days
Packaging Details :
590×445×100mm/5.9KG
Type :
Touch Screen Industrial Monitor
Display Size :
15.6 inch
Supplier Type :
Factory
Packing Dimensions :
590 ×445 × 100mm
Net Weight :
3.2KG
Gross Weight :
4.1KG
Description
15.6 Inch H Type Industrial Panel PC

High-performance embedded touch screen PC with IP65 fanless design for industrial HMI applications.

15.6 Inch Touch Screen Industrial Monitor IP65 Fanless H Type Industrial Panel PC
Key Features
  • Precision CNC Milling: Enhanced sealing reduces dust intrusion and improves equipment stability
  • Ultra-narrow Reinforced TP: 18mm bezel with 2mm reinforcement for increased surface hardness
  • Full Aluminum Construction: IP65-rated front panel with excellent EMC protection
  • Fanless Heat Dissipation: Copper heat blocks with pipes for stable high-load operation
  • Capacitive Touch: Multi-point PCAP touch with full lamination support
  • Industrial LCD Panel: A+ grade module with wide viewing angles and temperature range
  • Extensive I/O: Supports 4 Ethernet, 6 USB, and 8 COM ports with customization
  • Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C)
  • Multiple Mounting Options: Embedded, wall-mounted, cantilever, and desktop configurations
  • 24/7 Operation: Designed for continuous industrial use with robust performance

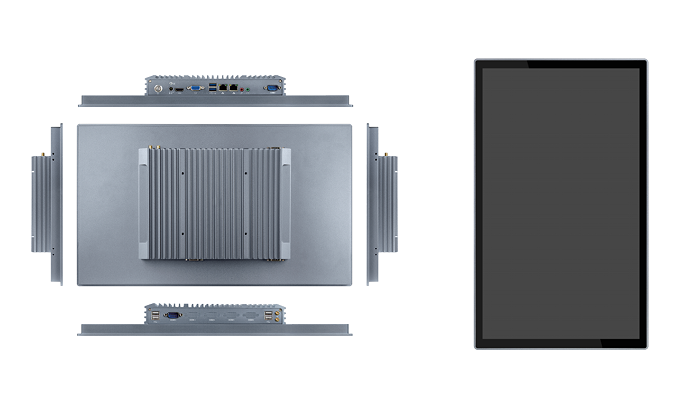

Product Views
15.6 Inch Touch Screen Industrial Monitor IP65 Fanless H Type Industrial Panel PC

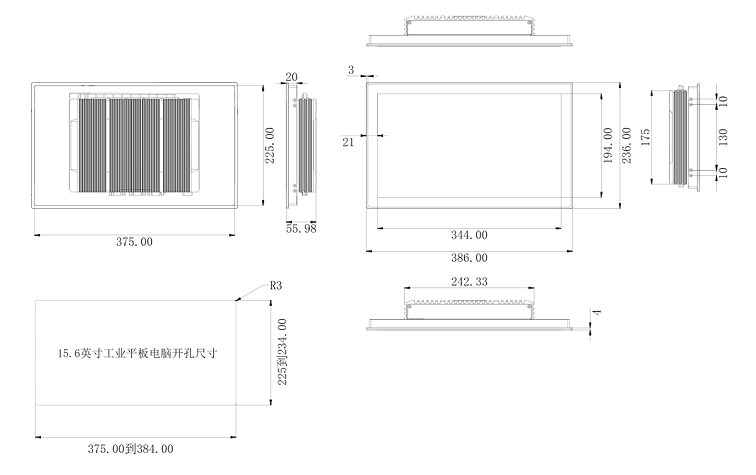

Dimensions
15.6 Inch Touch Screen Industrial Monitor IP65 Fanless H Type Industrial Panel PC
I/O Interface Configuration
15.6 Inch Touch Screen Industrial Monitor IP65 Fanless H Type Industrial Panel PC 15.6 Inch Touch Screen Industrial Monitor IP65 Fanless H Type Industrial Panel PC
Extensible Interface
15.6 Inch Touch Screen Industrial Monitor IP65 Fanless H Type Industrial Panel PC
Technical Specifications
CPU J1900/J6412/N100/I3/I5/I7/RK3568/RK3588
Memory 4G/8G/16G/32G/64G
Storage 64G/128G/256G/512G/1TB/2TB
Touch Type Multi-point Capacitive / 5-Wire Resistive
Display 15.6" XGA TFT (1920*1080)
Viewing Angle 89° (L/R/T/B)
Brightness 350 cd/m²
Power Input DC 12V (9-30V optional)
Operating Temp -20°C to 60°C (expandable to -40°C to 80°C)
Installation Methods
Embedded Snap-In Mounting
  1. Cabinet requires pre-drilled holes matching equipment dimensions
  2. Tighten long screws and nuts onto snap fasteners
  3. Secure four clips at threaded hole positions
  4. Final tightening of long screws completes installation
15.6 Inch Touch Screen Industrial Monitor IP65 Fanless H Type Industrial Panel PC 15.6 Inch Touch Screen Industrial Monitor IP65 Fanless H Type Industrial Panel PC 15.6 Inch Touch Screen Industrial Monitor IP65 Fanless H Type Industrial Panel PC 15.6 Inch Touch Screen Industrial Monitor IP65 Fanless H Type Industrial Panel PC
Alternative Mounting Options
15.6 Inch Touch Screen Industrial Monitor IP65 Fanless H Type Industrial Panel PC 15.6 Inch Touch Screen Industrial Monitor IP65 Fanless H Type Industrial Panel PC
Standard Package Contents
Item Description Qty
Industrial Panel PC Main unit 1
Power Adapter Standard power supply 1
3-pin Power Terminal Plug Optional accessory 1
Embedded Snap-In Kit Optional mounting hardware 1 set
Documentation Manual, warranty, certificates 3 sheets
Configuration Options
Feature Options
Ethernet Ports Default single port; optional dual or quad ports
Serial Ports Default 2 × RS232; optional 6 × RS232/RS485
USB Ports Default 4 × USB (2 × USB 2.0, 2 × USB 3.0); optional 8 × USB
GPIO Optional 4 input / 4 output
Safety Information
  • IP65-rated front panel provides protection against water splashes but not immersion
  • Avoid humid environments to prevent condensation damage
  • Protect from prolonged direct sunlight to prevent screen degradation
  • Not recommended for outdoor use in high ambient light conditions
  • Qualified personnel only for service due to high voltage components

Recommended operating environment: 0-50°C temperature, 10%-70% relative humidity.
