YCXX28-101 10.1Inch IP65 Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor
YCXX28-101 10.1Inch IP65 Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor
YCXX28-101 10.1Inch IP65 Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor
YCXX28-101 10.1Inch IP65 Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor
YCXX28-101 10.1Inch IP65 Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor
YCXX28-101 10.1Inch IP65 Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor
YCXX28-101 10.1Inch IP65 Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor
YCXX28-101 10.1Inch IP65 Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor
YCXX28-101 10.1Inch IP65 Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor
YCXX28-101 10.1Inch IP65 Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor
Specifications
Brand :
BOE
Operating System :
Win-dows 7/8/10 / Linux/ VxWorks/ QNX/Android11/12/13
Display Size :
10.1 inch
Power Input :
AC 100-240V 50/60Hz (CCC, CE certified)
Brightness :
300
Audio :
Realtek ACL662 Audio Controller
I/O interface :
HDMI/RJ45/VGA/DC/DVI
Resolution :
1280*800
Display Type :
IPS
Power supply :
DC 12V
Operating Temperature :
-10-60
Touch :
USB interface multi-touch
Outline Dimension :
283.7*186.2*59.9mm
Supplier Type :
Factory
Backlight Type :
LED
Mounting Type :
Embedded
Brand Name :
YZY
Model Number :
YCXX7-8
Certification :
CE、EMC
Place of Origin :
Guangdong, China
MOQ :
100
Price :
$145-165/pieces
Payment Terms :
T/T
Supply Ability :
5K/Months
Delivery Time :
30-45Days
Packaging Details :
BOX
Type :
Monitor
Description
YCXX28-101 10.1Inch IP65 Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor
The YCXX28-101 10.1-inch industrial touch display features a 1280*800 resolution with wide temperature range, pressure-resistant multi-touch capabilities, and IP65 rating. This compact embedded monitor is built with a full aluminum alloy structure featuring fanless, fully enclosed design and low power consumption, specifically engineered for diverse environmental conditions to ensure long-term stable operation in harsh industrial settings.
YCXX28-101 10.1Inch IP65 Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor YCXX28-101 10.1Inch IP65 Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor YCXX28-101 10.1Inch IP65 Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor

Robust Construction for Industrial Applications
The compact design supports multiple installation methods. Built with military-grade aluminum alloy structure and efficient heat dissipation design (compatible with fans), this monitor ensures stable operation in harsh environments while increasing service life, safety, and efficiency with zero noise operation.
Key Features
  • RTD2483 Chip for high-performance processing
  • Full military-grade aluminum alloy construction for high temperature, corrosion, and pressure resistance
  • Fine workmanship and long service life suitable for harsh environments
  • Efficient heat dissipation design compatible with fan cooling
  • Simplified interior without redundant wiring for uninterrupted operation
  • Capacitive touch screen with intuitive operation and high durability
  • Compatible with resistive touch technology
  • Comprehensive input and output interfaces for connecting various equipment
YCXX28-101 10.1Inch IP65 Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor
Technical Specifications
Panel Parameters
Parameter Specification
Size 10.1"
Resolution 1280*800
View Angle 85/85/85/85 (L/R/U/D)
Color Chroma: 16.7M
Brightness 300 cd/m²
Contrast 600:1
Response Time 6.5 ms
Display Area 135.36(H) X216.576(V) mm
Pixel Pitch 0.1692(H) X 0.1692(V)
Screen & I/O Parameters
Parameter Specification
Touch Type Capacitive touch screen
Resolution 500DPI
Input Method Handwriting or capacitive pen
Surface Hardness 7H
Calibration Supported
HDMI Support HDMI data output, up to 1080P
RJ45 Touch interface
VGA 1 port
DVI 1 port
Earphone Jack 3.5mm standard interface
Hardware Configuration
Component Specification
CPU RTD2483
System Language English, Chinese
Video Input PC-RGB: Format up to 1920*1080@60HZ, Color 16bit, 24bit, 32bit
Key Functions AUTO, MENU, POWER, LEFT, RIGHT
Power Specifications
Parameter Specification
DC Input DC 12~24V
Power Consumption (Max) 15W
Power Input AC 100-240V 50/60Hz (CCC, CE certified)
Power Output DC12V / 4A

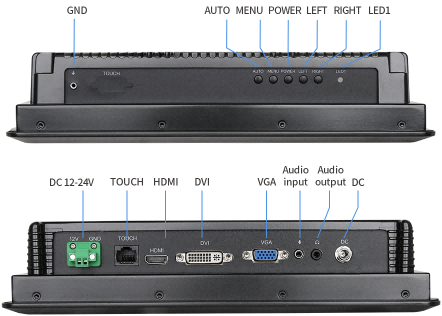

I/O Interface Panel
YCXX28-101 10.1Inch IP65 Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor

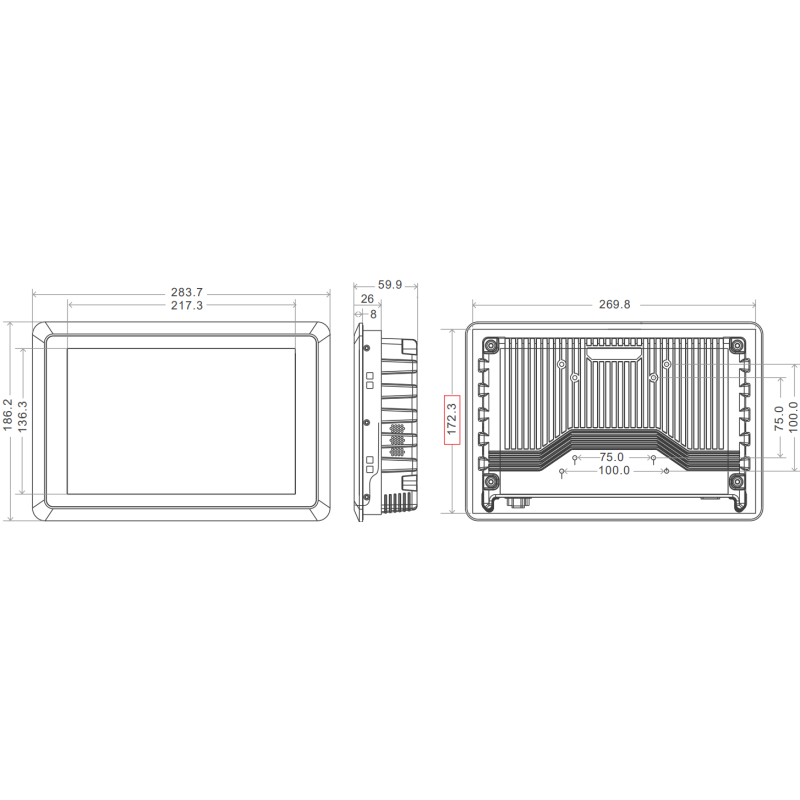

Dimensional Information
YCXX28-101 10.1Inch IP65 Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor
Overall Dimensions: 283.7*186.2*59.9mm(L*W*H)
