Specifications
Brand Name :
ymiho
Model Number :
TP-100IR
Place of Origin :
Wuxi, China
MOQ :
100
Packaging Details :
carton packaging
Delivery Time :
15 work days
Description

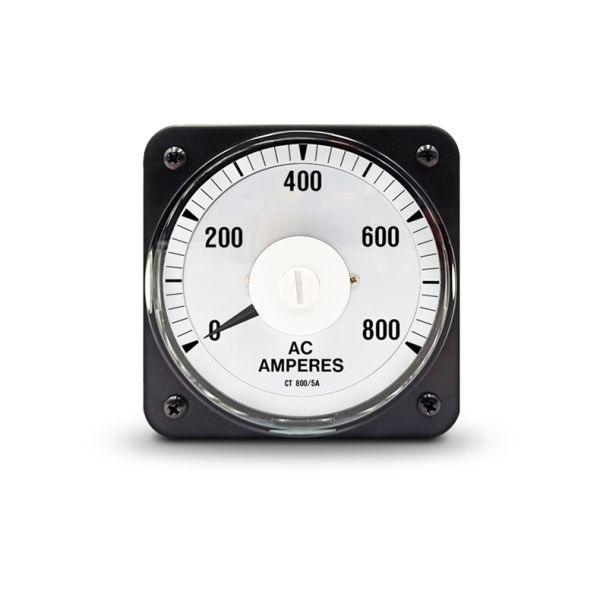

0-800A AC Ammeter Panel Meter – 240° Wide Angle, IP42 Rated
Our wide-angle analog AC ammeter delivers 0-800A measurement with CT 800/5A, 240° dial clarity, and IP42 protection. Ideal for marine switchboards, power stations, and industrial control systems. High accuracy, easy panel mount, and reliable performance in harsh environments.
Product Overview
This high-performance analog AC ammeter is engineered for precision current monitoring in marine, power station, and industrial environments. With a 240° wide-angle dial and high-contrast pointer, it provides clear, intuitive readings of AC current from 0 to 800 amperes, paired with a CT ratio of 800/5A for accurate measurement in high-current systems.
Key Features
  • Wide-Angle Dial: 240° scale for enhanced readability and reduced eye strain
  • Rugged Construction: Metal casing with IP42 ingress protection, resistant to vibration, salt spray, and oil mist
  • High Accuracy: Class 1.5 precision for reliable current measurement in critical applications
  • CT Compatibility: Designed for use with CT 800/5A, ideal for high-current power systems
  • Easy Installation: Standard panel mount design with 101*101mm cutout, compatible with marine switchboards and industrial control panels
  • Marine & Industrial Grade: Designed to operate in temperatures from -25℃ to +55℃, ideal for shipboard use, power stations, and mobile power systems
Applications
  • Marine main switchboards and emergency power systems
  • Industrial power control and distribution panels
  • Mobile power stations and generator sets
  • Petrochemical and offshore drilling operations
Technical Specifications
Product Name Wide-Angle Analog AC Ammeter
Measurement Range 0-800A AC
CT Ratio 800/5A
Accuracy Class Class 1.5
Frequency 50/60Hz
Dial Angle 240° Wide Angle
Protection Grade IP42
Operating Temperature -25℃ ~ +55℃
Housing Material Metal Casing with Transparent Cover
Mounting Type Panel Mount
Panel Cutout Size 101 * 101 mm
Overall Panel Size 110 * 110 mm
Applications Marine Switchboards, Power Stations, Industrial Control Systems
