LCD Display 12V Digital Battery Capacity Tester
LCD Display 12V Digital Battery Capacity Tester
LCD Display 12V Digital Battery Capacity Tester
LCD Display 12V Digital Battery Capacity Tester
LCD Display 12V Digital Battery Capacity Tester
LCD Display 12V Digital Battery Capacity Tester
LCD Display 12V Digital Battery Capacity Tester
LCD Display 12V Digital Battery Capacity Tester
LCD Display 12V Digital Battery Capacity Tester
LCD Display 12V Digital Battery Capacity Tester
LCD Display 12V Digital Battery Capacity Tester
LCD Display 12V Digital Battery Capacity Tester
Specifications
Model Number :
LY6
Brand Name :
ymiho
Place of Origin :
Wuxi, China
Color :
black
keyword :
12v battery capacity tester
MOQ :
100
Price :
$1-5 / piece
Packaging Details :
carton packaging
Delivery Time :
15 work days
Description
LCD Display 12V Digital Battery Capacity Tester
Product Overview
The LY6 liquid display module is specifically designed for monitoring remaining power in rechargeable batteries. This versatile tester accurately detects capacity levels for various lithium and lead-acid batteries, making it ideal for instruments, measuring devices, mobile portable equipment, cleaning devices, balance cars, electric vehicles, and more. Features clear percentage-based display.
Key Features
  • Compatible with lead-acid and lithium batteries
  • LY6 display window size compatible with LY5 models
  • Built-in anti-reverse protection
  • Dust-proof construction

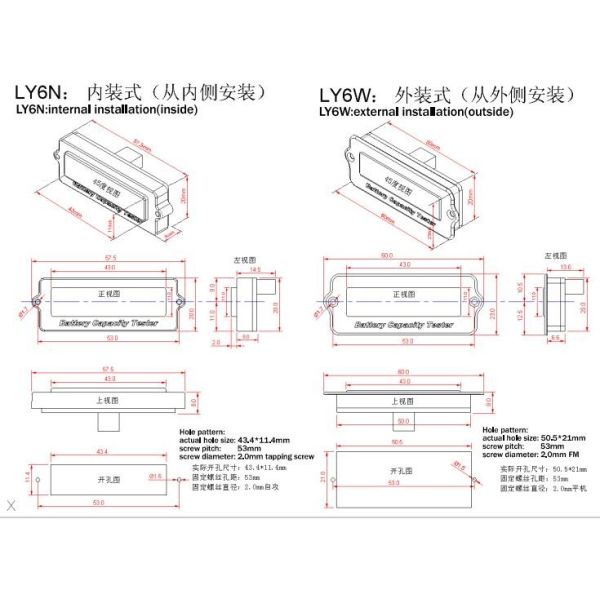

  • Supports both internal and external installation
Compatible Battery Specifications
Users can select from the following specifications using the back button:
Lead-Acid Batteries:
  • 12V lead-acid
  • 24V lead-acid
  • 48V lead-acid
Lithium Battery Configurations:
  • Single cell lithium 3.7V (for single cell only)
  • 2 cell lithium 7.4V
  • 3 cell lithium 12V
  • 4 cell lithium 15V
  • 5 cell lithium 18V
  • 6 cell lithium 22V
  • 7 cell lithium 24V
  • 8 cell lithium 28V
  • 9 cell lithium 33V
  • 10 cell lithium 36V
  • 11 cell lithium 40V
  • 12 cell lithium 44V
  • 13 cell lithium 48V
  • 14 cell lithium 52V
  • 15 cell lithium 58V
Technical Parameters
Parameters Min Typ Max Unit
Operation voltage range 1 (single lithium/low voltage) 3.2 3.7 5.0 VDC
Operation voltage range 2 (MV) 6.0 12.0 30.0 VDC
Operation voltage range 3 (conventional) 8.0 36.0 63.0 VDC
Working power (LCD Backlight ON) / 5 8 mA
Power consumption (Backlight off, LCD) / 200 300 uA
Voltage accuracy / ±0.5 ±1.0 %
Temperature range 0 ±25 ±50 ℃
Product Images
LCD Display 12V Digital Battery Capacity Tester LCD Display 12V Digital Battery Capacity Tester LCD Display 12V Digital Battery Capacity Tester LCD Display 12V Digital Battery Capacity Tester
Packaging & Delivery
LCD Display 12V Digital Battery Capacity Tester
