390 Series Advanced Analog Multimeter
390 Series Advanced Analog Multimeter
390 Series Advanced Analog Multimeter
390 Series Advanced Analog Multimeter
390 Series Advanced Analog Multimeter
390 Series Advanced Analog Multimeter
390 Series Advanced Analog Multimeter
390 Series Advanced Analog Multimeter
390 Series Advanced Analog Multimeter
390 Series Advanced Analog Multimeter
Specifications
Measuring Current Range :
0.05~10A
Measuring Voltage Range :
10~1000V
Model Number :
390
Brand Name :
ymiho
Place of Origin :
Wuxi, China
Dimensions :
158*105*40mm
Measuring Capacitance Range :
100pF~25
Measuring Inductance Range :
null
Measuring Resistance Range :
1~10K
Operating Temperature :
0~40℃
color :
orange
Carton Size :
53x38x32cm
G.W. :
19kg
N.W. :
18kg
Standard Packing :
32pcs/CTN
HS Code :
90303200
MOQ :
100
Price :
$8.50-10.30 / piece
Packaging Details :
carton packaging
Delivery Time :
15 work days
Description
390 Series Advanced Analog Multimeter
Product Overview
Professional 50A analog multimeter with comprehensive testing capabilities for electrical and electronic applications.
Key Features
  • 25 test ranges with 12 working functions
  • Protective slide holster for safe storage and transport
  • Overload protection with dual fuses (0.5A & 10A)
  • Adjustable back tilt stand with hook-up hole
  • Capacitance testing with CT-1 tool kit
  • Continuity testing with audible buzzer
  • Leakage current and diode testing
  • Transistor and LED testing capabilities
  • Over voltage protection: CAT III 500V, CAT II 1000V
Technical Specifications
Range Measurement Accuracy
AC Voltage 10/50/250/1000V ±4.0% F.S.
DC Voltage 0.1/2.5/10/50/250/1000V ±3.0% F.S.
DC Current 0.05/2.5/25/250mA, 10A ±3.0% F.S.
Resistance X1, X10, X100, X1K(C1), X10K(0.2~20MΩ) ±4.0% of Arc.
C1 100pF~0.025uF/2.5uF/25uF ±3.0% F.S.
C2 Large capacitors up to 2000uF direct testing -
NULL Center ±DCV 5V/25V Test -
Input Impedance DC 20 KΩ/V, AC 9 KΩ/V -
Decibels Test 20~ +62dB with external 0.047uF/400V capacitor -
Battery Test 1.5V, 9V -
Dimensions 158×105×40mm -
Weight 350g (approx.) -
Power Supply 6F22 9V battery (1pc), AA 1.5V batteries (2pcs) -

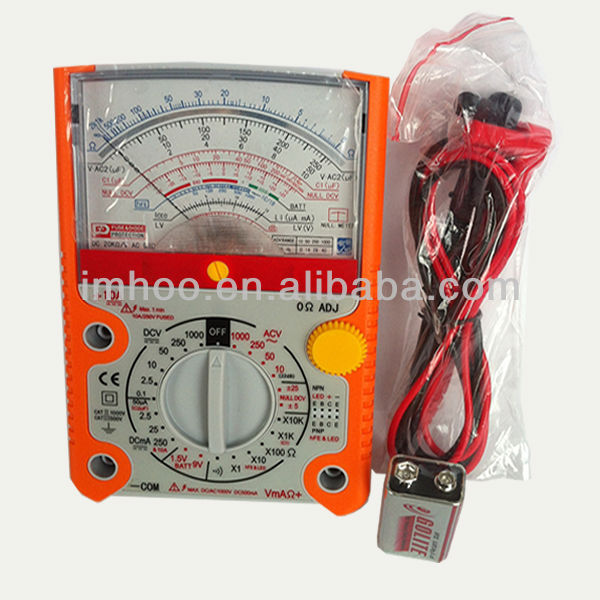

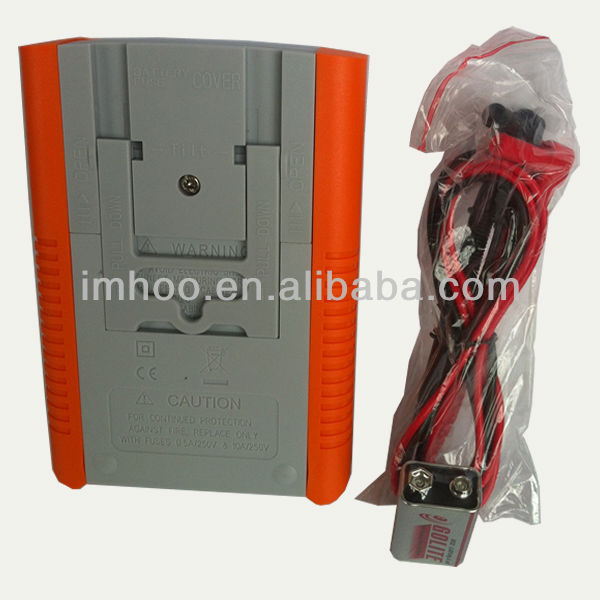

Product Images
390 Series Advanced Analog Multimeter
390 Series Advanced Analog Multimeter

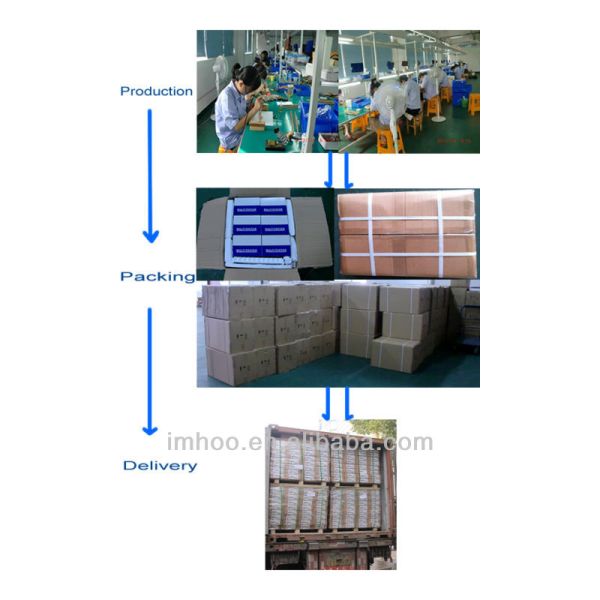

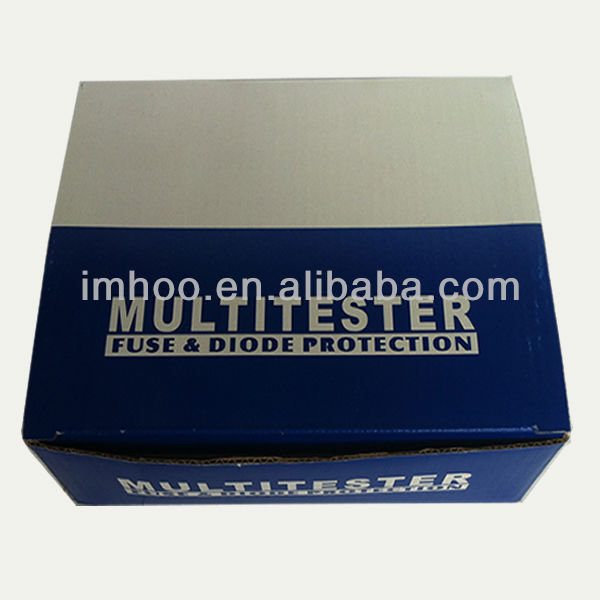

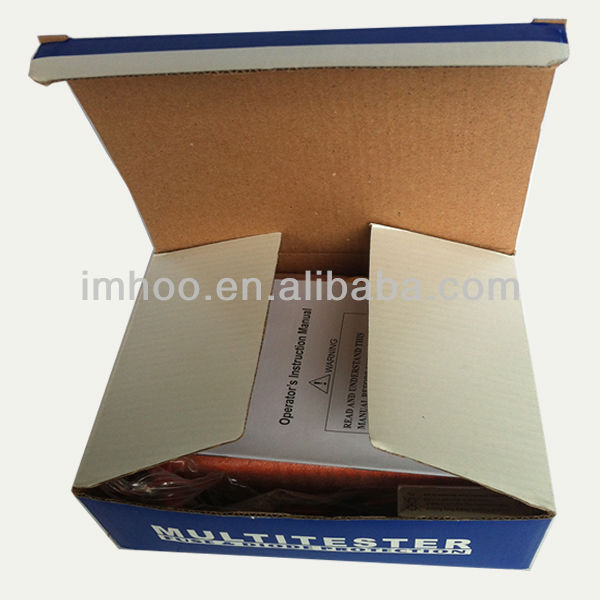

Packaging & Shipping
390 Series Advanced Analog Multimeter
390 Series Advanced Analog Multimeter
390 Series Advanced Analog Multimeter
Our Services
  • High quality products at competitive prices
  • Reliable delivery commitments honored on time
  • Quality assurance with replacement guarantee
  • OEM manufacturing services available
  • Custom product development based on customer requirements
Company Information
390 Series Advanced Analog Multimeter
Frequently Asked Questions
Are you a factory or trading company?
We are a factory.
Where is your factory located? How can I visit there?
Our factory is located in Wuxi City, Jiangsu Province, China, about 1 hour by train from Shanghai. All clients, domestic and international, are warmly welcome to visit us!
How can I get some samples?
We are honored to offer you samples for evaluation.
How does your factory handle quality control?
Quality is our priority. IMHOO maintains strict quality control processes from initial production through final inspection to ensure product excellence.
