60x60mm Analog And Digital Panel Meter Ammeter with 0-1500A Measuring Range
60x60mm Analog And Digital Panel Meter Ammeter with 0-1500A Measuring Range
60x60mm Analog And Digital Panel Meter Ammeter with 0-1500A Measuring Range
60x60mm Analog And Digital Panel Meter Ammeter with 0-1500A Measuring Range
60x60mm Analog And Digital Panel Meter Ammeter with 0-1500A Measuring Range
60x60mm Analog And Digital Panel Meter Ammeter with 0-1500A Measuring Range
60x60mm Analog And Digital Panel Meter Ammeter with 0-1500A Measuring Range
60x60mm Analog And Digital Panel Meter Ammeter with 0-1500A Measuring Range
60x60mm Analog And Digital Panel Meter Ammeter with 0-1500A Measuring Range
60x60mm Analog And Digital Panel Meter Ammeter with 0-1500A Measuring Range
60x60mm Analog And Digital Panel Meter Ammeter with 0-1500A Measuring Range
60x60mm Analog And Digital Panel Meter Ammeter with 0-1500A Measuring Range
60x60mm Analog And Digital Panel Meter Ammeter with 0-1500A Measuring Range
60x60mm Analog And Digital Panel Meter Ammeter with 0-1500A Measuring Range
Specifications
Model Number :
TP-60K
Brand Name :
ymiho
Place of Origin :
Wuxi, China
MOQ :
100
Price :
$7.50-10 / piece
Accuracy Class :
1.5~2.5
Display Type :
Analog And Digital
Supply Voltage :
600V AC
Dimensions :
60x60mm
Operating Temperature :
0 to 40℃
Measuring Range :
0-1500A
Function :
Ammeter
Full Scale deflection angle :
90°
Operating Humidity Range :
25 to 80%RH
Storage Humidity Range :
25 to 80%RH
Packaging Details :
carton packaging
Delivery Time :
15 work days
Description
High Quality Movement Customizable DC Micro Digital Ampere Panel Meters
The TP-60K is a high-performance analog ammeter designed as a direct replacement for the YOKOGAWA 2093 series. With a compact 60×60mm panel mounting size, this instrument delivers reliable current measurement for industrial applications requiring precise monitoring and operational safety.
Product Features
  • Direct replacement for YOKOGAWA 2093 series meters
  • Compact 60×60mm panel mounting design

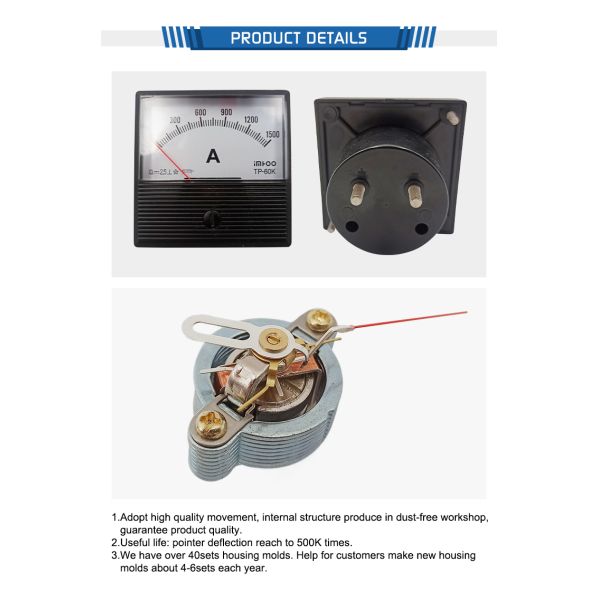

  • Magnetoelectric moving-coil principle for stable performance
  • Suitable for harsh industrial environments including welding and spark equipment
  • High reliability and precise current measurement
Technical Specifications
Model TP-60K

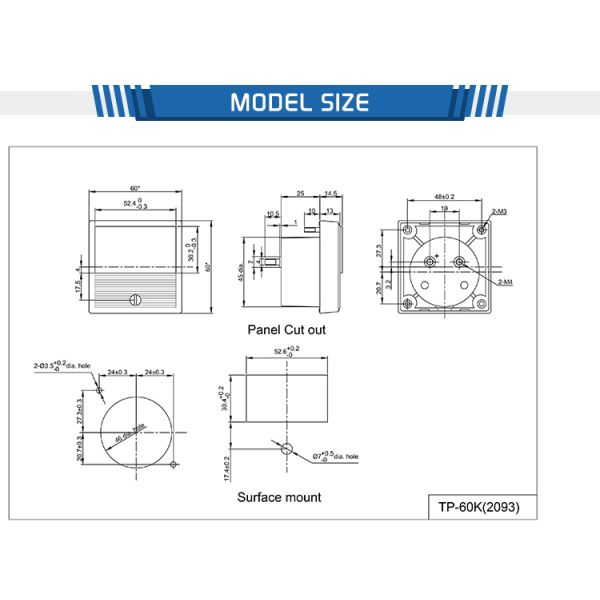

Dimensions 60×60mm
YOKOGAWA Model No. 2093
Scale Length 47.5mm
Full Scale Deflection Angle 90°
Withstand Voltage 50Hz, 2000V for one minute
Product Images
60x60mm Analog And Digital Panel Meter Ammeter with 0-1500A Measuring Range 60x60mm Analog And Digital Panel Meter Ammeter with 0-1500A Measuring Range 60x60mm Analog And Digital Panel Meter Ammeter with 0-1500A Measuring Range 60x60mm Analog And Digital Panel Meter Ammeter with 0-1500A Measuring Range 60x60mm Analog And Digital Panel Meter Ammeter with 0-1500A Measuring Range 60x60mm Analog And Digital Panel Meter Ammeter with 0-1500A Measuring Range 60x60mm Analog And Digital Panel Meter Ammeter with 0-1500A Measuring Range 60x60mm Analog And Digital Panel Meter Ammeter with 0-1500A Measuring Range 60x60mm Analog And Digital Panel Meter Ammeter with 0-1500A Measuring Range 60x60mm Analog And Digital Panel Meter Ammeter with 0-1500A Measuring Range 60x60mm Analog And Digital Panel Meter Ammeter with 0-1500A Measuring Range 60x60mm Analog And Digital Panel Meter Ammeter with 0-1500A Measuring Range
