YOKOGAWA 2094 Replacement 80x80mm Panel Meter with 2.5 Accuracy Class Analog Ammeter
YOKOGAWA 2094 Replacement 80x80mm Panel Meter with 2.5 Accuracy Class Analog Ammeter
YOKOGAWA 2094 Replacement 80x80mm Panel Meter with 2.5 Accuracy Class Analog Ammeter
YOKOGAWA 2094 Replacement 80x80mm Panel Meter with 2.5 Accuracy Class Analog Ammeter
YOKOGAWA 2094 Replacement 80x80mm Panel Meter with 2.5 Accuracy Class Analog Ammeter
YOKOGAWA 2094 Replacement 80x80mm Panel Meter with 2.5 Accuracy Class Analog Ammeter
YOKOGAWA 2094 Replacement 80x80mm Panel Meter with 2.5 Accuracy Class Analog Ammeter
YOKOGAWA 2094 Replacement 80x80mm Panel Meter with 2.5 Accuracy Class Analog Ammeter
YOKOGAWA 2094 Replacement 80x80mm Panel Meter with 2.5 Accuracy Class Analog Ammeter
YOKOGAWA 2094 Replacement 80x80mm Panel Meter with 2.5 Accuracy Class Analog Ammeter
YOKOGAWA 2094 Replacement 80x80mm Panel Meter with 2.5 Accuracy Class Analog Ammeter
YOKOGAWA 2094 Replacement 80x80mm Panel Meter with 2.5 Accuracy Class Analog Ammeter
Specifications
Model Number :
TP-80K
Brand Name :
ymiho
Place of Origin :
Wuxi, China
MOQ :
100
Price :
$10.60-14.60 / piece
Accuracy Class :
2.5
Display Type :
Analog Only
Supply Voltage :
NULL
Dimensions :
80x80mm
Operating Temperature :
0-40℃
Measuring Range :
20A
Brand :
YOKOGAWA
Type :
industrial meter
Max current :
20A
Accuracy :
2.5
Needle :
flattened/round needle
Case color :
Black/translucence
Scale :
Black character on white background
Case Material :
ABS
Base Material :
FR-ABS
OEM :
yes
Packaging Details :
carton packaging
Delivery Time :
15 work days
Description
Replacement YOKOGAWA 2094 Panel Analog Ammeter
The TP-60K is a high-performance analog pointer ammeter designed as a direct replacement for the YOKOGAWA 2093 series. With a compact 60×60mm panel mounting size, this instrument delivers reliable current measurement for industrial applications requiring precise monitoring and operational safety. Adopting the magnetoelectric moving-coil principle, it ensures stable performance even in harsh working environments typical of welding and spark machining equipment.
Product Specifications
Current, Voltage & Frequency Meters
Type Model Suspension Type Operating Principle Accuracy DC Ranges AC Ranges Frequency Ranges
DC Ammeter/Voltmeter 2071-2073, 2074A-2076A, 2093A,2094A Taut Band Moving coil 2.5 (2076A,2086A:1.5) 10uA-30A 50uA-30A /
2081-2083, 2084A-2086A Pivot & jewel Moving coil 2.5 50uA-30A
2093A,2094A
AC Ammeter/Voltmeter 2081-2083, 2084A-2086A Taut Band Mean Rectifier 2.5 200uA-20mA 3-300V 40-50Hz-300-500Hz
2081-2083, 2084A-2086A Pivot & jewel Mean Rectifier 2.5
2093A,2094A
AC Moving Iron 2081-2083, 2084A-2086A Pivot & jewel Moving Iron 2.5 (2086A:1.5) 50mA-30A 10-600V 40-50Hz-300-500Hz
2093A,2094A
Frequency Meter 2074A-2076A, 2093A,2094A Taut Band Root mean square 2.5 (2086A:1.5) / 100-230V 40-50Hz-300-500Hz
2093A,2094A Pivot & jewel Root mean square 2.5 (2086A:1.5) / 100-230V 40-50Hz-300-500Hz
Needle Length Specifications
Model Flattened Needle (Black) Round Needle (Red)
2071,20812929
2072,20823434
2073,208347.547.5
2074A,2084A63.562
2075A,2085A80.579
2076A,2086A103101
2093A47.547.5
2094A63.562
Panel Size Specifications
Model Panel Size (mm)
2071,208142×50
2072,208246×55
2073,208356×67
2074A,2084A67×80
2075A,2085A83×100
2076A,2086A100×120
2093A60×60
2094A80×80
Product Images

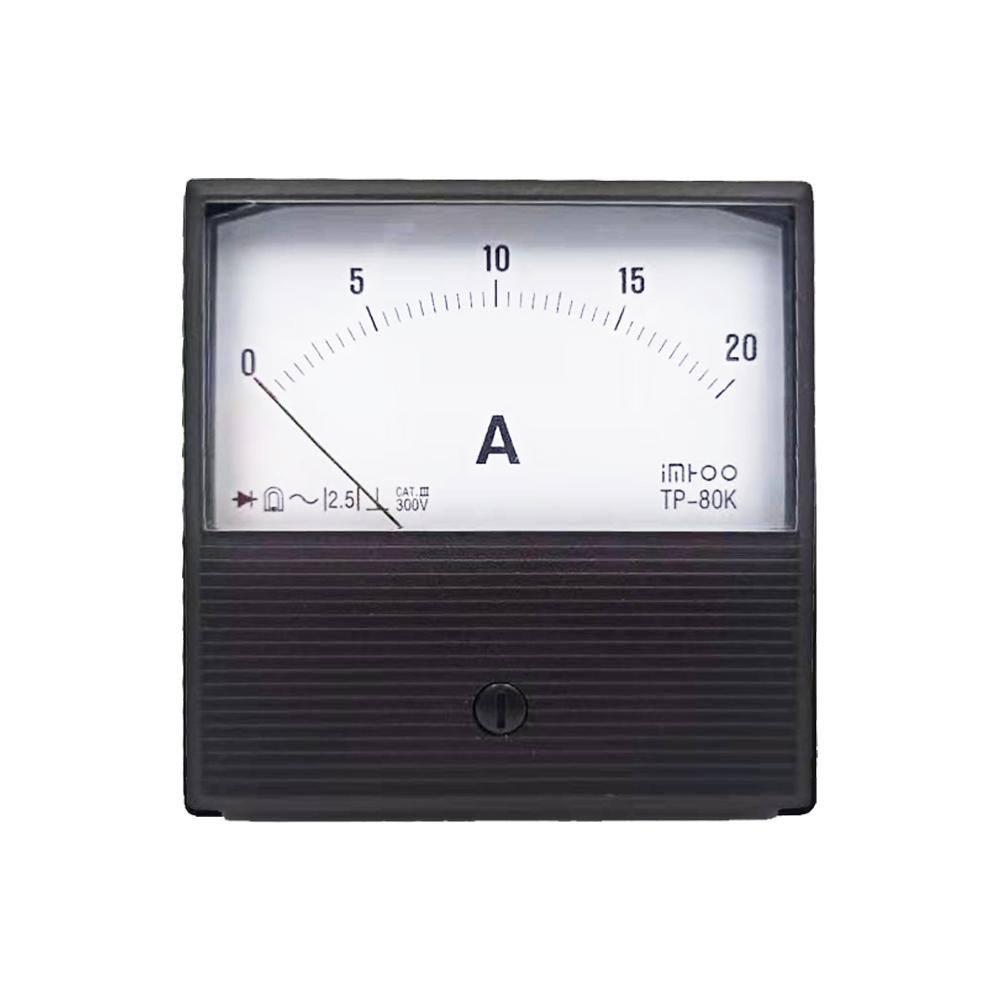

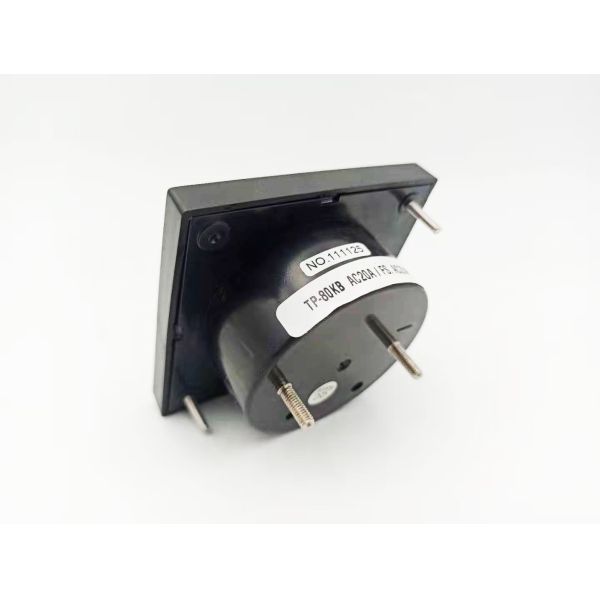

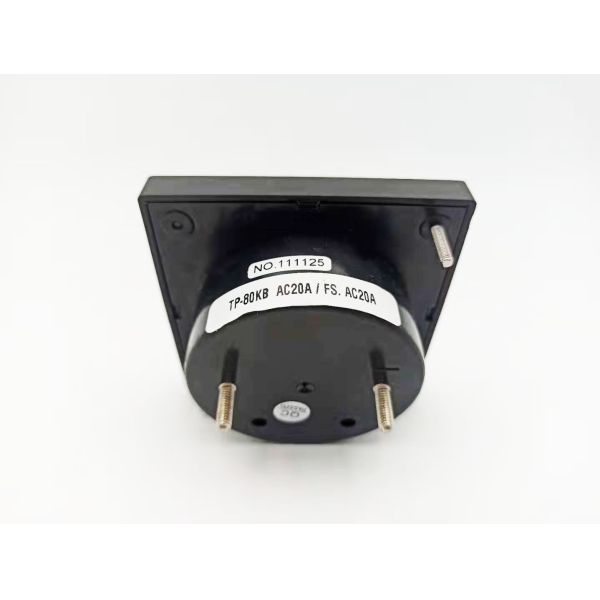

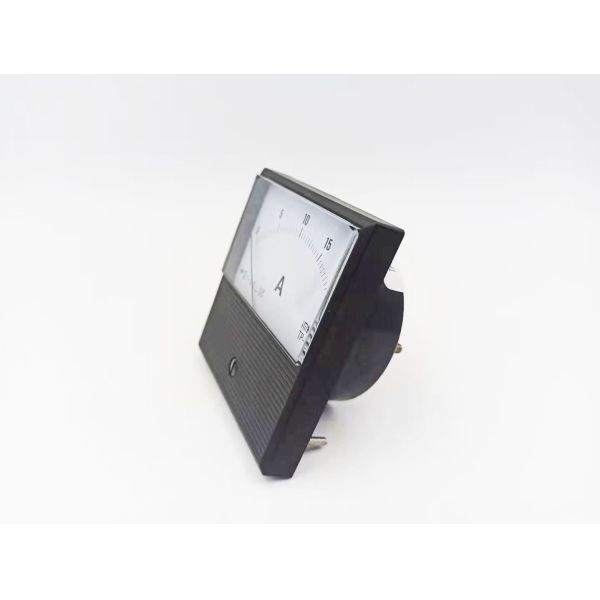

YOKOGAWA 2094 Replacement 80x80mm Panel Meter with 2.5 Accuracy Class Analog Ammeter YOKOGAWA 2094 Replacement 80x80mm Panel Meter with 2.5 Accuracy Class Analog Ammeter YOKOGAWA 2094 Replacement 80x80mm Panel Meter with 2.5 Accuracy Class Analog Ammeter YOKOGAWA 2094 Replacement 80x80mm Panel Meter with 2.5 Accuracy Class Analog Ammeter
