Specifications
Measuring Current Range :
0.05mA~10A
Measuring Voltage Range :
0.1~1000V
Model Number :
390A
Brand Name :
ymiho
Place of Origin :
Wuxi, China
Dimensions :
160x105x40mm
Measuring Capacitance Range :
100pF~25uF
Measuring Inductance Range :
NULL
Measuring Resistance Range :
0.2~20MΩ
Operating Temperature :
0-40℃
color :
orange
MOQ :
100
Price :
$8.60-10.80 / piece
Packaging Details :
carton packaging
Delivery Time :
15 work days
Description

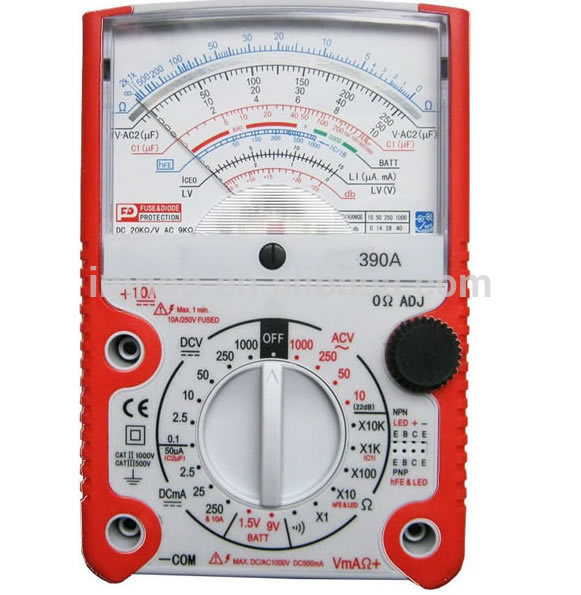

390A 1000V Analog Multi Tester
Professional-grade analog multitester designed for accurate electrical measurements across multiple ranges and functions.
Key Features
  • 21 test ranges with 11 working functions
  • High input impedance: DC 20 KΩ/V, AC 9 KΩ/V
  • Strong magnet pivot with jewel movement built-in
  • Compact soft protective holster included
  • Overload protection with two fast-acting fuses (0.5A & 10A)
  • Adjustable tilt stand with hook-up place
  • Continuity test with buzzer (HD-390A model)
  • Transistor and LED testing via special Hfe socket
Technical Specifications
Measurement Type Range Accuracy
AC Voltage 10/50/250/1000V ±4.0% F.S.
DC Voltage 0.1/2.5/10/50/250/1000V ±3.0% F.S.
DC Current 0.1/0.5/2.5/25/250mA, 10A ±3.0% F.S.
Resistance X1, X10, X100, X1K, X10K ±4.0% of Arc
Additional Testing Capabilities

Capacitance testing with additional tool kit (CT-1):

  • C1: 100pF~0.025uF/2.5uF/25uF (±3.0% F.S.)
  • C2: Large capacitors up to 2000uF directly via tester jacks

Additional functions include decibels test (-20~+62dB), battery test (1.5V, 9V), leakage current & diode test.

Physical Specifications

Dimensions: 160×105×40mm

Weight: 340g approximately

Power Supply: 6F22 9V (1pc), AA size 1.5V (2pcs)

Over voltage Category: CAT III 500V, CAT II 1000V

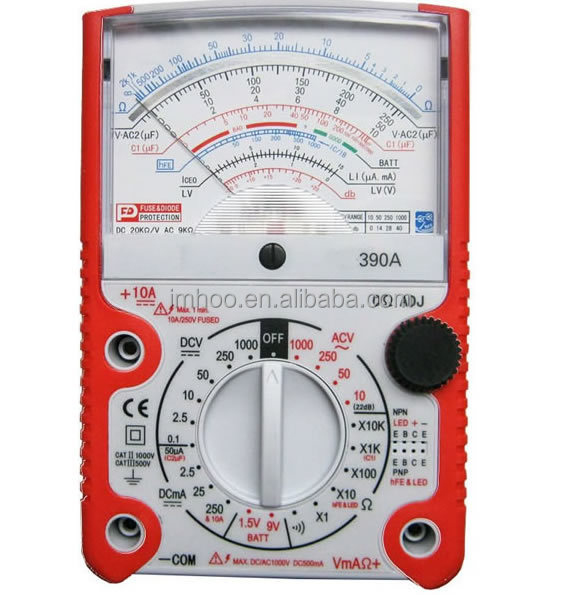

Product Images
