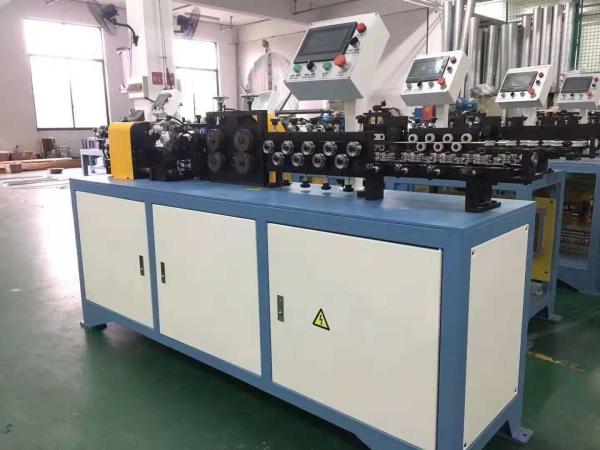

PLC Control Hollow Pipe Wire Straightener And Cutter 1.12KW Power 50mm - 99m Cutting Length
PLC Control Hollow Pipe Wire Straightener And Cutter 1.12KW Power 50mm - 99m Cutting Length
PLC Control Hollow Pipe Wire Straightener And Cutter 1.12KW Power 50mm - 99m Cutting Length
PLC Control Hollow Pipe Wire Straightener And Cutter 1.12KW Power 50mm - 99m Cutting Length
Specifications
Brand Name :
qipang
Model Number :
KB-20
Certification :
CE
Place of Origin :
China
MOQ :
1 UNIT
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 units per month
Delivery Time :
15-20 working day
Packaging Details :
Wooden box
Name :
hollow pipe wire straightening and cutting machine
Type :
Straightener & Cutter
Voltage :
220/380V
Dimension(L*W*H) :
1500mm* 800mm*600mm
Power(W) :
1.12KW
Keywords :
wire straightening and cutting machine
Automation :
High Degree Automatic
Cutting length :
50mm~99m
Application :
hollow pipe
Model :
KB-20
Description

PLC control hollow pipe wire straightening and cutting machine customizable manufacturer

1, Brief description

The CNC three-stage clamping dieless copper pipe automatic cutting machine developed by our factory is different from the traditional two-half clamp copper pipe cutting machine. It draws on the structural principle of the lathe head and adopts a three-clamp type clamp. The three angles simultaneously apply theforce. The copper tube straightening cuts off the design of the guide piece of the chipless cutter. When the fixture is replaced, it is not necessary to re-adjust the concentricity of the clamp, and the replacement process is more convenient. When the pipe is broken, the deformation degree of the pipe is minimized to ensure the appearance quality of the pipe.
2, Technical Parameters
Serial number
Project
Parameters and specifications
1
Equipment model
KB-20
2
Applicable pipe
Steel/Aluminum/Copper pipe
3
Processing range
20mm or less
4
Cutting length
50mm~99mm
5
Number of cuts at a time
1
6
Output Power
1.12KW
7
Feeding speed
Fastest 60m/minute
