Specifications
Brand Name :
qipang
Model Number :
JZQ0.1-0.2/24 AV
Certification :
SGS
Place of Origin :
Made-in-China
MOQ :
MOQ≥1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000PC/month
Delivery Time :
1-7 Working Day
Packaging Details :
Wooden bag
Material :
iron copper
Colour :
Drill Pipe Straightening Machine
Product Keywords :
Metal Tube Straightener
Features :
Make wire straightener
weight :
3 kg
Brand :
Qipang
Application :
0.1-0.2 mm Wire
Size :
1m*0.7m*1m
Description

High speed Rotary Steel Wire Straightening Machine suit 0.1-0.2 mm diameter line 24 roller

Wire Straightener Straight Solid line 0.1-0.2mm​

Wire Straightener Machine specification:

Type JZQ0.1-0.2/24
Machine roller Diameter 7 mm
Length * width * height (mm) 220*70*80 (mm)
Weight 2.5kg (not including the )
Distance to install screw holes 51 mm
Distance between two wheels 11 mm
Roller thickness 3mm
Mounting roller screw diameter 3mm

Wire Straightener Machine structure features:

The aluminum wire, iron wire, copper wire and stainless steel wire suitable for different wire diameters and strips are wound into different ring diameters or different arcs, and the length error is less than 1MM. Usually used in iron wire products, fan mesh, crafts, lampshades and other industries.

Wire Straightener Machine Parameter:
Model: JZQ--24/7AV is suitable for the material between the cable. 0.1---0.2mm.
(Note: Two pieces: 24 rounds Single 12 rounds are customized according to customer requirements)
School linear material specifications: Φ0.05mm----Φ0.2mm
School linear material: low, medium and high carbon steel wire, copper wire, welding wire, enameled wire, du magnesium wire, and other filaments
Straight diameter of the straightening wheel: Φ7mm
Straight wheel groove type: V-groove, U-groove
The number of straight wheels is: 24 rounds
Straight line form: single group: horizontal straightener; combination: vertical + horizontal + traction straight
The straightening wheel is adjusted as follows: the moving part of the straightening wheel is 6 wheels individually adjusted, and the other 18 wheels are controlled by the handle.
The total quality of the straightener: bare metal 2.5KG, even about 3 kg of packaging.
The size of the straightener is: 24 wheels and two pieces: length 220mm × width 70mm × height 70mm

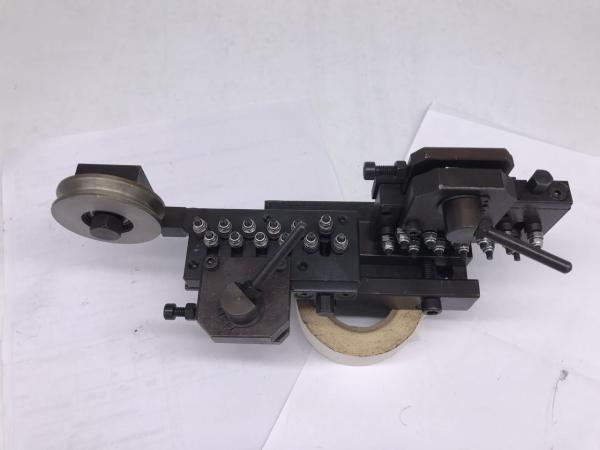

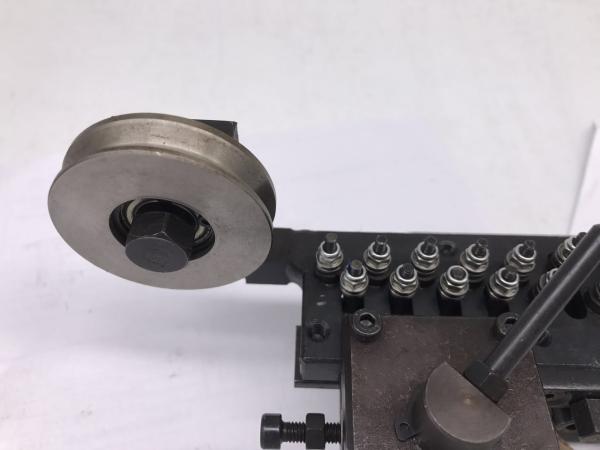

Product show :

High speed Wire Straightener Machine Rotary Steel 0.1-0.2 mm line 24 roller

High speed Wire Straightener Machine Rotary Steel 0.1-0.2 mm line 24 roller
