Specifications
Brand Name :
qipang
Model Number :
JZQ0.8-1.5/18 AV
Certification :
SGS
Place of Origin :
Made-in-China
MOQ :
MOQ≥1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000PC/month
Delivery Time :
1-7 Working Day
Packaging Details :
Wooden bag
Material :
iron copper
Colour :
Black and wite
Product Keywords :
Wire Straightening Cutting Machine
Features :
Wire Straightener And Cutter
weight :
8 kg
Brand :
Qipang
Application :
0.5-1.5mm Wire
Size :
350mm×160mm×120mm
Description

High speed Wire Straightener Steel Wire Straightener suit 0.8-1.5 mm diameter line 18 roller

Wire Straightener Straight Solid line 0.8-1.5 mm​

Wire Straightener Machine Parameter:
Straightener line Specifications: Φ0.8mm-Φ1.5mm
Straightener line Material: low, medium, high carbon steel wire, copper wire, tungsten molybdenum wire, welding wire, wire, etc.
Straightener wheel diameter: Φ23mm
Straightener wheel groove type: V-groove, R-groove
Straightener wheel Quantity: 18 rounds
Straightener line Form: Single group: Horizontal straightener; Combination: Vertical + horizontal alignment
Straightener wheel is adjusted to: integral opening and closing + 8 straightening wheels for independent movement adjustment
Wire straightener Total quality: bare metal 8KG, even packaging about 10 kg.
Wire straightener size: 18 wheels, two pieces: length 350 mm × width 120 mm height 120 mm

Wire Straightener Machine specification:

Type JZQ0.8-1.5/18
Machine roller Diameter 23mm
Length * width * height 350 mm × 120 mm 120 mm
Weight 8kg (not including the wooden box )
Distance to install screw holes 85 mm
Distance between two wheels 26 mm
Roller thickness 7 mm
Mounting roller screw diameter

7 mm

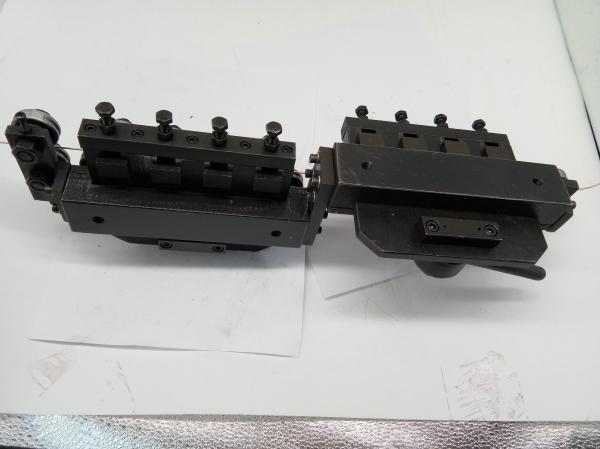

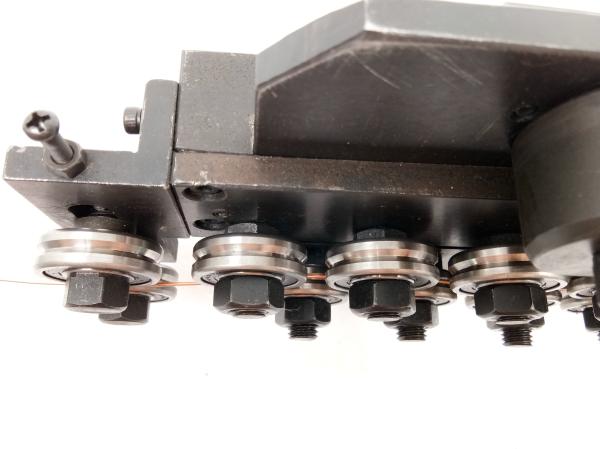

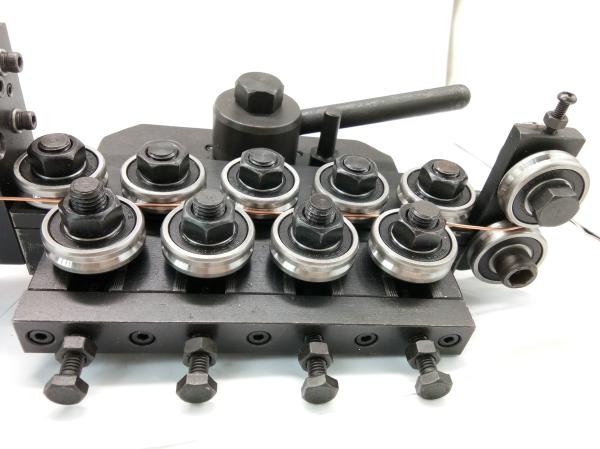

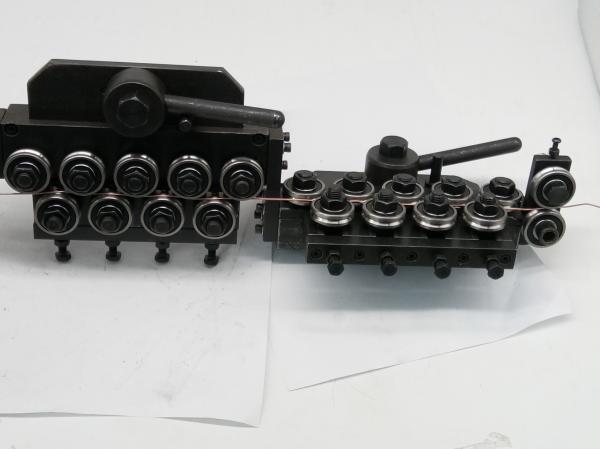

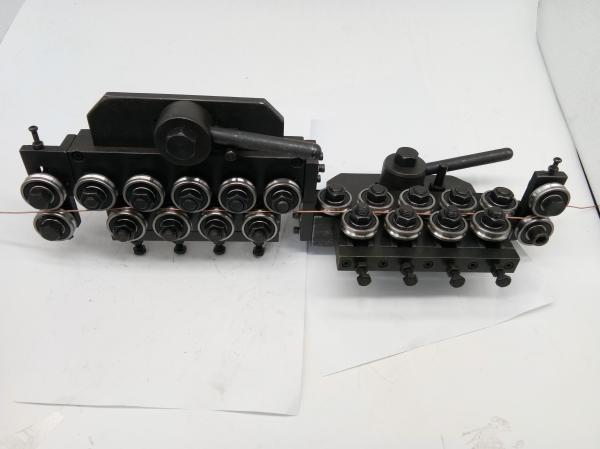

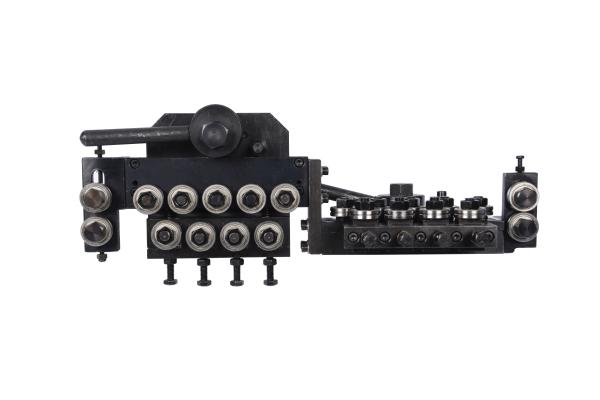

Wire Straightener Machine Product show :

Horizontal Wire Straightener And Cutter Straightening Wire Machine

Horizontal Wire Straightener And Cutter Straightening Wire Machine


Horizontal Wire Straightener And Cutter Straightening Wire Machine
