Specifications
Brand Name :
qipang
Model Number :
JZQ 4-6 /14 AV
Certification :
SGS
Place of Origin :
Made-in-China
MOQ :
MOQ≥1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000PC/month
Delivery Time :
1-7 Working Day
Packaging Details :
Wooden bag
Material :
iron copper
Colour :
Wire Straightener And Cutter
Product Keywords :
Wire Rod Straightening And Cutting Machine
Features :
Make copper tube straightener
weight :
11 kg
Brand :
Qipang
Application :
14 roller
Size :
398mm×120mm×130mm
Description

Diameter 42 mm 14 Roller Wire Straightener Straightener suit 4-6 mm diameter line

Wire Straightener Straight Solid line 4-6 mm​

Wire Straightener Machine Parameter:
Straightener line Specifications: 4-6 mm
Straightener line material: low, medium and high carbon steel wire, copper wire, tungsten molybdenum wire, welding wire, wire, etc.
Straightener wheel diameter: Φ42 mm
Straightener wheel groove type: V groove, R groove
Straightener wheel Quantity: 14 rounds
Straightener line form: single group: horizontal straightener; combination: vertical + horizontal or pneumatic alignment.
Straightener wheel is adjusted to: integral integral opening + single alignment wheel independent movement adjustment
Wire straightener Total quality: bare metal 10 KG, even packaging 20 KG
Wire straightener size: 14 wheels, two pieces: length 398mm × width 130mm × height 130mm


Wire Straightener Machine Features:

This machine adopts computer stepping motor feeding, has segment counting, total counting function, precise structure, convenient operation, steamed head feeding, avoiding the phenomenon that the wire material is scratched, and is used for manufacturing in the hardware industry, toy industry, stationery. Line products such as industry, garment industry, lighting industry, jewelry industry, electronics industry and other electrical products and handicrafts, such as: 8-word buckle, D-shaped buckle, hoist buckle, square buckle, triangle buckle, 9-button, Sheep eye, carabiner, metal sling, right angle buckle, packing buckle, wooden buckle, trousers steel buckle, S hook, double Thong hook, hanger hook, metal hook, eye accessories, rack series, shoe rack, CD rack, Fan net cover series, wire mesh blue series, screen, chain, double hook chain, bead chain, protection chain, return chain, shelf, bicycle blue, luggage, kitchen daily necessities, bathroom wire basket, supermarket basket , supermarket shopping cart accessories.

Wire Straightener Machine specification:

Type JZQ4-6/14
Machine roller Diameter 42mm
Length * width * height 350 mm × 120 mm 120 mm
Weight 9kg (not including the wooden box )
Distance to install screw holes 100 mm
Distance between two wheels 26 mm
Roller thickness 6mm
Mounting roller screw diameter 7 mm

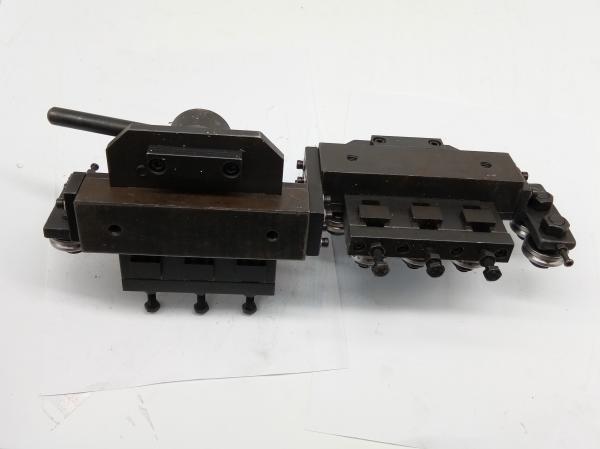

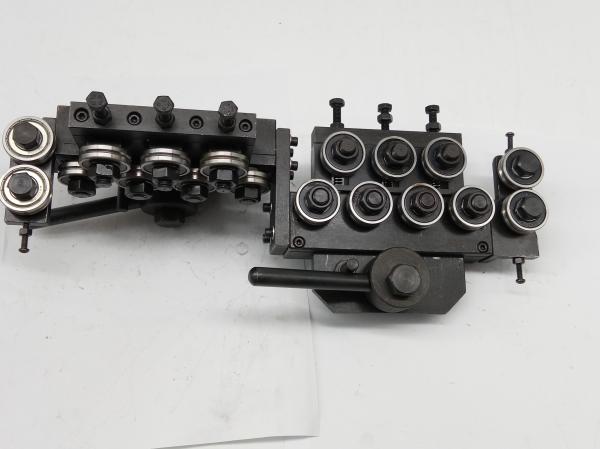

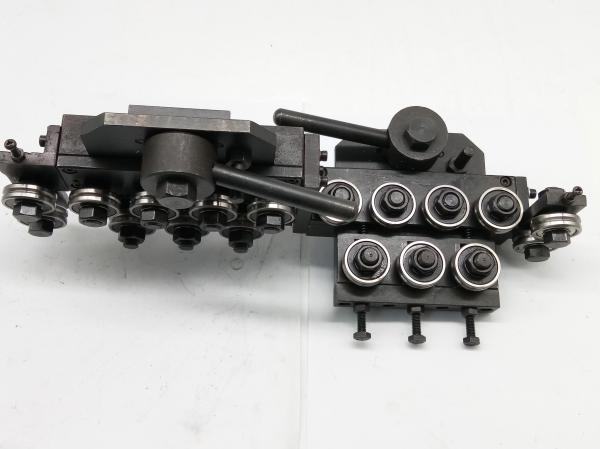

Product show :
