Servo Drive Wire Straightener Machine 34 Roller High Precision No Noise
Servo Drive Wire Straightener Machine 34 Roller High Precision No Noise
Servo Drive Wire Straightener Machine 34 Roller High Precision No Noise
Servo Drive Wire Straightener Machine 34 Roller High Precision No Noise
Servo Drive Wire Straightener Machine 34 Roller High Precision No Noise
Servo Drive Wire Straightener Machine 34 Roller High Precision No Noise
Servo Drive Wire Straightener Machine 34 Roller High Precision No Noise
Servo Drive Wire Straightener Machine 34 Roller High Precision No Noise
Servo Drive Wire Straightener Machine 34 Roller High Precision No Noise
Servo Drive Wire Straightener Machine 34 Roller High Precision No Noise
Specifications
Brand Name :
qipang
Model Number :
JZQ0.3-0.5/34 AV
Certification :
SGS
Place of Origin :
Shanghai
MOQ :
MOQ≥1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000PC/month
Delivery Time :
1-7 Working Day
Packaging Details :
Wooden bag
Material :
iron copper
Colour :
Copper Pipe Straightening Tool
Product Keywords :
Coiled Tubing Straightener
Features :
Bar Straightening Machine
weight :
3.5 kg
Brand :
Qipang
Application :
0.3-0.5 mm Wire
Size :
310mm×100mm×90mm
Description

High speed Wire Rod Straightening Machine suit 0.3-0.5 mm diameter line 34 roller made in china

Wire Straightener Straight Solid line 0.3-0.5 mm​

Wire Straightener Machine Parameter:
Straightener line specification: Φ0.2mm----Φ0.5mm
Straightener line material: stainless steel wire, copper wire, tungsten molybdenum wire, alignment of thin wires such as low, medium and high carbon steel wires.
Straightener roller Diameter: Φ12mm
Straightener roller type: V-groove, R-groove, U-groove
Number of Straightener rollers: 34 rounds
Straightener line Form: Single group: Horizontal straightener; Combination: Vertical horizontal alignment.
Straightener roller adjustment: Pneumatic integral opening and closing Individual positioning straight wheel independent movement adjustment. .
Wire straightener Total quality: bare metal 3.5 kg, including packaging about 5 kg.
Wire straightener Size: 34 wheels: length 310mm × width 90mm × height 90mm

Wire Straightener Machine Main features: no need to straighten the material, no need to open the mold to produce, you need to bend the shape as long as it is on a plane, our machines can meet your requirements

1. Servo drive, stable performance;

2. High precision, no noise;

3. Easy to operate, using microcomputer-specific controller, intelligent molding, efficient, power saving;

4. Automatic straightening, feeding, forming, cutting and recording the quantity;

5. Feeding wire wheel, straightening wheel and forming wheel Germany adopts high-quality alloy and has high wear resistance and long service life after vacuum heat treatment.

6. It is suitable for the rounding and various forming of various metals (round, flat, square, hexagonal, etc.) such as steel wire, iron wire, stainless steel wire and aluminum wire.

Wire Straightener Machine specification:

Type JZQ0.3-0.5/34
Machine roller Diameter 12 mm
Length * width * height (mm) 310*90*90 (mm)
Weight 3.5kg (not including the )
Distance to install screw holes 108 mm
Distance between two wheels 14 mm
Roller thickness 5mm
Mounting roller screw diameter 6mm

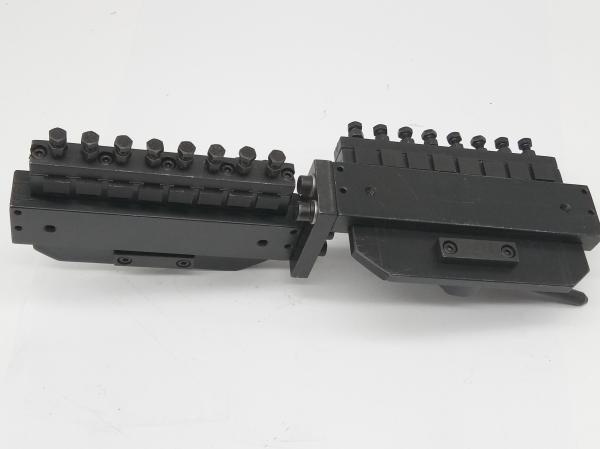

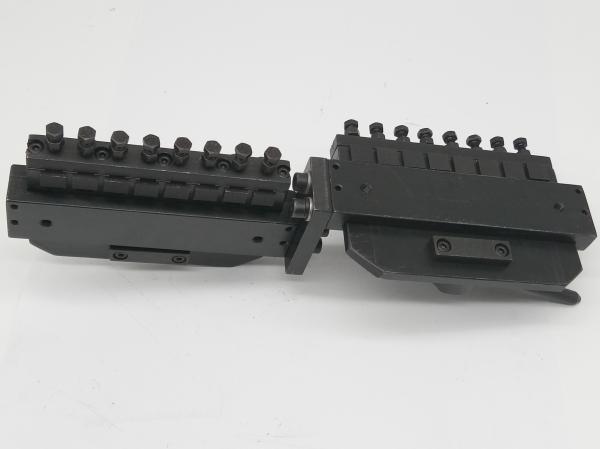

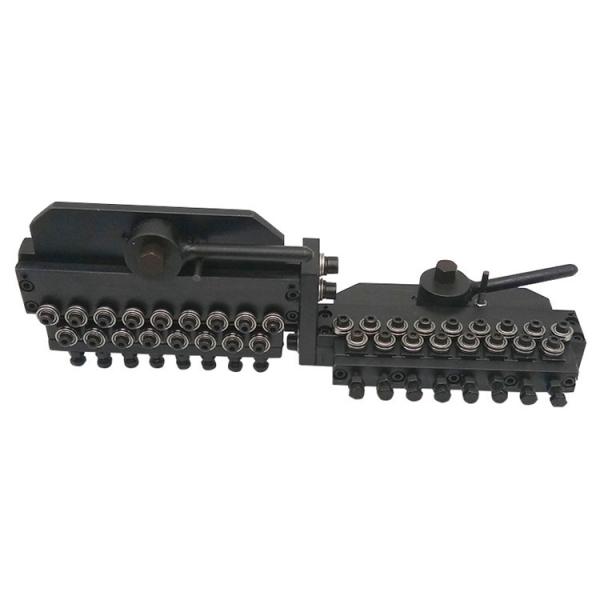

Product show :

Servo Drive Wire Straightener Machine 34 Roller High Precision No Noise

Servo Drive Wire Straightener Machine 34 Roller High Precision No Noise


Servo Drive Wire Straightener Machine 34 Roller High Precision No Noise
