Specifications
Brand Name :
qipang
Model Number :
JZQ 4-16 /14 AV
Certification :
SGS
Place of Origin :
Made-in-China
MOQ :
MOQ≥1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000PC/month
Delivery Time :
1-7 Working Days
Packaging Details :
Wooden bag
Material :
iron copper
Colour :
Black and wite
Product Keywords :
Wire straightener
Features :
Make wire straightener
weight :
10 kg
Brand :
Qipang copper tube straigtener
Application :
4-16 mm Wire
Size :
398mm×130mm×130mm
Description

Customizable copper coil tube Straightener suit 4-20 mm diameter material made in China

Wire Straightener Straight Solid line 4-6 mm​

Parameter:

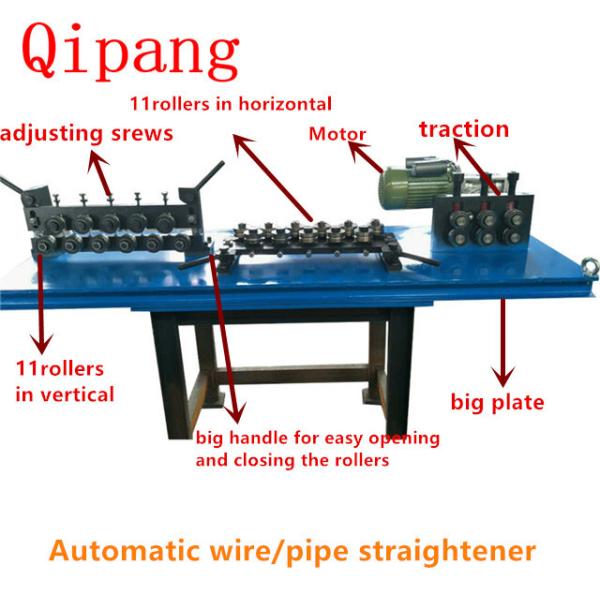

1. roller number:18 rollers
2. operating mode:The handle controls the overall opening and closing, and a row of wheels is individually adjustable
3. roller diameter:diameter 70
4. mode of traction:Belt haul-off machine(specially customized,wear-resistant)
5. Straightening range:1)Hollow copper pipe is applicable to 4-25mm 2)Hollow steel tubes apply
4-15mm,applicable rolls by rolls
6. motor power:1.5KW
7.Size:1500×1200×500mm

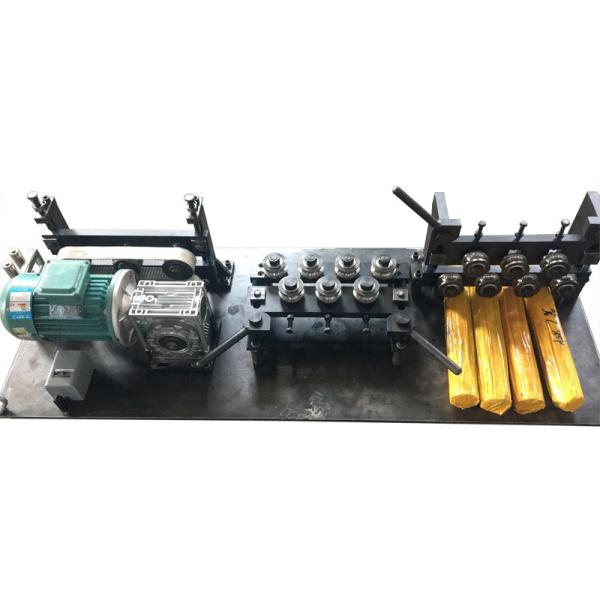

Product show :

Customizable Cable Rewinding Machine Adjustable Speed Wear - Resistant

Customizable Cable Rewinding Machine Adjustable Speed Wear - Resistant

Customizable Cable Rewinding Machine Adjustable Speed Wear - Resistant

Wire Straightener parameter list
Product model Wire diameter Roller number Roller diameter Customizable
JZQ0.1-0.3/24,AV φ0.1-0.3 24 7 　
JZQ0.3-0.5/34,AV φ0.3-0.5 34 12 　
JZQ0.5-0.8/26,AV φ0.5-0.8 26 16 　
JZQ08-2.0/18,BV φ0.8-2.0 26 23 14,18,22
JZQ2.0-4.0/18,AV φ2.0-4.0 18 30/32 14,22
JZQ4.0-7.0/18,AV φ4.0-7.0 18 44/50 10,14,22,26
JZQ7.0-12.0/18,AV φ7.0-12.0 18 47/70 10,14,22,26
JZQ12.0-20.0/18,AV φ12.0-20.0 18 70 10,14,22,26
JZQ0.8-4.0/5,AV φ0.8-4.0 5 23/30/32 　
JZQ4.0-10.0/5,AV φ4.0-10.0 5 42 　
JZQ4.0-10.0/18,BV φ4.0-10.0 18 42 10,14,22
JZQ10.0-20.0/18,BV φ10.0-20.0 18 70 10,14,22
