Specifications
Brand Name :
qipang
Model Number :
JZQ 2-6 /18 AV
Certification :
SGS
Place of Origin :
Made-in-China
MOQ :
MOQ≥1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000PC/month
Delivery Time :
1-7 Working Day
Packaging Details :
Wooden bag
Material :
iron copper
Colour :
Black and wite
Product Keywords :
Wire straightener
Features :
Make wire straightener
weight :
10 kg
Brand :
Qipang wire straightener
Application :
2-6 mm Wire
Size :
398mm×130mm×130mm
Description

0.05-20mm Stainless Steel wire straightener rollers wire straightening tool tube straightened cutter metal straighteand

Wire Straightener Straight Solid line 0.05-20 mm​



Parameter:

JZQ--- wire straightener

Straightening wire specification:Φ0.05 mm----Φ20.0mm

14----- The number of straightening rollers
50------ The diameter of the straightening roller
V-------The groove type of straightening roller; V,R,U,and customization
A-------A Type:The straightener is the integral open and close function .B Type:Single straightening wheel moves independently.

Straightener size:length 1000mm×width 170mm×height 170mm

Total weight of straightener:The machine is 50 kg, including package about 60 kg

Applicable to4.0-6.0mmsolid wire,4.0-15.0mm hollow pipe
0.05-20mm Stainless Steel wire straightener rollers wire straightening tool tube straightened cutter metal straighteand

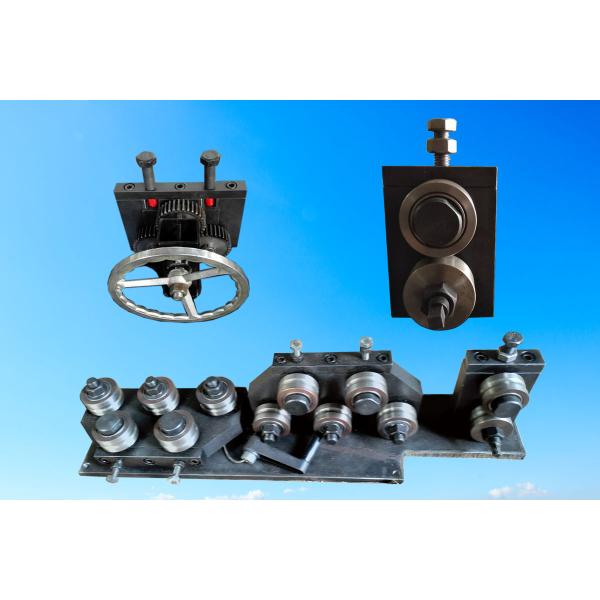

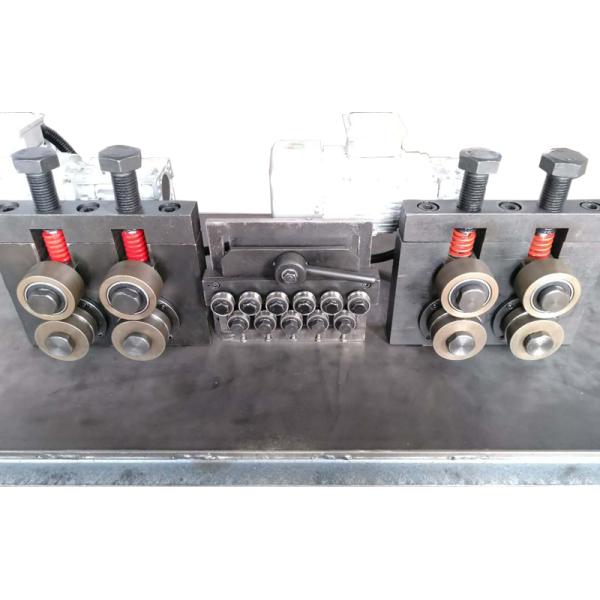

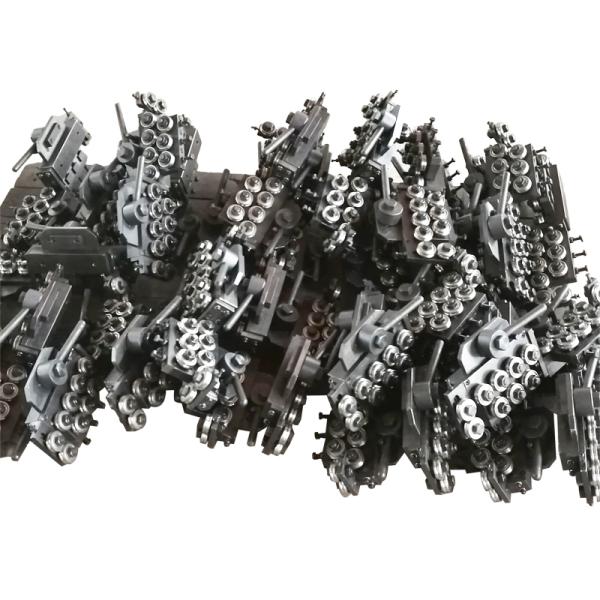

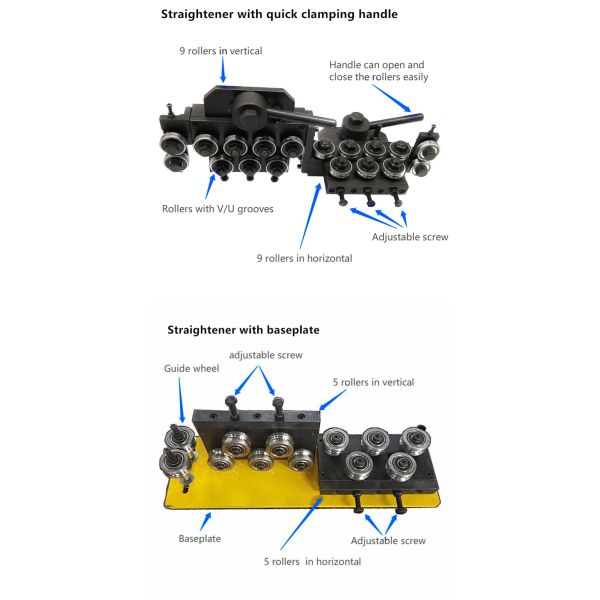

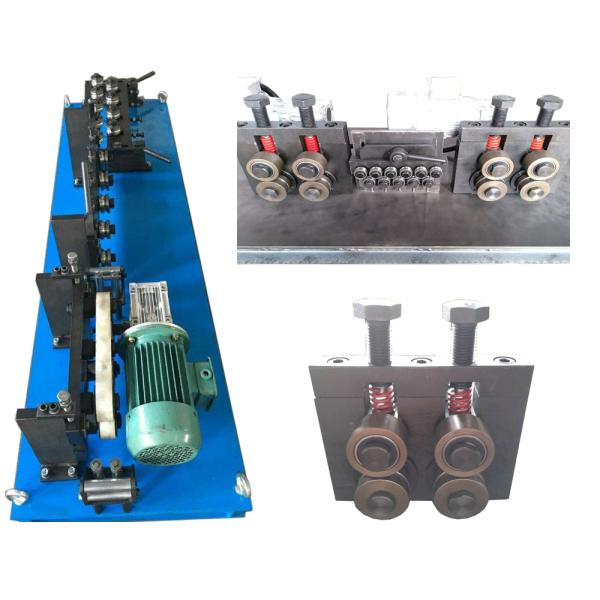

Product show :

0.05-20mm Stainless Steel wire straightener rollers wire straightening tool wire feeder cutter metal straighteand

0.05-20mm Stainless Steel wire straightener rollers wire straightening tool wire feeder cutter metal straighteand

TypeWire Diameter(mm)Roller Diameter(mm)Roller Qty(pcs) StructureGroove
A0.05-0.2mm738quick clampingV
B0.2-0.5mm1234quick clampingV
C0.5-0.8mm1626quick clampingV
D0.8-1.5mm2310/14/18/22/26quick clampingV
E1-2mm2310/14/18/22/26quick clampingV
F1.5-3mm3010/14/18/22quick clampingV
G3-4mm3218quick clamingV
H3-4mm4214/18unclampingV
I4-7mm421418/22unclampingV
J5-8mm5314/18/22unclampingV
TypeWire Diameter(mm)Roller Diameter(mm)Roller Qty(pcs)Structure
K1-3mm3014/18quick clampingU/R
L4-10mm4214/18/22unclampingU/R
M10-20mm5314/18/22unclampingU/R


I am Yentl from China, my company is Shanghai Qipang industrial co., LTD .

We are producting and selling :rolling ring drives/traverse unit, linear drives,linear drives nut,wire straightening machine ,automatic wire straightening and cutting machine ,take up and put paying off machine ,wire and cable coiling winding machine ,automatic coiling and packaging machine, automatic yarn winding machine for ribbons ,accessories for rolling ring drives

Could you provide me more details about the products that you are interested. Such as: the picture, the size, the model. I help you to look for it.

0.05-20mm Stainless Steel wire straightener rollers wire straightening tool wire feeder cutter metal straighteand
0.05-20mm Stainless Steel wire straightener rollers wire straightening tool wire feeder cutter metal straighteand


0.05-20mm Stainless Steel wire straightener rollers wire straightening tool wire feeder cutter metal straighteand


0.05-20mm Stainless Steel wire straightener rollers wire straightening tool wire feeder cutter metal straighteand0.05-20mm Stainless Steel wire straightener rollers wire straightening tool wire feeder cutter metal straighteand0.05-20mm Stainless Steel wire straightener rollers wire straightening tool wire feeder cutter metal straighteand

Q1: Are you a factory or trading company? We are a factory . We can promise you a short lead time and best price if you purchase our machine. We also have our own trading department.
Q2: How does the factory ensure products quality?With Nearly 16 years experience in manufacturing winding machine, we have our own technology develop department and testing department.Quality is the first priority. We have strict purchasing system to ensure the quality of spare parts. We have experienced workers to assemble and test machine.
Q3:How about your after-sale service?We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
Q4: What are your payment terms? 100%TT or prepaid 50% , balance 50% before shipping.
Q5: How can I get my order? How can I know you sent the goods?We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods, we will give you the tracking number or other relative files for checking.
