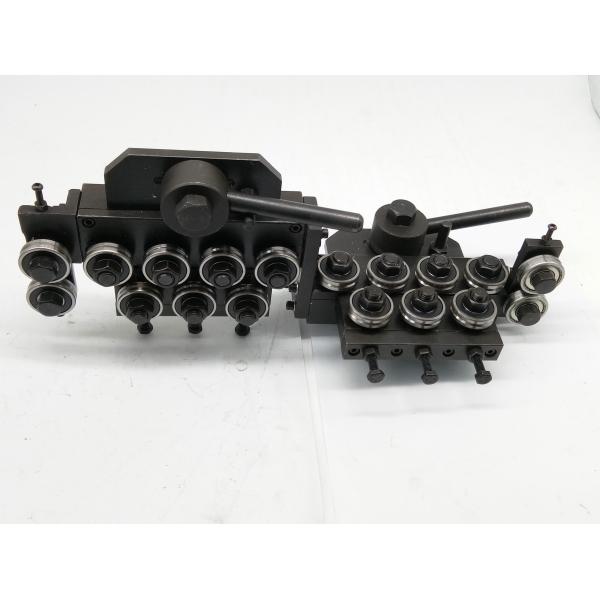

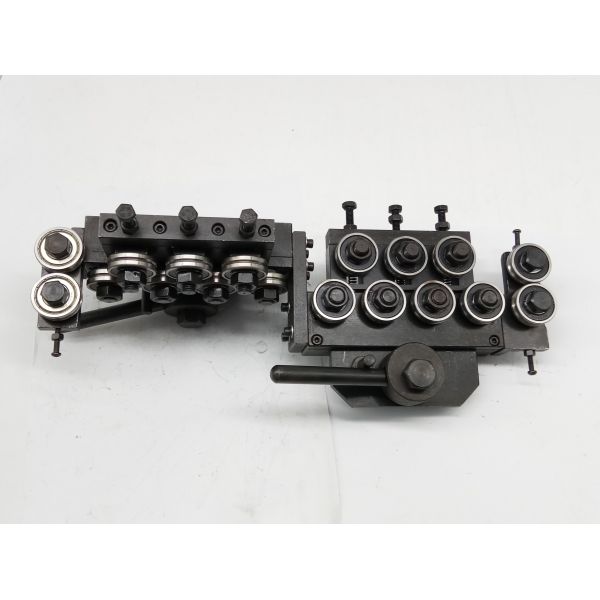

50 Mm 26 Roller Copper Tube Straightening Machine 380V 50HZ 10-13mm​ Solid Line
50 Mm 26 Roller Copper Tube Straightening Machine 380V 50HZ 10-13mm​ Solid Line
50 Mm 26 Roller Copper Tube Straightening Machine 380V 50HZ 10-13mm​ Solid Line
50 Mm 26 Roller Copper Tube Straightening Machine 380V 50HZ 10-13mm​ Solid Line
50 Mm 26 Roller Copper Tube Straightening Machine 380V 50HZ 10-13mm​ Solid Line
50 Mm 26 Roller Copper Tube Straightening Machine 380V 50HZ 10-13mm​ Solid Line
50 Mm 26 Roller Copper Tube Straightening Machine 380V 50HZ 10-13mm​ Solid Line
50 Mm 26 Roller Copper Tube Straightening Machine 380V 50HZ 10-13mm​ Solid Line
50 Mm 26 Roller Copper Tube Straightening Machine 380V 50HZ 10-13mm​ Solid Line
50 Mm 26 Roller Copper Tube Straightening Machine 380V 50HZ 10-13mm​ Solid Line
Specifications
Brand Name :
qipang
Model Number :
φ50，18R+2+380V
Certification :
SGS
Place of Origin :
Made in Shanghai
MOQ :
MOQ≥1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000PC/month
Delivery Time :
1-7 Working Day
Packaging Details :
Wooden bag
Material :
Drill Pipe Straightening Machine
Colour :
Copper Pipe Straightening Tool
Product Keywords :
Plate Straightening Machine
Features :
Make wire straightener
weight :
10 kg
Brand :
High Speed Wire Straightening And Cutting Machine
Application :
10mm line
Size :
398mm×130mm×130mm
Description

Diameter 50 mm 26 roller three groups of traction wire Straightener 380 Volt voltage

Wire Straightener Straight Solid line 10-13 mm​

Straightener, commonly known as straightener, is used to correct the straightness of straight wire and other wire rods to achieve stable wire properties. It has a variety of functions, and plays a key role in the wire drawing process of wire. Mainly consists of tiny guide wheels, adjusting screws, brackets, gaskets, etc.
During the production process, due to the residual tensile stress generated by the steel wire drawing and the appropriate amount of compressive stress, the steel wire is unstable, and the fluctuation is large, and a large number of broken wires appear. In order to better filter some problems, the research found a straightener with a mass effect, which greatly improved the stability of the steel wire and made the steel wire stable during the terminal cutting process.
Parameter:
Type JZQ4-6/14
Machine roller Diameter 47mm
Length * width * height 350 mm × 120 mm 120 mm
Weight 9kg (not including the wooden box )
Distance to install screw holes 85 mm
Distance between two wheels 26 mm
Roller thickness 7 mm
Mounting roller screw diameter 7 mm
Straightener line Specifications: 10-13 mm
Straightener line material: low, medium and high carbon steel wire, copper wire, tungsten molybdenum wire, welding wire, wire, etc.
Straightener wheel diameter: Φ50 mm
Straightener wheel groove type: V groove, R groove
Straightener wheel Quantity: 18 rounds
Straightener line form: single group: horizontal straightener; combination: vertical + horizontal or pneumatic alignment.
Straightener wheel is adjusted to: integral integral opening + single alignment wheel independent movement adjustment
Wire straightener Total quality: bare metal 9 KG, even packaging 11KG
Wire straightener size: 18 wheels, two pieces: length 398mm × width 130mm × height 130mm

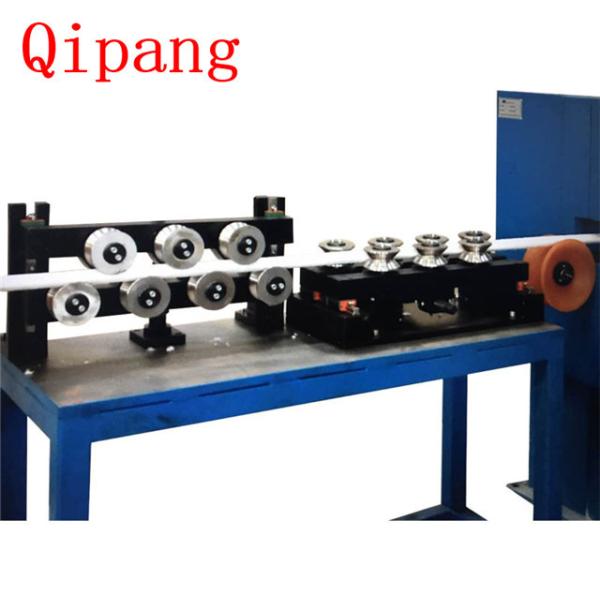

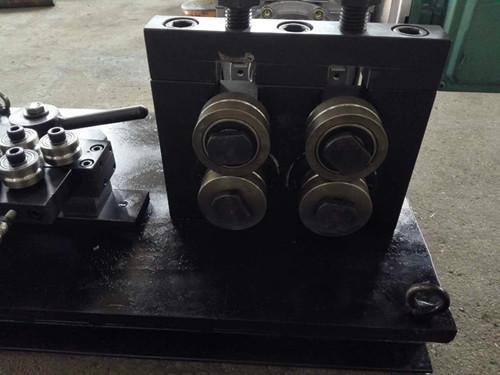

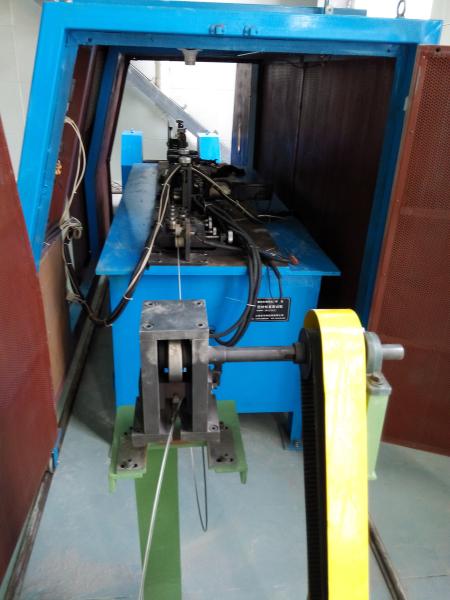

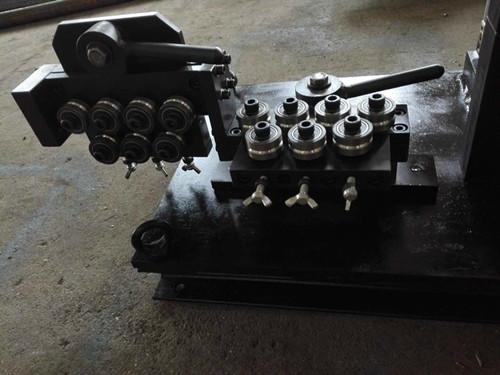

Product show :

50 Mm 26 Roller Copper Tube Straightening Machine 380V 50HZ 10-13mm​ Solid Line50 Mm 26 Roller Copper Tube Straightening Machine 380V 50HZ 10-13mm​ Solid Line50 Mm 26 Roller Copper Tube Straightening Machine 380V 50HZ 10-13mm​ Solid Line
