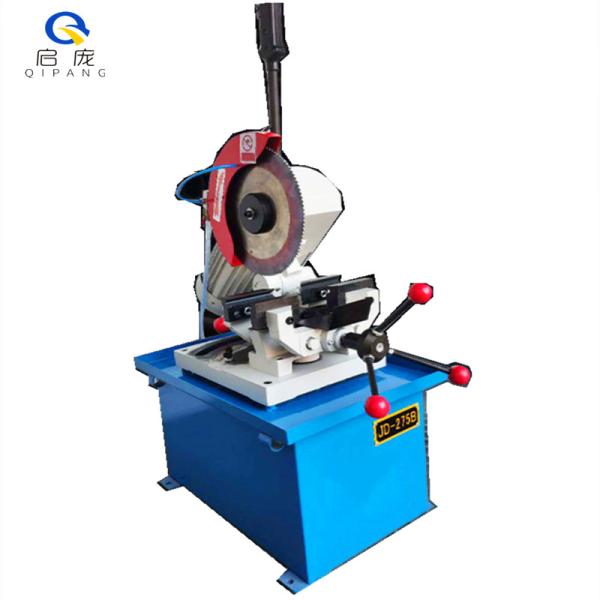

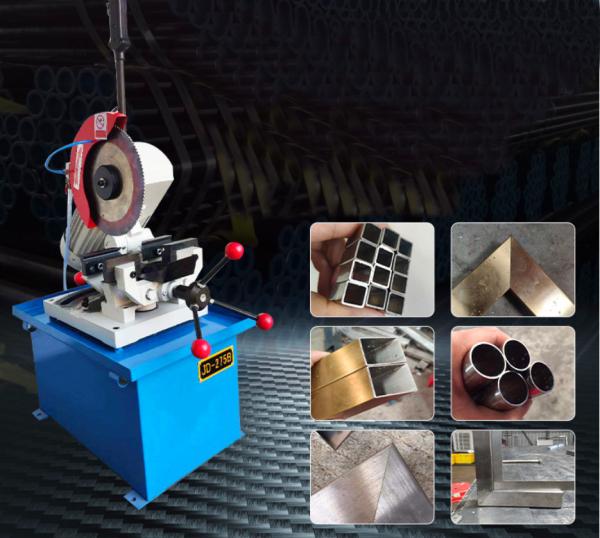

45 Degrees Water Cooled Burrless SS Wire Cutting Machine
45 Degrees Water Cooled Burrless SS Wire Cutting Machine
45 Degrees Water Cooled Burrless SS Wire Cutting Machine
45 Degrees Water Cooled Burrless SS Wire Cutting Machine
45 Degrees Water Cooled Burrless SS Wire Cutting Machine
45 Degrees Water Cooled Burrless SS Wire Cutting Machine
Specifications
Brand Name :
QIPANG
Model Number :
QP275
Certification :
SGS
Place of Origin :
Guangdong
MOQ :
1
Price :
USD
Payment Terms :
T/T, Western Union
Supply Ability :
50/Week
Delivery Time :
7-15days
Packaging Details :
wooden case
Model :
275
Motor power :
0.755 KW
Weight :
106kg
Saw blade speed :
56-102/min
Maximum opening of clamp :
80mm
Voltage :
380V-220V
Operation method :
manual clamping and manual cutting
Cutting specification :
90 degrees 45 degrees
Square tube :
65 * 65mm 65 * 65mm
Tube :
65mm60mm
Solid :
20mm20mm
Description

Pipe cutting machine 45 degrees burrless water-cooled stainless steel cutting machine Jiede 275 water-medium Angle cutting machine small cutting material

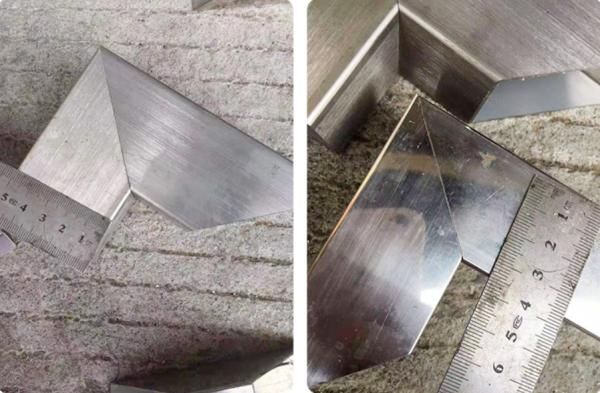

The pure copper thick wire motor adopts European head, and the wave box is equipped with gear to drive two turbines, so that the sawing efficiency is improved and the wear resistance is prolonged. Cast iron fixture, clamping steel automatic clamping, more stable; Large internal water tank, with large capacity, automatic water circulation, to ensure the service life of the blade; Electrical control elements, guide rail support and guide moving parts, according to a given direction to do reciprocating linear motion; Scale, accurate scale, to ensure the straight cutting, bevel cutting seamless butt.

Model 275 285 300AC 300B
Motor power 0.755 KW 1.8KW 2.4 KW 2.4 KW
Weight 106kg 115kg 260kg 228kg
Saw blade speed 56-102/min 56-102/min 56-102/min 56-102/min
Maximum opening of clamp 80mm 80mm 120mm 120mm
Voltage 380V-220V 380V-220V 380V-220V 380V-220V
Operation method manual clamping and manual cutting manual clamping manual knife automatic clamping automatic cutting manual clamping manual knife
Cutting specification 90 degrees 45 degrees 90 degrees 45 degrees
 90 degrees 45 degrees 90 degrees 45 degrees
Square tube 65 * 65mm 65 * 65mm 70 * 60mm 60 * 60mm 80mm 80 * 80mm 85mm 80*80mm
Tube 65mm60mm 70mm60mm 85mm 80mm 85mm80mm
Solid 20mm20mm 25mm25mm/Rectangle: 75*45mm 75*45mm 30mm 30mm
 30mm 30mm/Rectangle: 100 60mm 100*60mm

45 Degrees Water Cooled Burrless SS Wire Cutting Machine

45 Degrees Water Cooled Burrless SS Wire Cutting Machine

45 Degrees Water Cooled Burrless SS Wire Cutting Machine

45 Degrees Water Cooled Burrless SS Wire Cutting Machine

Shanghai Qi Pang Industrial Co., LTD is a professional manufacturer which is specialized in making rolling ring linear drives (traverse unit, rolling ring drive, linear actuators, linear motion assemblies), The company is located in the JiaDing district , Anting Town, which is the world financial center in Shanghai.
We always adhere to the talent oriented and honest business principles since our company established . Our company will continue to attract talents in various fields and advance foreign advanced technology to make our products have a high quality and precision. Our company developed a new type machine in 2015. It is a new type of machine : Frequency Take-up machine.
