Iron Copper Tube Rotary Wire Straightener With Belt Traction Motor Reducer
Iron Copper Tube Rotary Wire Straightener With Belt Traction Motor Reducer
Iron Copper Tube Rotary Wire Straightener With Belt Traction Motor Reducer
Iron Copper Tube Rotary Wire Straightener With Belt Traction Motor Reducer
Iron Copper Tube Rotary Wire Straightener With Belt Traction Motor Reducer
Iron Copper Tube Rotary Wire Straightener With Belt Traction Motor Reducer
Iron Copper Tube Rotary Wire Straightener With Belt Traction Motor Reducer
Iron Copper Tube Rotary Wire Straightener With Belt Traction Motor Reducer
Specifications
Brand Name :
qipang
Model Number :
φ70，10R+3+380V
Certification :
SGS ISO
Place of Origin :
Made-in-China Suzhou
MOQ :
MOQ≥1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000PC/month
Delivery Time :
1-7 Working Day
Packaging Details :
Wooden bag
Material :
iron copper
Colour :
Rod Straightening Machine
Product Keywords :
Rotary Wire Straightener
Features :
Tube Straightening Machine
weight :
10 kg
Brand :
Angle Straightening Machine
Application :
10mm line
Size :
398mm×130mm×130mm
Description

Diameter 100 mm 22 roller two groups of traction wire Straightener 380 Volt voltage

Wire Straightener Straight Solid line 10-13 mm​

Wire Straightening And Cutting Machine feature description

1. Hydraulic drive, convenient adjustment, accurate size and high efficiency, eliminating the need to make molds, saving time, labor, material and automatic discharging.

2. The bending mechanism, electronic control system and hydraulic system are reasonable in design, compact in structure and flexible in action.

3, manual discharge, take the frame, an automatic bending frame.

4, full hydraulic drive, imported hydraulic components, Taiwan brand motor, oil pump, solenoid valve and so on.

5, powerful, using multiple cylinders step by step, easy to adjust. It can bend U shape and trapezoid.

3 to 4 φ 5mm round wires can be formed in one frame, which has high production efficiency and precise dimensions.

Excellent materials, reasonable processing and heat treatment process, high comprehensive mechanical properties, good wear resistance and long service life.

Wire Straightening And Cutting Machine specification:

Type JZQ4-6/14
Machine roller Diameter 47mm
Length * width * height 350 mm × 120 mm 120 mm
Weight 9kg (not including the wooden box )
Distance to install screw holes 85 mm
Distance between two wheels 26 mm
Roller thickness 7 mm
Mounting roller screw diameter 7 mm

Wire Straightening And Cutting Machine Parameter:
Straightener line Specifications: 10-13 mm
Straightener line material: low, medium and high carbon steel wire, copper wire, tungsten molybdenum wire, welding wire, wire, etc.
Straightener wheel diameter: Φ100 mm
Straightener wheel groove type: V groove, R groove
Straightener wheel Quantity: 22 rounds
Straightener line form: single group: horizontal straightener; combination: vertical + horizontal or pneumatic alignment.
Straightener wheel is adjusted to: integral integral opening + single alignment wheel independent movement adjustment
Wire straightener Total quality: bare metal 9 KG, even packaging 11KG
Wire straightener size: 18 wheels, two pieces: length 398mm × width 130mm × height 130mm

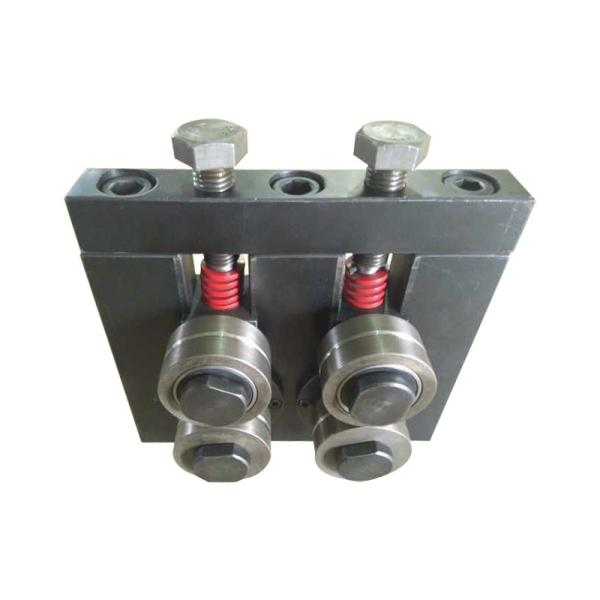

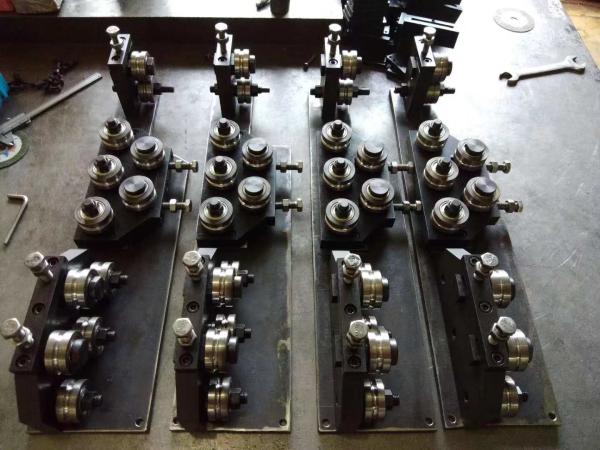

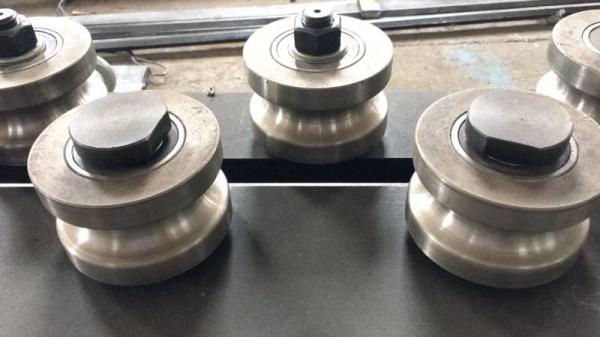

Product show :

Iron Copper Tube Rotary Wire Straightener With Belt Traction Motor ReducerIron Copper Tube Rotary Wire Straightener With Belt Traction Motor ReducerIron Copper Tube Rotary Wire Straightener With Belt Traction Motor Reducer
