Specifications
Brand Name :
qipang
Model Number :
φ70，10R+3+380V
Certification :
SGS ISO9002
Place of Origin :
Made-in-China Shanghai
MOQ :
MOQ≥1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000PC/month
Delivery Time :
1-7 Working Day
Packaging Details :
Wooden bag
Material :
iron copper
Colour :
Steel Wire Straightening Cutting Machine
Product Keywords :
Plate Straightening Machine
Features :
Coiled Tubing Straightener
weight :
10 kg
Brand :
Drill Pipe Straightening Machine
Application :
10mm line
Size :
398mm×130mm×130mm
Description

Diameter 70 mm 26 roller two groups of traction wire Straightener 380 Volt voltage

Wire Straightener Straight Solid line 10-13 mm​

2-roller pinch and 5-roller leveling, 2-roller centering can eliminate part of the burr after slitting, 5-roller initial leveling adjusts the cut sheet head, convenient feeding roller diameter φ85 , no power roller, the roller ends are supported by rolling bearings.

Chamfer extruded, using 12 vertical rollers, divided into 6 groups of top extrusion, pressing the longitudinal burrs and right angles of the sheet material to make the steel strip sharp edges into small blunt edges, to achieve flat steel edge forming and improve Quality and grade.

Wire Straightening And Cutting Machine Parameter:
Straightener line Specifications: 10-13 mm
Straightener line material: low, medium and high carbon steel wire, copper wire, tungsten molybdenum wire, welding wire, wire, etc.
Straightener wheel diameter: Φ50 mm
Straightener wheel groove type: V groove, R groove
Straightener wheel Quantity: 18 rounds
Straightener line form: single group: horizontal straightener; combination: vertical + horizontal or pneumatic alignment.
Straightener wheel is adjusted to: integral integral opening + single alignment wheel independent movement adjustment
Wire straightener Total quality: bare metal 9 KG, even packaging 11KG
Wire straightener size: 18 wheels, two pieces: length 398mm × width 130mm × height 130mm

Wire Straightening And Cutting Machine specification:

Type JZQ4-6/14
Machine roller Diameter 47mm
Length * width * height 350 mm × 120 mm 120 mm
Weight 9kg (not including the wooden box )
Distance to install screw holes 85 mm
Distance between two wheels 26 mm
Roller thickness 7 mm
Mounting roller screw diameter 7 mm

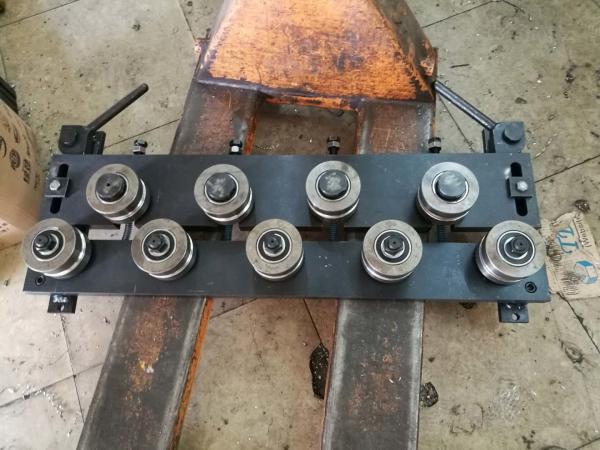

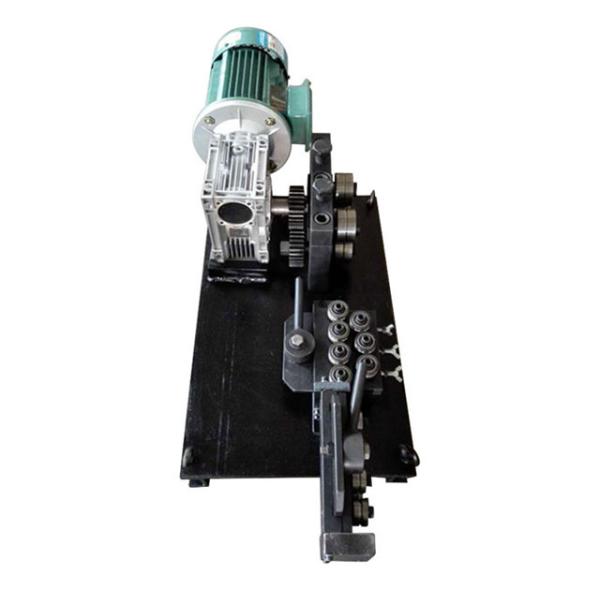

Product show :

Drill Pipe Wire Rod Straightening And Cutting Machine Bar Straightening MachineDrill Pipe Wire Rod Straightening And Cutting Machine Bar Straightening MachineDrill Pipe Wire Rod Straightening And Cutting Machine Bar Straightening Machine
