70 Mm 14 Roller Wire Straightener And Cutter With Three Groups Of Traction Wire
70 Mm 14 Roller Wire Straightener And Cutter With Three Groups Of Traction Wire
70 Mm 14 Roller Wire Straightener And Cutter With Three Groups Of Traction Wire
70 Mm 14 Roller Wire Straightener And Cutter With Three Groups Of Traction Wire
70 Mm 14 Roller Wire Straightener And Cutter With Three Groups Of Traction Wire
70 Mm 14 Roller Wire Straightener And Cutter With Three Groups Of Traction Wire
70 Mm 14 Roller Wire Straightener And Cutter With Three Groups Of Traction Wire
70 Mm 14 Roller Wire Straightener And Cutter With Three Groups Of Traction Wire
70 Mm 14 Roller Wire Straightener And Cutter With Three Groups Of Traction Wire
70 Mm 14 Roller Wire Straightener And Cutter With Three Groups Of Traction Wire
Specifications
Brand Name :
qipang
Model Number :
φ70，10R+3+380V
Certification :
SGS CE
Place of Origin :
Made-in-China
MOQ :
MOQ≥1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000PC/month
Delivery Time :
1-7 Working Day
Packaging Details :
Wooden bag
Material :
Plate Straightening Machine
Colour :
Wire Rod Straightening And Cutting Machine
Product Keywords :
Tube Straightening Machine
Features :
Scaffold Tube Straightening Machine
weight :
10 kg
Brand :
Qipang
Application :
10mm line
Size :
398mm×130mm×130mm
Description

Diameter 70 mm 14 roller three groups of traction wire Straightener 380 Volt voltage

Wire Straightener Straight Solid line 10-13 mm​

Optional cast iron, alloy, plastic king straight block, suitable for galvanizing line, powder drawing line, water drawing line and stainless steel line, can ensure no flaw on the line surface.

the length of the material can be adjusted arbitrarily, the error is small, and the upper and lower cutters with high hardness are used to make the incision better.

The casing is made of high-strength grade steel plate, and the structural design is original in Japan.

Optional microcomputer control system, the system has normal working indicator, machine fault shutdown alarm function, manual, automatic operation function, output arrival automatic stop function, output preset display function, digital display counting function, multiple specifications memory function .

Wire Straightening And Cutting Machine Parameter:
Straightener line Specifications: 10-13 mm
Straightener line material: low, medium and high carbon steel wire, copper wire, tungsten molybdenum wire, welding wire, wire, etc.
Straightener wheel diameter: Φ50 mm
Straightener wheel groove type: V groove, R groove
Straightener wheel Quantity: 18 rounds
Straightener line form: single group: horizontal straightener; combination: vertical + horizontal or pneumatic alignment.
Straightener wheel is adjusted to: integral integral opening + single alignment wheel independent movement adjustment
Wire straightener Total quality: bare metal 9 KG, even packaging 11KG
Wire straightener size: 18 wheels, two pieces: length 398mm × width 130mm × height 130mm

Wire Straightening And Cutting Machine details:

Type JZQ4-6/14
Machine roller Diameter 47mm
Length * width * height 350 mm × 120 mm 120 mm
Weight 9kg (not including the wooden box )
Distance to install screw holes 85 mm
Distance between two wheels 26 mm
Roller thickness 7 mm
Mounting roller screw diameter 7 mm

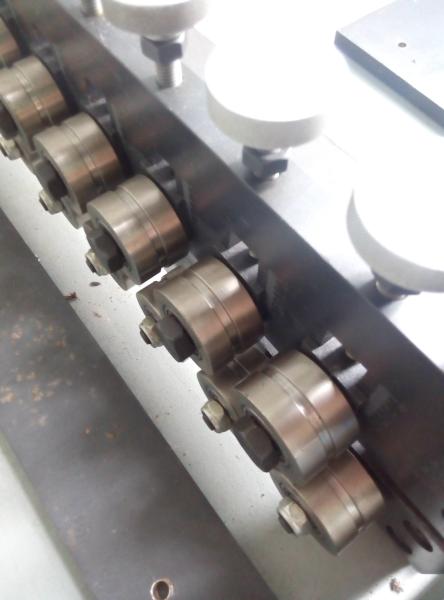

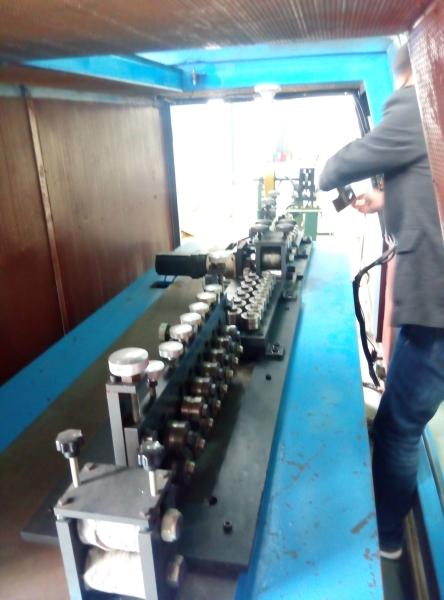

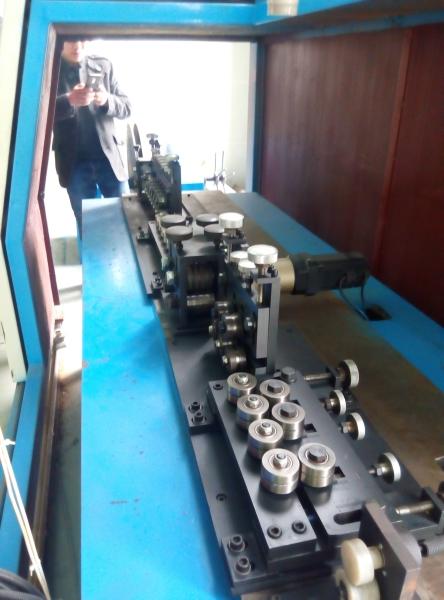

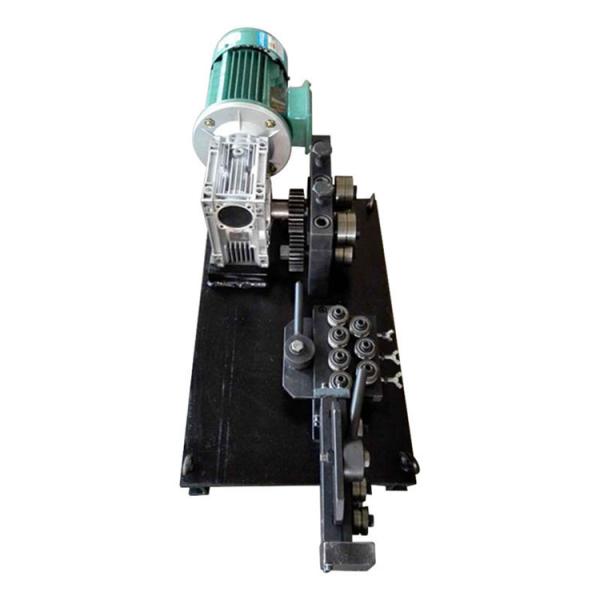

Product show :

70 Mm 14 Roller Wire Straightener And Cutter With Three Groups Of Traction Wire70 Mm 14 Roller Wire Straightener And Cutter With Three Groups Of Traction Wire
