Steel Pipe Wire Straightening And Cutting Machine With Automatic Switch
Steel Pipe Wire Straightening And Cutting Machine With Automatic Switch
Steel Pipe Wire Straightening And Cutting Machine With Automatic Switch
Steel Pipe Wire Straightening And Cutting Machine With Automatic Switch
Steel Pipe Wire Straightening And Cutting Machine With Automatic Switch
Steel Pipe Wire Straightening And Cutting Machine With Automatic Switch
Steel Pipe Wire Straightening And Cutting Machine With Automatic Switch
Steel Pipe Wire Straightening And Cutting Machine With Automatic Switch
Specifications
Brand Name :
qipang
Model Number :
φ70，10R+3+380V
Certification :
SGS CE
Place of Origin :
Made-in-China Shanghai
MOQ :
MOQ≥1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000PC/month
Delivery Time :
1-7 Working Day
Packaging Details :
Wooden bag
Material :
Wire Straightening Cutting Machine
Colour :
Steel Wire Straightening Cutting Machine
Product Keywords :
Steel Pipe Straightening Machine
Features :
Metal Tube Straightener
weight :
10 kg
Brand :
Qipang
Application :
10mm line
Size :
398mm×130mm×130mm
Description

Diameter 70 mm 18 roller two groups of traction wire Straightener 380 Volt voltage

Wire Straightener Straight Solid line 10-13 mm​

G. The pressure roller adopts excellent grade mold steel, and carries out high-precision turning, milling, grinding and wire cutting at the same time, and carries out high-temperature vacuum heat treatment at the same time, which ensures the balance line and concentration of the product, and strengthens the wear resistance and strength of the pressure roller. , thereby enhancing the life of the roller.

H. With hand pressure oil boosting device, it is more convenient to use oil for each part of the machine.

Main technical parameters of standard straightening and cutting machine

Wire Straightening And Cutting Machine details:

Type JZQ4-6/14
Machine roller Diameter 47mm
Length * width * height 350 mm × 120 mm 120 mm
Weight 9kg (not including the wooden box )
Distance to install screw holes 85 mm
Distance between two wheels 26 mm
Roller thickness 7 mm
Mounting roller screw diameter 7 mm

Parameter:
Straightener line Specifications: 10-13 mm
Straightener line material: low, medium and high carbon steel wire, copper wire, tungsten molybdenum wire, welding wire, wire, etc.
Straightener wheel diameter: Φ50 mm
Straightener wheel groove type: V groove, R groove
Straightener wheel Quantity: 18 rounds
Straightener line form: single group: horizontal straightener; combination: vertical + horizontal or pneumatic alignment.
Straightener wheel is adjusted to: integral integral opening + single alignment wheel independent movement adjustment
Wire straightener Total quality: bare metal 9 KG, even packaging 11KG
Wire straightener size: 18 wheels, two pieces: length 398mm × width 130mm × height 130mm

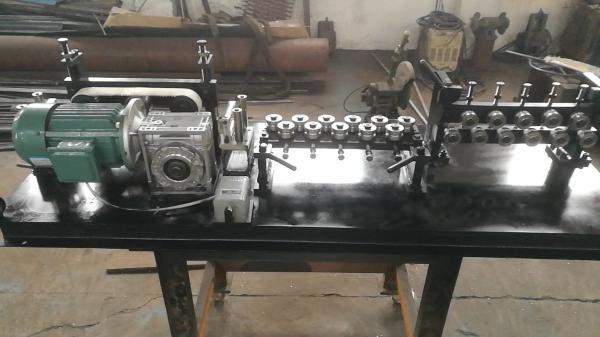

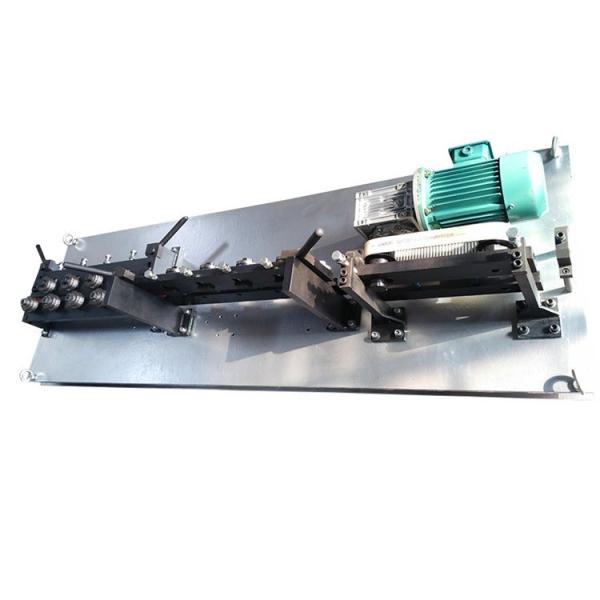

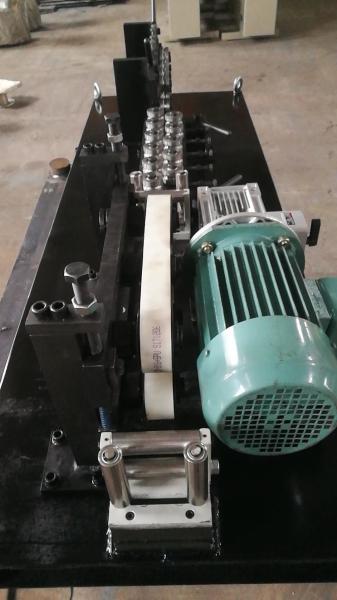

Product show :

Steel Pipe Wire Straightening And Cutting Machine With Automatic SwitchSteel Pipe Wire Straightening And Cutting Machine With Automatic Switch

Steel Pipe Wire Straightening And Cutting Machine With Automatic Switch
