Steel Wire Angle Straightening Machine 10mm Line Wire Straightener Machine
Steel Wire Angle Straightening Machine 10mm Line Wire Straightener Machine
Steel Wire Angle Straightening Machine 10mm Line Wire Straightener Machine
Steel Wire Angle Straightening Machine 10mm Line Wire Straightener Machine
Steel Wire Angle Straightening Machine 10mm Line Wire Straightener Machine
Steel Wire Angle Straightening Machine 10mm Line Wire Straightener Machine
Steel Wire Angle Straightening Machine 10mm Line Wire Straightener Machine
Steel Wire Angle Straightening Machine 10mm Line Wire Straightener Machine
Specifications
Brand Name :
qipang
Model Number :
φ50，18R+2+380V
Certification :
SGS ISO
Place of Origin :
Made-in-China
MOQ :
MOQ≥1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000PC/month
Delivery Time :
1-7 Working Day
Packaging Details :
Wooden bag
Material :
Wire Straightening Cutting Machine
Colour :
Wire Mesh Straightener
Product Keywords :
Steel Wire Straightening And Cutting Machine
Features :
Copper Pipe Straightening Tool
weight :
10 kg
Brand :
Qipang
Application :
10mm line
Size :
398mm×130mm×130mm
Description

Diameter 50 mm 18 roller tree groups of traction wire Straightener 380 Volt voltage

Wire Straightener Straight Solid line 10-13 mm​

E. Optional microcomputer control system, the system has normal working indicator, machine fault shutdown alarm function, manual, automatic operation function, output arrival automatic stop function, output preset display function, digital display counting function, multiple specifications memory function .

F. Straightening shaft is integrally formed with 45# steel, which is beautiful and durable, no deformation and no breakage. And through high-precision machining processes such as turning and milling, the balance and concentration of the straightening shaft are ensured.

Parameter:
Straightener line Specifications: 10-13 mm
Straightener line material: low, medium and high carbon steel wire, copper wire, tungsten molybdenum wire, welding wire, wire, etc.
Straightener wheel diameter: Φ50 mm
Straightener wheel groove type: V groove, R groove
Straightener wheel Quantity: 18 rounds
Straightener line form: single group: horizontal straightener; combination: vertical + horizontal or pneumatic alignment.
Straightener wheel is adjusted to: integral integral opening + single alignment wheel independent movement adjustment
Wire straightener Total quality: bare metal 9 KG, even packaging 11KG
Wire straightener size: 18 wheels, two pieces: length 398mm × width 130mm × height 130mm

Wire Straightening And Cutting Machine details:

Type JZQ4-6/14
Machine roller Diameter 47mm
Length * width * height 350 mm × 120 mm 120 mm
Weight 9kg (not including the wooden box )
Distance to install screw holes 85 mm
Distance between two wheels 26 mm
Roller thickness 7 mm
Mounting roller screw diameter 7 mm

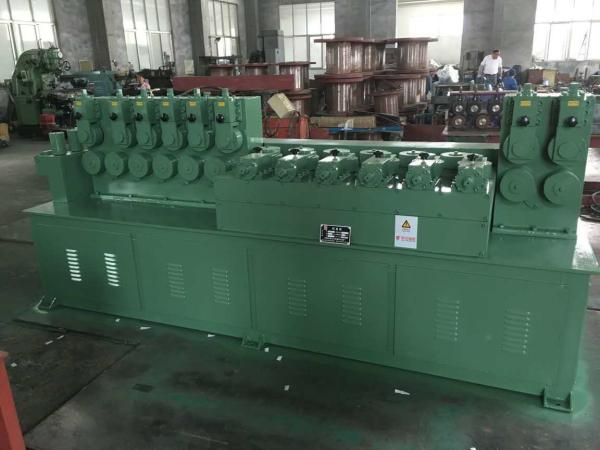

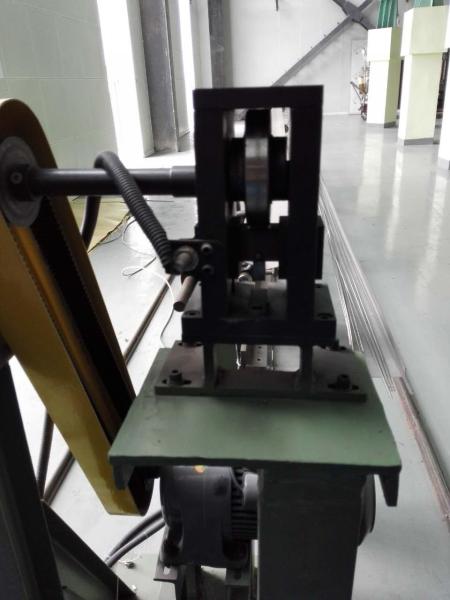

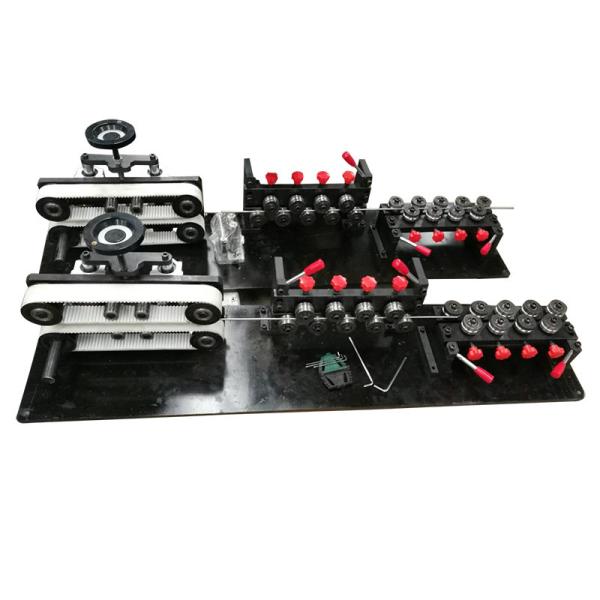

Product show :

Steel Wire Angle Straightening Machine 10mm Line Wire Straightener MachineSteel Wire Angle Straightening Machine 10mm Line Wire Straightener MachineSteel Wire Angle Straightening Machine 10mm Line Wire Straightener Machine
