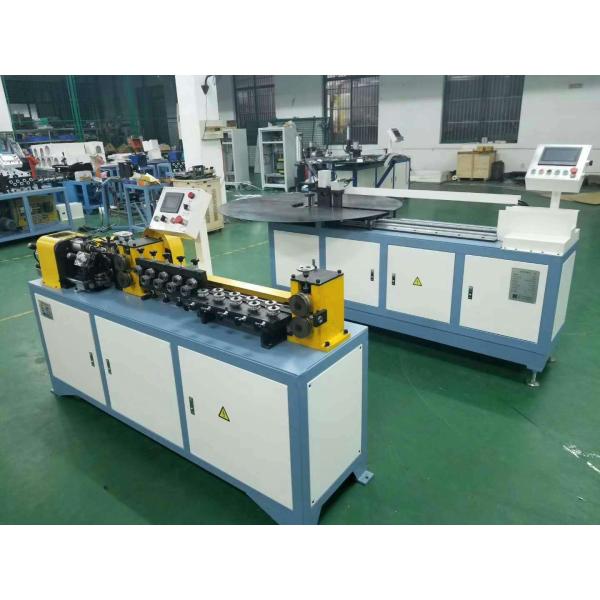

50m/Min 10MM Aluminum Pipe Straightening Machine
50m/Min 10MM Aluminum Pipe Straightening Machine
50m/Min 10MM Aluminum Pipe Straightening Machine
50m/Min 10MM Aluminum Pipe Straightening Machine
50m/Min 10MM Aluminum Pipe Straightening Machine
50m/Min 10MM Aluminum Pipe Straightening Machine
50m/Min 10MM Aluminum Pipe Straightening Machine
50m/Min 10MM Aluminum Pipe Straightening Machine
50m/Min 10MM Aluminum Pipe Straightening Machine
50m/Min 10MM Aluminum Pipe Straightening Machine
Specifications
Brand Name :
QIPANG
Model Number :
QP4-10MM
Certification :
IS9001
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability :
100UNITS/MONTH
Delivery Time :
20 working days
Packaging Details :
wooden box
Application :
4-10mm aluminum pipe
Type :
full Automatic
material :
pipe, tube
Cutting length :
more than 50mm
Straightening speed :
About 50m/min
Length tolerance :
±1mm
Power :
3phase/380V/50HZ
feeding length :
50mm
used :
pipe chipless cutting machine
Description

Copper and aluminum pipe straightening and cutting QP4-10MM

Shanghai Qipang industrial co., LTD

We are producing and selling: rolling ring drives, linear drives, linear drives nut, wire straightener, automatic wire straightening and cutting machine, automatic coiling & packaging machine, Extrusion line, automatic yarn winding machine and accessories for rolling ring drives.

The CNC three-stage clamping die chipless servo jig steel tube opener developed by our factory draws lessons from the structural principle of lathe head and adopts the three-chuck type jig, which exerts force simultaneously from three angles.The design of the guide positive plate of the jig of the steel tube straightening and cutting the non-chip material opener does not need to adjust the concentricity of the jig again when the jig is replaced, and the replacement process is more convenient.When the pipe is broken, the deformation degree of the pipe is minimized to ensure the appearance quality.

Suit for copper pipe, Aluminum pipe, polyethylene-aluminum composite pipeline

Series items Brand
1 Rack Professional welding, stress treatment
2

paint coating

 Bottom sandblasting treatment, surface powder spraying, color can be customized
3 PLC Teco
4 frequency converter Teco
5 human-computer interface

Taian text
6

encoder

 Omron
7 low-voltage apparatus

Zhengtai, delixi or equivalent brand


Copper and aluminum pipe straightening and cutting QP4-10MM

Machine Characters:

1. Domestic customers provide free training in installation, commissioning, operation and maintenance.

2. The equipment is guaranteed for one year. We are responsible for free maintenance or replacement of relevant spare parts except for man-made damage.Provide technical support for maintenance after the warranty expires and provide free software upgrades.

Number Item Parameter
1 Model KA
2 Suit material Copper aluminum tube
3 Pipe diameter Φ4-Φ16.8
4 Least cutting length 60mm
5
  • Number of cutting at one time
 1pc
6 output power 1.12KW
7 Feeding speed
  • The fastest speed is 60m/min
8 operating system
  • Touch screen operation, frequency conversion operation +PLC
9 Operation mode Automatic
10 surface condition here is no obvious pull, scratch, pressure scar and knurled scratch on the surface of the tube
11 input voltage 380V, three-phase, 50Hz
12 Work pressure 0.6~0.8Mpa

Copper and aluminum pipe straightening and cutting QP4-10MM

Machine picture:

50m/Min 10MM Aluminum Pipe Straightening Machine

50m/Min 10MM Aluminum Pipe Straightening Machine

50m/Min 10MM Aluminum Pipe Straightening Machine

50m/Min 10MM Aluminum Pipe Straightening Machine

50m/Min 10MM Aluminum Pipe Straightening Machine

Company profile:

50m/Min 10MM Aluminum Pipe Straightening Machine

50m/Min 10MM Aluminum Pipe Straightening Machine

0.1-0.5mm thin copper wire straightening and cutting machine automatic JWTZ-1
