0.1-0.5mm thin copper wire straightening and cutting machine automatic JWTZ-1
0.1-0.5mm thin copper wire straightening and cutting machine automatic JWTZ-1
0.1-0.5mm thin copper wire straightening and cutting machine automatic JWTZ-1
0.1-0.5mm thin copper wire straightening and cutting machine automatic JWTZ-1
Specifications
Brand Name :
QIPANG
Model Number :
JWTZ-1
Certification :
IS9001
Place of Origin :
CHINA
MOQ :
1
Price :
USD9550-10000UNIT
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability :
100UNITS/MONTH
Delivery Time :
20 working days
Packaging Details :
wooden box
Application :
0.1-0.5mm thin copper wire
Type :
Automatic
Wire material :
Stainless steel wire, spring steel wire, iron wire
Cutting length :
Min 3mm, Max is not limited
Straightening speed :
About 6-20m/min
Length tolerance :
±0.1mm
Power :
3phase/380V/50HZ
Description

0.1-0.5mm thin copper wire straightening and cutting machine automatic JWTZ-1

The cutting machine has a wide range of wire diameter and good versatility. The wire diameter is 0.1mm-6.5mm, and the shortest cut is 3mm.

Applicable to all kinds of metal wire and capillary (hollow) pipe wire, such as: Iron, Steel, Stainless steel. Copper.Aluminum. Gold Silver, Titanium, Molybdenum and other types of wire precision program-controlled straightening.High precision in ±0.1mm. The straightening efficiency is quick, the performance is stable, the operation is simple. In the working condition, the wire rod is not twisted, has no back break, the incision is flat, the surface is smooth and clean without scratch damage phenomenon. The fixed length cutting is more accurate, the straightening speed can be changed according to the toughness of the wire material with stepless speed, and the straightening speed can be automatically tracked to compensate the straightening loss and wear.

The device has automatic safety prevention and automatic operation stability detection, warning and alarm system and text display instructions. Is a simple, stable and efficient new energy - saving equipment.

Machine Model QP-1 QP-2 QP-3
Wire diameter QP0.1-0.5mm QP1.0-3.5mm QP3.0-6.5mm
Wire material Stainless steel wire, spring steel wire, iron wire and other non-ferrous metal wire and capillary (hollow tube)
Cutting length Min 3mm, Max is not limited
Straightening speed About 6-20m/min,Adjust the speed according to different wire, wire diameter and cutting length
Single batch value (branch) 1-999999
Length tolerance ±0.1mm
Power 3phase/380V/50HZ
Motor Power 2KW 3KW 4KW
Automatic degree full-automatic
Machine dimention 1600*800*1000mm 1600*800*1000mm 1800*800*1000mm
Machine weight 350KG 350KG 350KG


0.1-0.5mm thin copper wire straightening and cutting machine automatic JWTZ-1

Machine Characters:

1.PLC control throughout the whole process: automatic wire feeding, automatic straightening , automatic cutting, automatic unloading

2. Cutting edge is flat, no bur

3.During the machine running: automatic tracking, automatic aligning, to realize high quality and high efficiency

4. 2cutting ways, 1 way is for long cutting, the other way is for short cutting

5.Easy to iperate, 1person can operate multiple machines, safe. 6.Paten wire holder and feeder(can load max 500kgs), can do straightening from 2 directions.

7.Low noises

8. Machine structure is precisely proceed steel, conpact structure, small space needed.

9. High technology for straightening and cutting field.

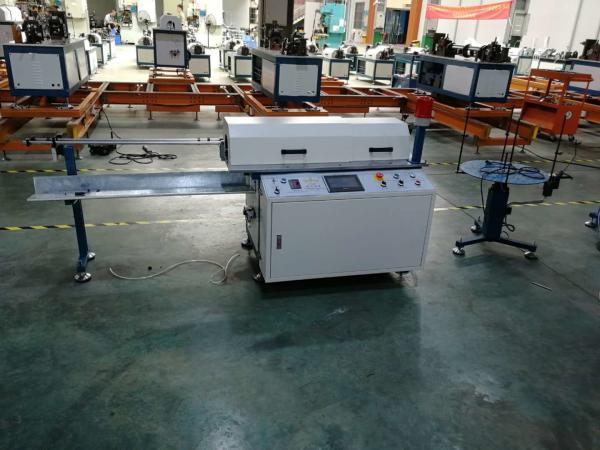

Machine picture:

0.1-0.5mm thin copper wire straightening and cutting machine automatic JWTZ-1

0.1-0.5mm thin copper wire straightening and cutting machine automatic JWTZ-1

0.1-0.5mm thin copper wire straightening and cutting machine automatic JWTZ-1
