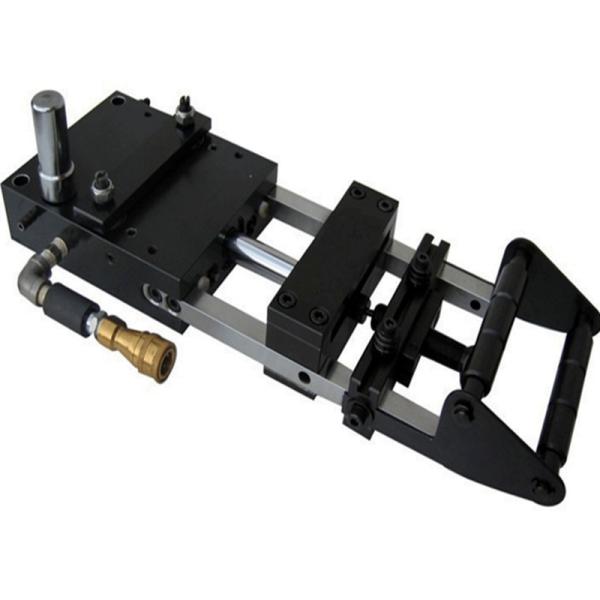

Qipang Pneumatic feeder High-precision air feeder punch conveying equipment
Qipang Pneumatic feeder High-precision air feeder punch conveying equipment
Qipang Pneumatic feeder High-precision air feeder punch conveying equipment
Qipang Pneumatic feeder High-precision air feeder punch conveying equipment
Specifications
Brand Name :
QIPANG
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
7working days
Supply Ability :
300 units per month
Packaging Details :
wooden boxes
Description

Qipang Pneumatic feeder High-precision air feeder punch conveying equipment automatic pneumatic feeder Clip-on fast feed

Applications

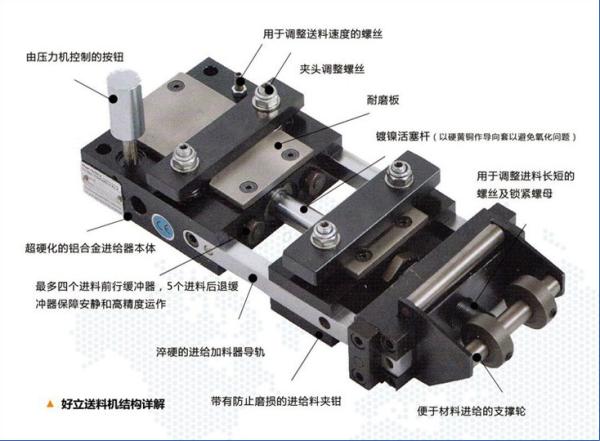

Air feeding has the characteristics of vibration absorption, quiet operation, low air consumption and easy installation. The product only needs to fix two screws to complete the installation. And the driving mechanism is controlled by a mechanical valve or remote electronic device, which can ensure the maximum accuracy of 0.02mm in high-speed feeding.

Fixed chuck pressure 64 kg, mobile chuck pressure 120 kg, traction force 25 kg.

Qipang Pneumatic feeder High-precision air feeder punch conveying equipment

Features

l The parts are hardened and anti-oxidation treatment.

l High utilization, interchangeability between molds, no need for external parts.

l High adaptability, suitable for various types of materials.

l Multiple choices, up to 120 models, directly customized according to your needs!

Product specification

型号

Model

材料宽度

Material Width

mm

送料长度

Feeding length

mm

材料厚度

Material Thickness

mm

送料速度

Feeding speed

RPM

重量

Weight

Kg
BX50 75 50 2.2 260 6.6
BX100 75 100 2 180 8.1
BX150 75 150 1.8 150 9.6
BX200 75 200 1.6 120 11.1
BX250 75 250 1.5 90 12.6
CX50 100 50 1.5 250 7.3
CX100 100 100 1.5 170 8.8
CX150 100 150 1.7 140 10.2
CX200 100 200 1.6 140 13.1
CX250 100 250 1.5 230 13.1
DX50 150 50 1.6 130 10
DX100 150 100 1.4 160 11.6
DX150 150 150 1.2 130 13.1
DX200 150 200 1.2 130 14.6
DX250 150 250 1 100 16.1

Qipang Pneumatic feeder High-precision air feeder punch conveying equipment

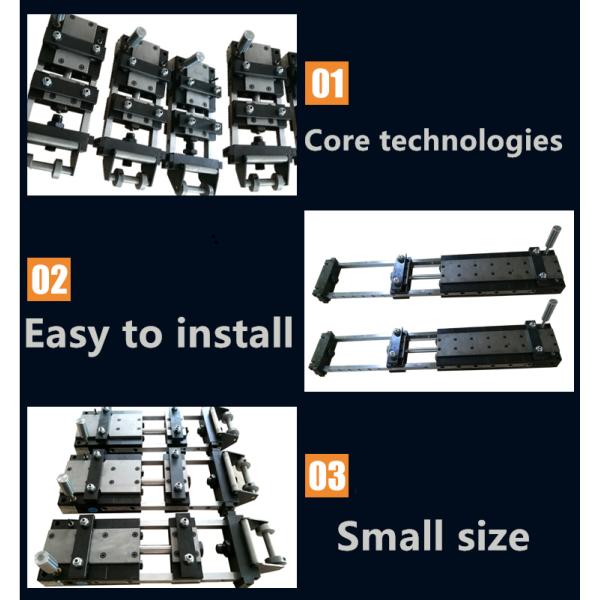

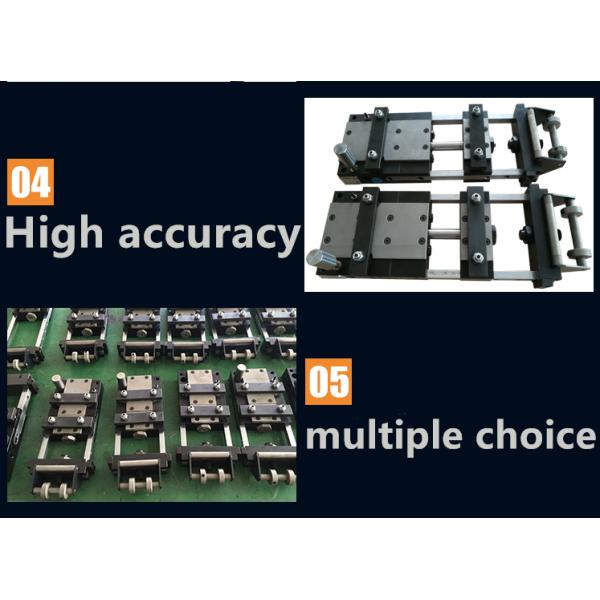

Advantages

Qipang Pneumatic feeder High-precision air feeder punch conveying equipment

Qipang Pneumatic feeder High-precision air feeder punch conveying equipment

Qipang Pneumatic feeder High-precision air feeder punch conveying equipment

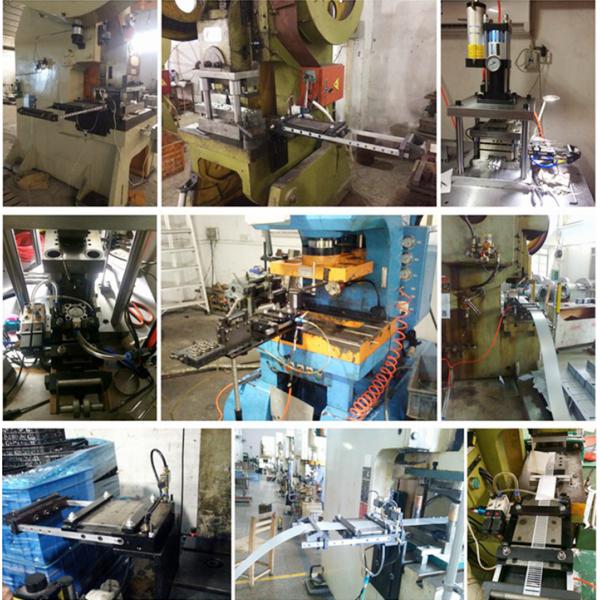

Company profile

Qipang Pneumatic feeder High-precision air feeder punch conveying equipment

Certification

Qipang Pneumatic feeder High-precision air feeder punch conveying equipment

Qipang Pneumatic feeder High-precision air feeder punch conveying equipment
