Powerail Enclosed Conductor Rails System , Green PVC 35A to 240A

Quick Details

•Standard length; 4m or 6m.
•Current: 35A~240A
•Conductor material: copper
•Support spacing: 1.2m

Detailed Product Description

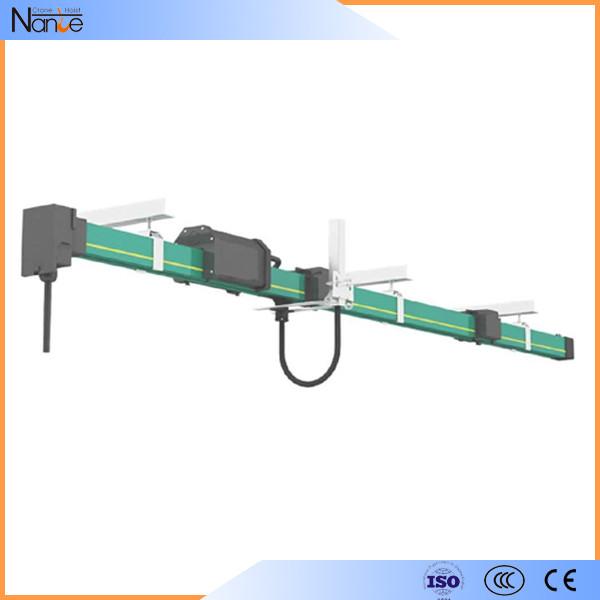

HFP series enclosed conductor rail system has been used successfully for many years and have been continuously improved and adapted in line with the latest state-of-the-art products. They are conductor lines in a rigid PVC housing with different copper cross sections for rated currents of 40-200 A. The current collectors, running in ball bearings, are guided by the housing. The mains power is transferred by spring-stored carbon brushes.

Design features
Compact arrangement, corrosion resistance and simple assembly are its essential features.

Housing
Color green, PVC housing for 4 conductors. Standard section 4 m.
Other sections are available.
The ground conductor is identified by international color code.
Phase reversing prevented by design of the collector and housing.

Couplings
Through PVC joint caps.

Feed Sets
Line feeds or end feeds.

End caps
The open ends of the powerail are closed by end caps for HFP.

Hangers
Standard brackets for powerail attachment to crane girders are available.
Powerail with sliding and fixpoint hangers.
Standard distance between suspension points for indoor and outdoor installations:1200mm.

Expansion during temperature fluctuation
The Expansion sections are required to compensate the different expansions between copper conductors and steel-or concrete structures,in varying temperatures without interrupting electrial power.

Current collectors
The current collectors are made of re-inforced polyester fiberglass,for high strength and light weight.
Spring loaded carbon brushes maintain uniform contact.
Connecting cables and hinged or flexible towing arms included.
Double Current collectors for transfer applications and higher amperage.

Powerail Enclosed Conductor Rails System
Technical Parameters
