PVC Multiple Conductor Rails , Insulated Conductor Bus Bar

Quick Details

• Standard length; 4m or 6m.

• Current: 35A~240A

• Conductor material: copper

• Support spacing: 1.2m

Detailed Product Description

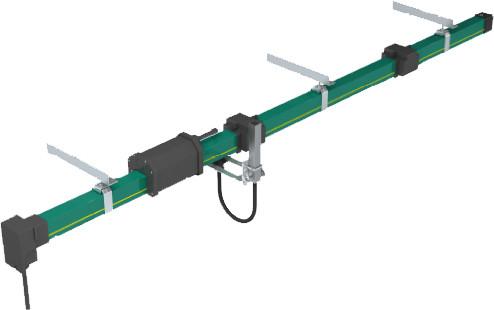

Overhead crane multipole conductor rails systems feature multiple conductors, typically copper strips, in an insulated enclosure. The current collector tracks are inside the enclosure, with the joining electric cable connected via an opening (slot) in the bottom of the enclosure. The bottom opening can be sealed with a neoprene sealing strip to keep debris and fumes out. The current collector is self-guided in these systems and only needs to be towed with a towing arm. Multiple copper conductors in an enclosure (aluminium or PVC housing) is available in 3 to 16 conductors and amperage capacities from 30 to 240.

Application

The ranges of applications of HFP Power Rail Enclosed Conductor System

1. Overhead and elongated tracks for cranes.
2. Electric hoists, electric tools, stacking systems.
3. Electric tools
4. Other applications for supplying power to moving power load.

Design features

Compact arrangement, corrosion resistance and simple assembly are its essential features.

Housing

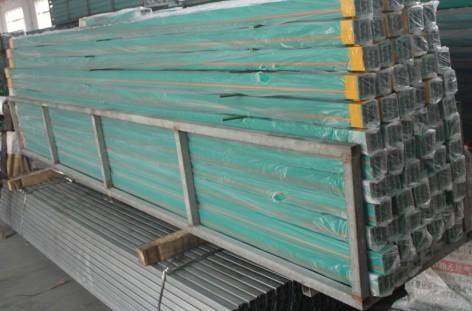

Color green, PVC housing for 4 conductors. Standard section 4 m.

Other sections are available.

The ground conductor is identified by international color code.

Phase reversing prevented by design of the collector and housing.

Anti-condensation sections

These sections are used for transfer of the Powerail to outdoor areas to avoid condensation.

The Powerail is not separated electrically.

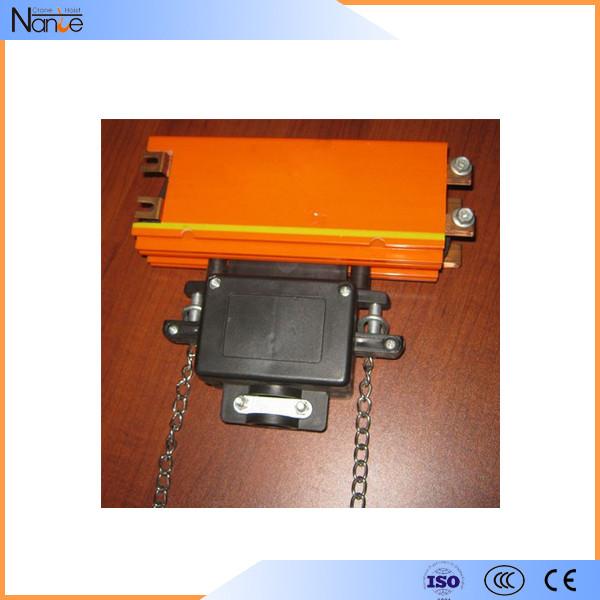

Current collectors

The current collectors are made of re-inforced polyester fiberglass,for high strength and light weight.

Spring loaded carbon brushes maintain uniform contact.

Connecting cables and hinged or flexible towing arms included.

Double Current collectors for transfer applications and higher amperage.

PVC Multiple Conductor Rails

HFP60 Technical Parameters
